S008090IA3SA1 is DC5V, 90LEDs/m and 11.11mm cutting length. S008144IB3SA1 is DC12V, 144LEDs/m and 6.94mm cutting length.
Side Emitting Addressable LED Strip Series

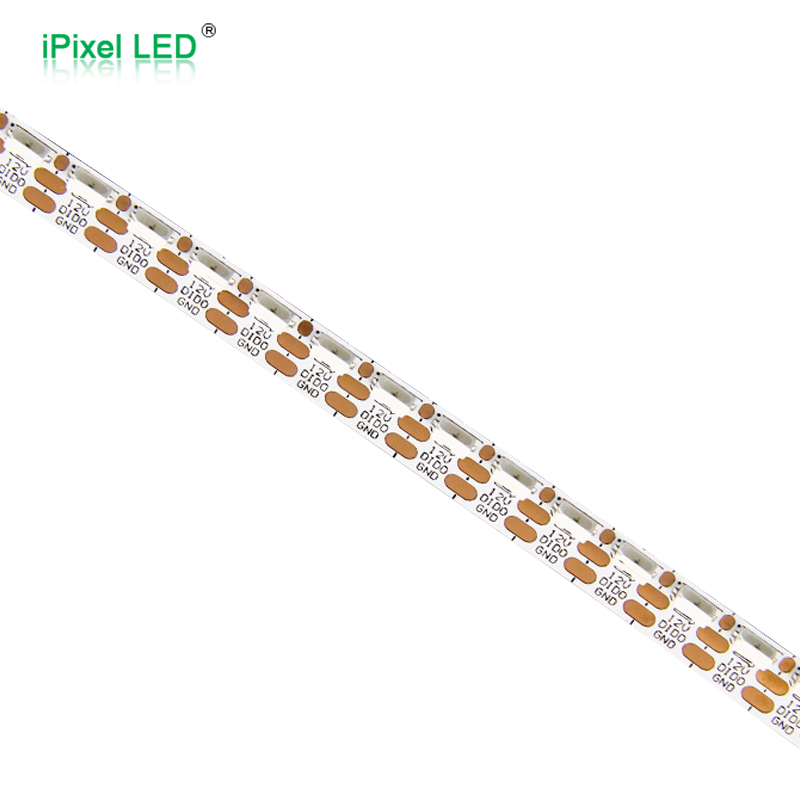

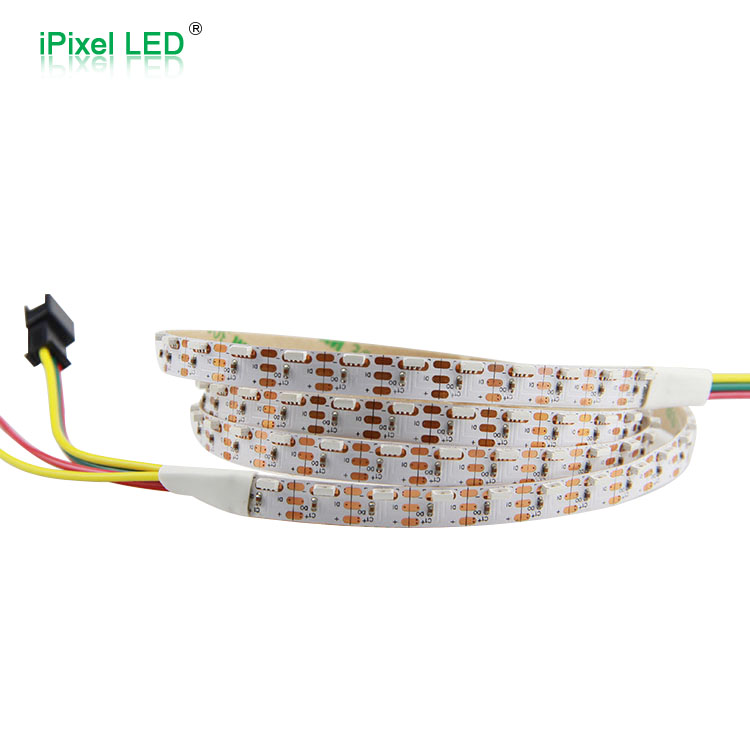

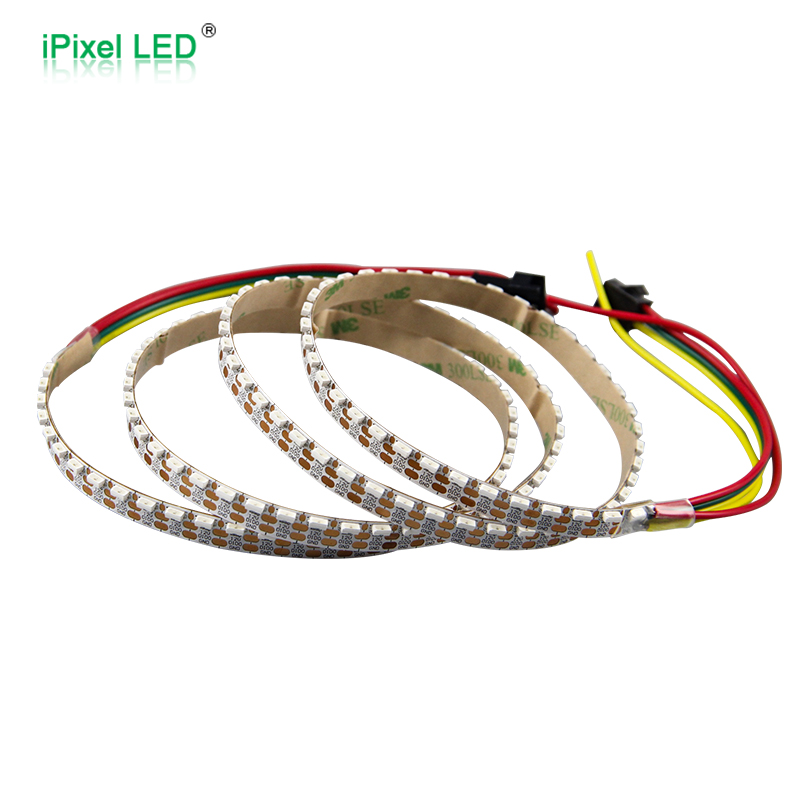

This Side-Emitting SK6812 Addressable RGB LED Strip Series is designed for edge-lighting and side-view RGB pixel effects where the light needs to emit from the side instead of the front surface. The series uses SMD4020 RGB side-emitting LEDs, SPI / SK6812 control, and 8mm flexible PCB, making it suitable for narrow side slots, acrylic edge lighting, signage, display fixtures, decorative outlines and customized dynamic RGB lighting projects.
The series includes DC5V 90LEDs/m and DC12V 144LEDs/m options. Both versions support individual pixel control and single-LED cutting. The DC5V version supports IP20 / IP65, while the DC12V version supports IP20 / IP64 / IP65 according to the datasheets.
DC5V/DC12V90/144LEDs/m8mm WidchRGBIP20/IP65
Overview & Key Features
Series Overview

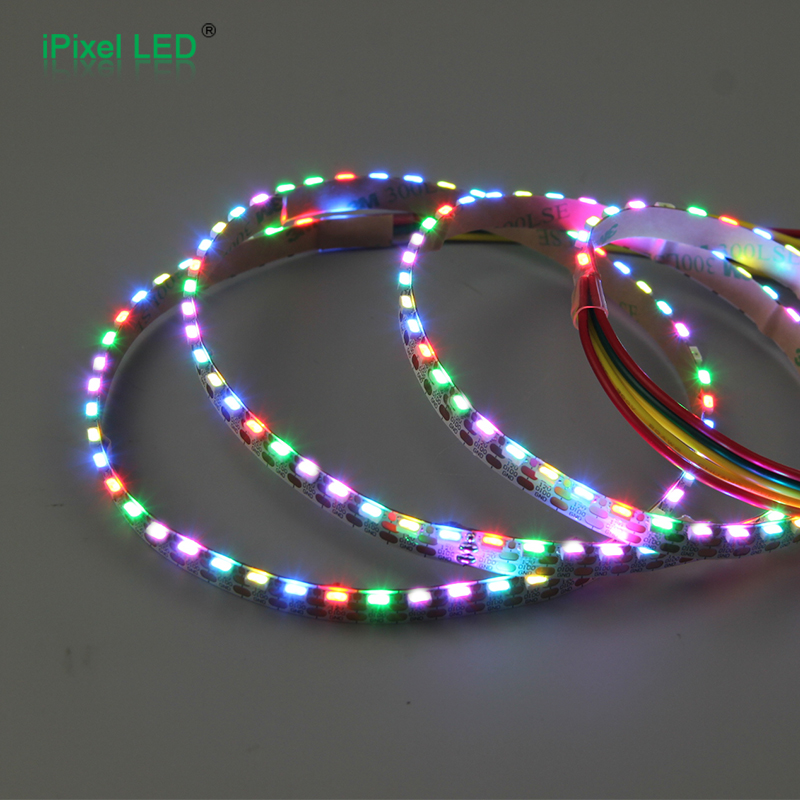

Unlike normal top-emitting addressable strips, this series uses side-emitting RGB LED chips to create a horizontal light output direction. This is useful when the strip is installed in a side groove, along an edge, inside a thin channel, or behind an acrylic / display structure where front-emitting LEDs would not produce the right lighting effect.
The S008090IA3SA1 is a DC5V 90LEDs/m version with 11.11mm cutting length. The S008144IB3SA1 is a DC12V 144LEDs/m high-density version with 6.94mm cutting length. The DC12V version also uses 3 oz copper PCB according to the product description, which is useful for higher-density and higher-current layout.
Key Features
- Side-emitting addressable RGB LED strip
- SMD4020 RGB side-view LED package
- SPI / SK6812 digital control
- DC5V and DC12V options
- 90LEDs/m and 144LEDs/m versions
- 90 pixels/m and 144 pixels/m
- Single-LED cutting unit
- 8mm PCB width
- White PCB only
- 3-pin JST SM connector
- 120° beam angle
- IP20 / IP64 / IP65 options depending on model
- Suitable for edge lighting, side-slot installation, acrylic lighting, signage and dynamic RGB effects
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Control | PCB Width | CCT | Cut | Lumen/m | Version |
|---|---|---|---|---|---|---|---|---|---|
| S008090IA3SA1 | 90 | DC5V | 16W | SPI / SK6812 | 8mm | RGB | 11.11mm / 1LED | R:79 / G:209 / B:45lm | Side-emitting SMD4020 RGB, 90 pixels/m |
| S008144IB3SA1 | 144 | DC12V | 16W | SPI / SK6812 | 8mm | RGB | 6.94mm / 1LED | R:95 / G:313 / B:77lm | Side-emitting SMD4020 RGB, 144 pixels/m |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need DC5V side-emitting RGB pixel strip | S008090IA3SA1 — DC5V, 90LEDs/m, 90 pixels/m. |
| Need higher-density side-emitting RGB effect | S008144IB3SA1 — 144LEDs/m, 144 pixels/m, shorter 6.94mm cutting length. |
| Need shorter cutting unit | S008144IB3SA1 — cuttable every 6.94mm / 1LED. |
| Need lower pixel density and wider pixel spacing | S008090IA3SA1 — cuttable every 11.11mm / 1LED. |
| Need DC12V system compatibility | S008144IB3SA1 — DC12V input. |
| Need IP64 option | S008144IB3SA1 — datasheet lists IP20 / IP64 / IP65. |
| Need IP65 silicone tube waterproof version | Both models can be selected according to datasheet IP options; confirm final structure before order. |
| Need edge-lighting or side-slot installation | Both models are suitable; select by voltage and pixel density. |
| Need brighter RGB output per meter | S008144IB3SA1 — higher listed RGB lumen output. |

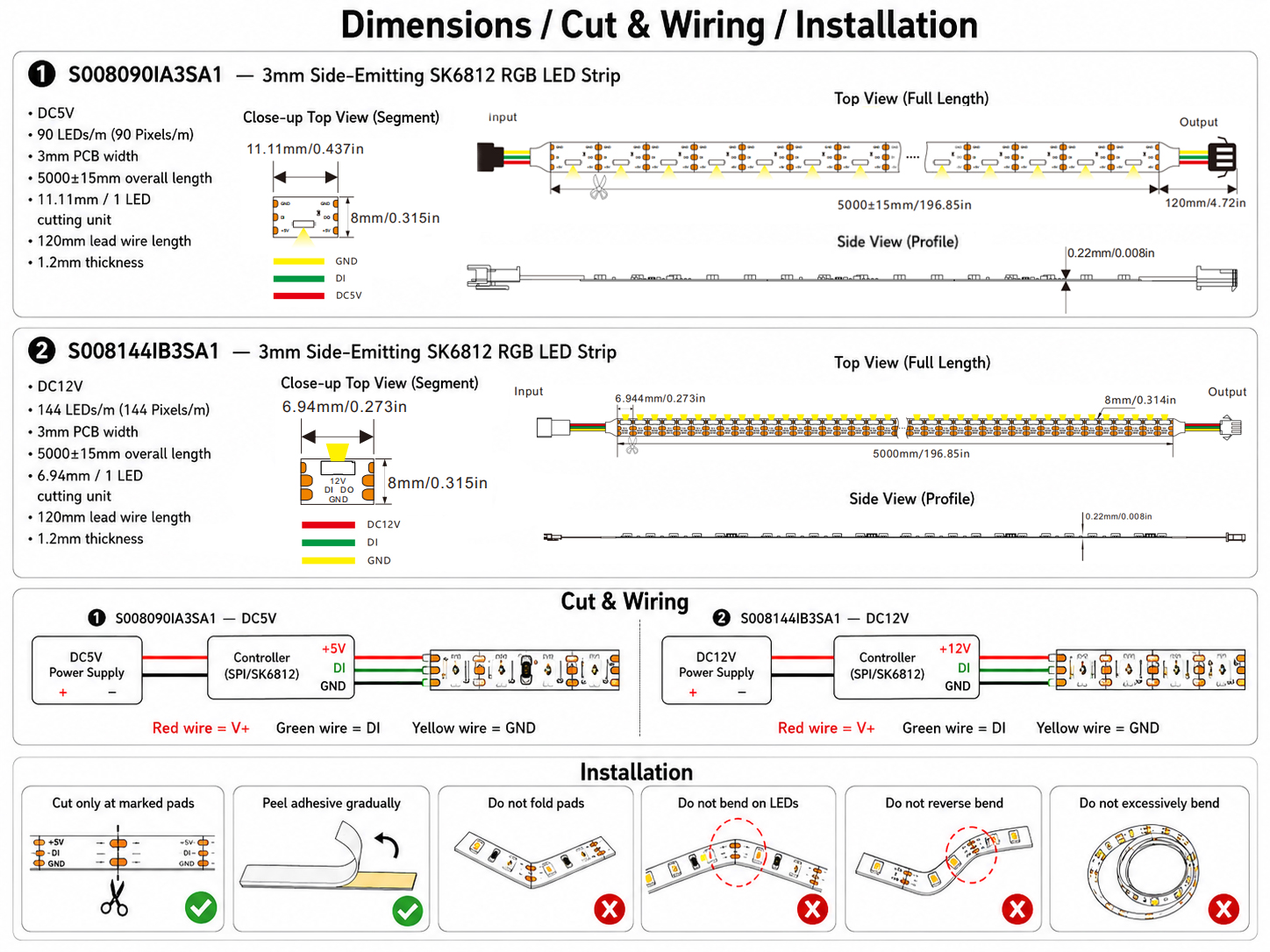

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC5V / DC12V | DC5V for S008090IA3SA1; DC12V for S008144IB3SA1. |
| LED Type | SMD4020 side-emitting RGB | Side-view LED package for edge-lighting and side-slot installation. |
| ColorType | RGB | Programmable red, green and blue color mixing. |
| Color Range | RGB wavelength range | R:615–630nm, G:520–535nm, B:450–460nm according to datasheets. |
| PCB Width | 8mm | Both models use 8mm PCB width. |
| Power | 16W/m | Both models are listed as 16W/m. |
| Control | SPI / SK6812 | Controller must match SK6812 protocol, voltage and total pixel quantity. |
| IPRating | IP20 / IP64 / IP65 | S008090IA3SA1: IP20 / IP65; S008144IB3SA1: IP20 / IP64 / IP65. |
| Length | 5m standard / custom length | Datasheet drawings show 5000mm full length; confirm reel length before order. |
| Connector | 3-pin JST SM connector / bare wire / custom connector | Standard 3-pin JST SM connector is described in the files. |
| Mounting | 3M adhesive tape / aluminum profile / silicone tube / clips | Match mounting method with side-emitting direction and waterproof structure. |
| Packing | Reel / antistatic bag / carton / OEM packing | Datasheets show reel, antistatic bag and carton packing. |
