The D01 is designed for single-color, constant-voltage LED strips, rigid LED bars and similar 12V or 24V LED lighting products.
D01 30A RF Knob LED Dimmer
D01 30A RF Knob LED Dimmer

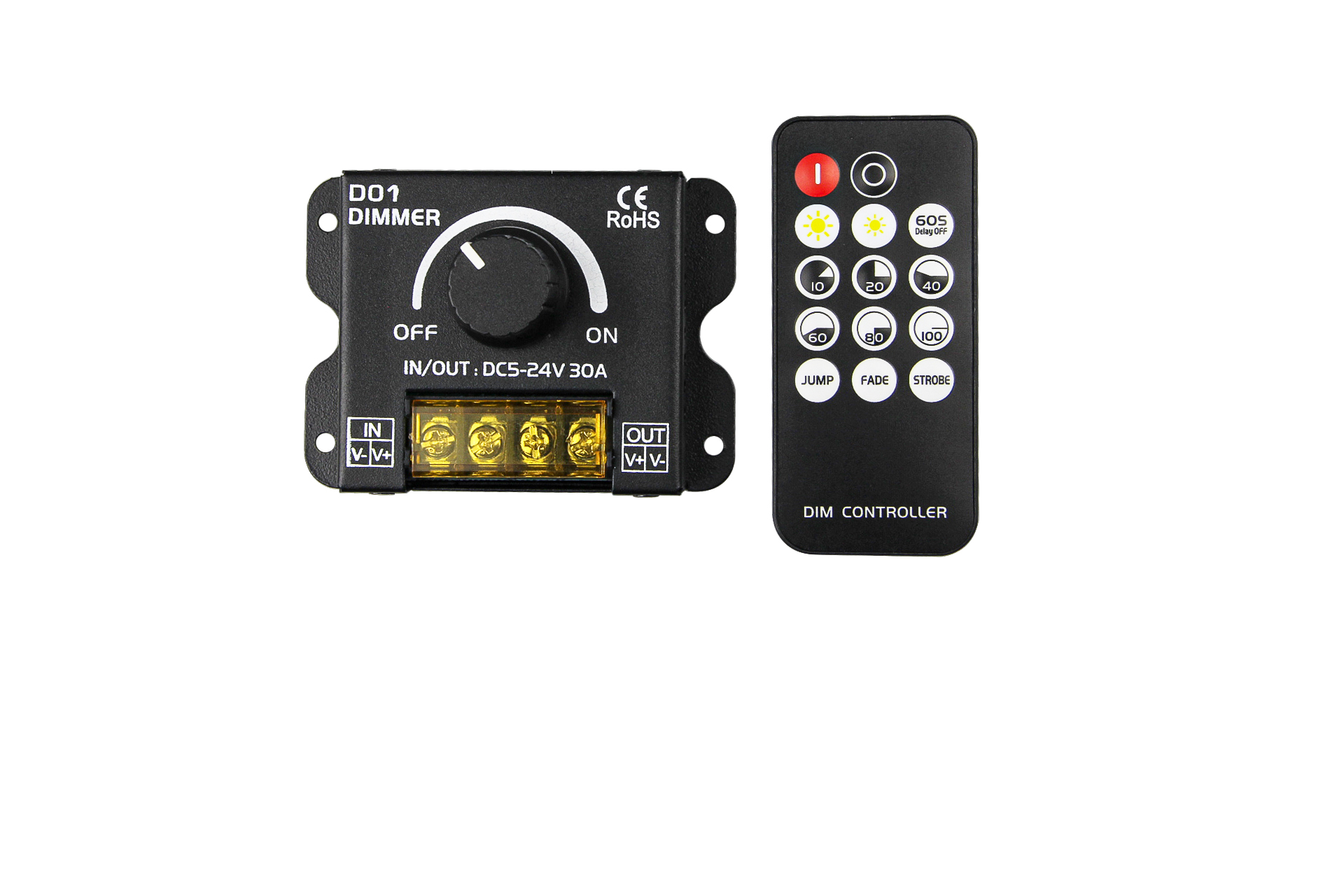

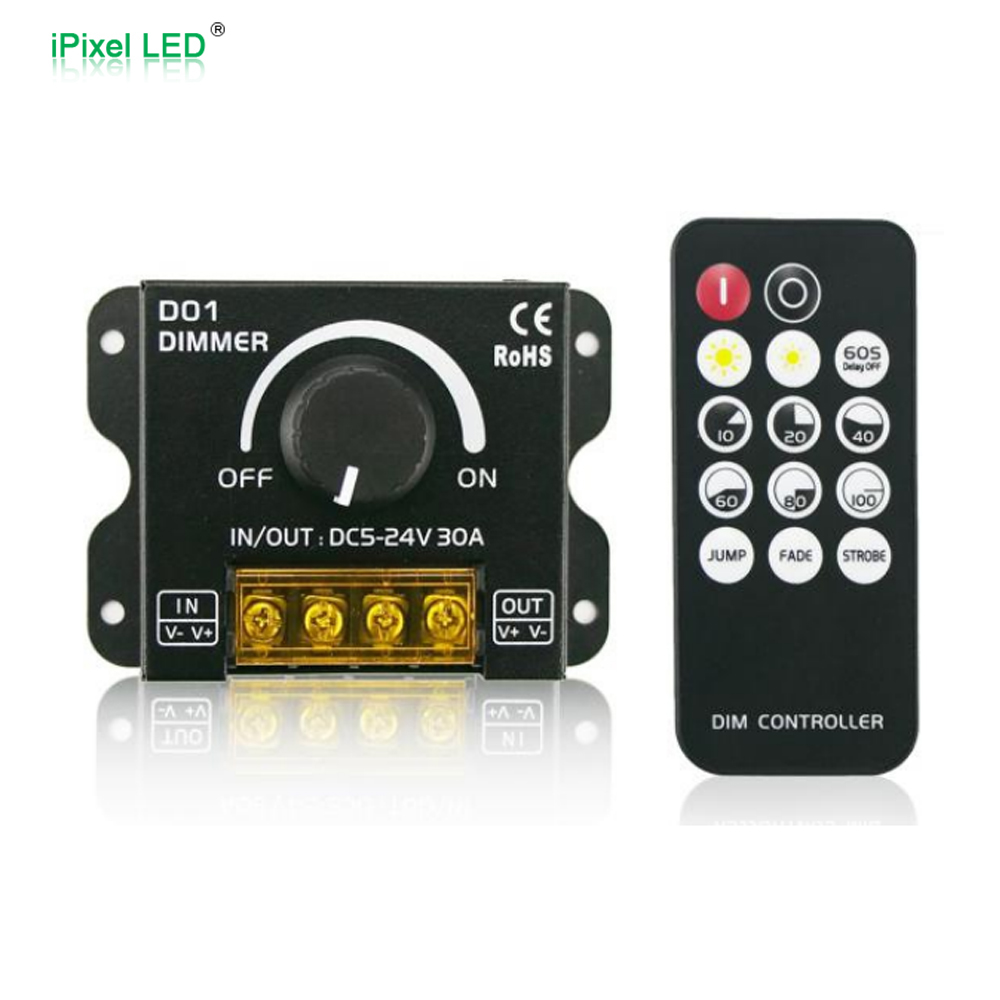

The D01 is a single-channel PWM dimmer designed for high-power, constant-voltage LED lighting systems. Users can adjust brightness continuously with the rotary knob or operate the lighting remotely using the supplied 14-key RF controller.

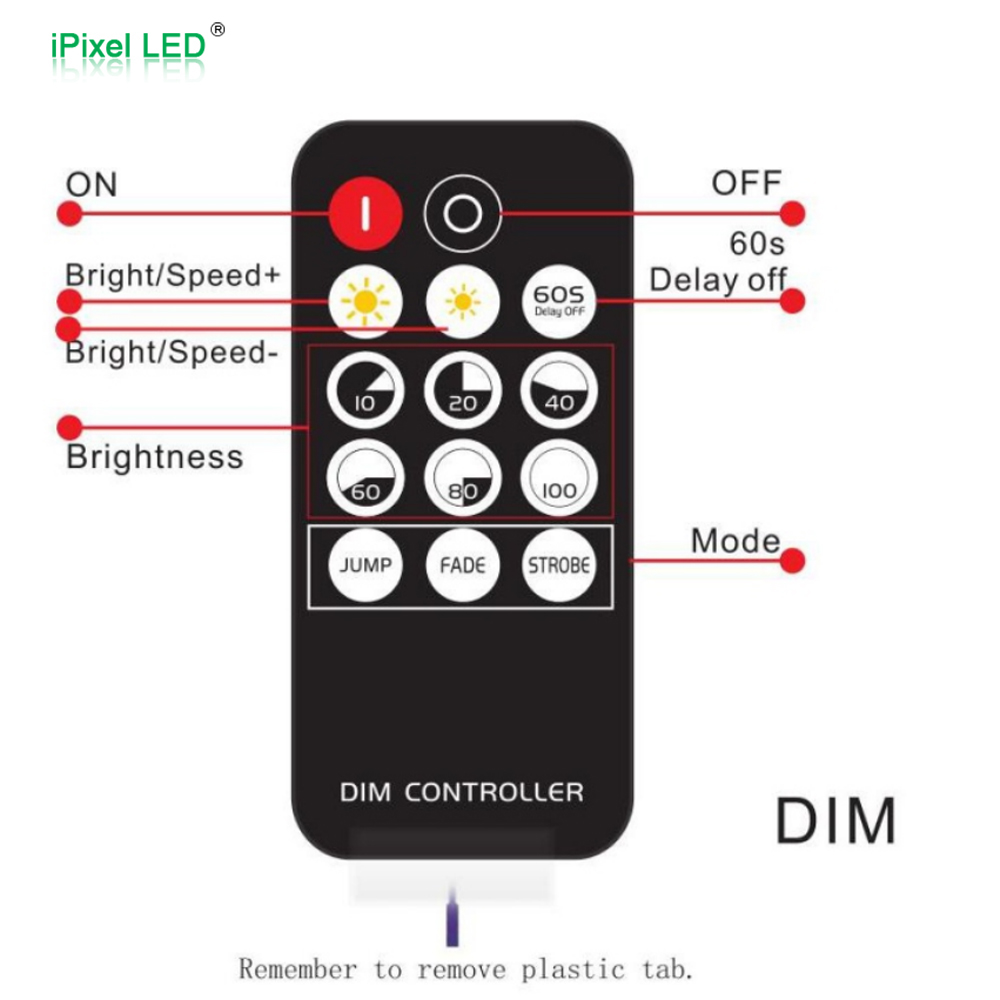

The remote provides on/off control, preset brightness levels, dynamic lighting modes and a 60-second delay-off function. Screw-terminal input and output connections make the controller suitable for LED strips, rigid LED bars and other single-color low-voltage lighting products.
The supplied manual lists a DC 12–24V input, one-channel output, maximum total current below 30A, and a remote-control distance of approximately 10–15 metres.
Product Specification Table
| Model No | Channels | Controller Type | Input Voltage | Output Channels | Maximum Output Current | Maximum Output Power |
|---|---|---|---|---|---|---|
| D01 | 2 Channels | Constant-Voltage PWM Dimmer | DC12–24V | 1 Channel | <30A Total | 12V: <360W; 24V: <720W |
Common Specifications
| Parameter | Specification |
|---|---|
| Controller Type | Constant-Voltage PWM LED Controller |
| Compatible LED Type | Single-Color LED Strips and LED Light Bars |
| Control Methods | Rotary Knob and RF Remote |
| Dimming Method | Stepless PWM Dimming |
| Preset Brightness | 10% / 20% / 40% / 60% / 80% / 100% |
| Remote Functions | On/Off, Brightness, Dynamic Modes and 60-Second Delay-Off |
| Remote Distance | 10–15m |
| Input and Output Connection | Screw Terminals |
| Standby Power Consumption | <1W |
| Operating Temperature | -20°C to +60°C |

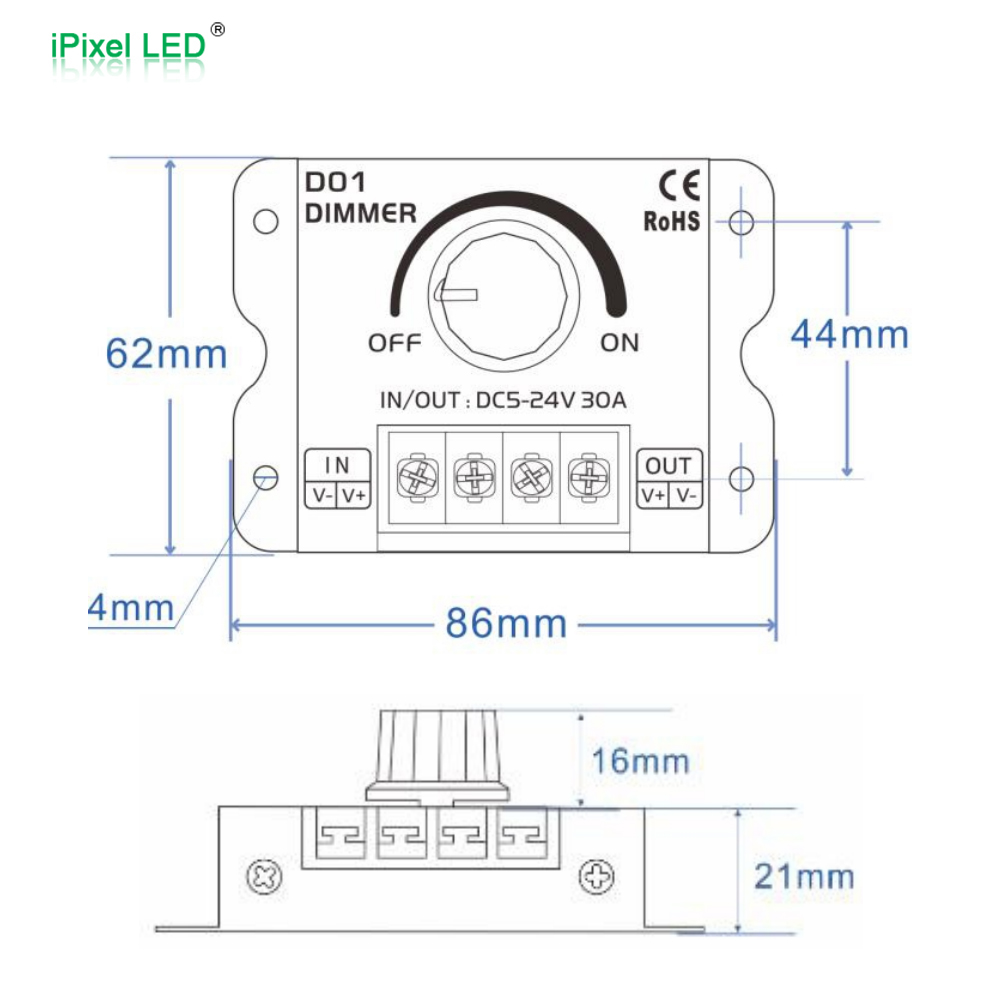

| Controller Size | 86 × 62 × 36mm |
| Controller Net Weight | 98g |
FAQ
Yes. A 12V or 24V constant-voltage power supply is required. The power supply voltage must match the voltage of the LED lighting product.
No. The D01 is a low-voltage DC controller and must be installed after a compatible LED power supply.
The manual lists a maximum total output current below 30A, corresponding to less than 360W at 12V or less than 720W at 24V. For continuous operation, additional capacity should be reserved and the cable, terminals and heat dissipation must be evaluated.
