XS-92 RF Touch Music-Sync LED Controller Series
XS-92 RF Touch Music-Sync LED Controller Series
The XS-92 series combines an RF full-touch remote with a high-power metal-housing PWM receiver. Multiple controller versions are available for tunable-white, RGB, RGBW and RGB+CCT constant-voltage LED strips.
Each receiver includes Signal IN and Signal OUT ports, allowing multiple controllers to be connected by RJ45 cables and operate with synchronized color, dynamic and music-responsive effects.
Product Series Specification
| Model No | Output Channels | Compatible LED Type | Input Voltage | Manual-Listed Output | Product Size | Net Weight |
|---|---|---|---|---|---|---|

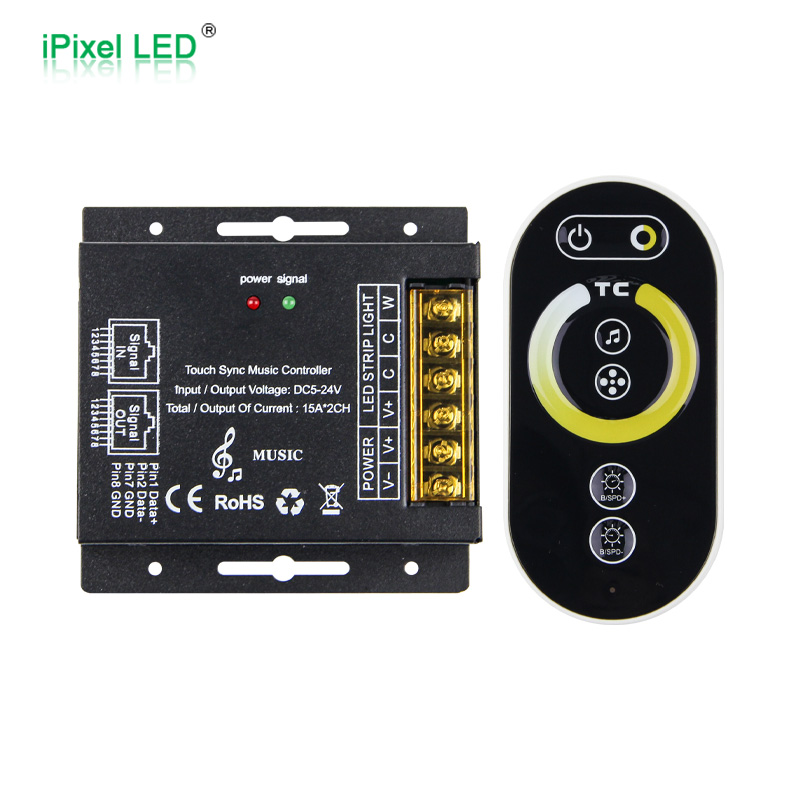

| XS-92-02 | 2CH | Tunable-White CCT LED Strip | DC12–24V | 15A × 2CH; 12V <360W; 24V <720W | 91 × 91 × 24mm | 270g |

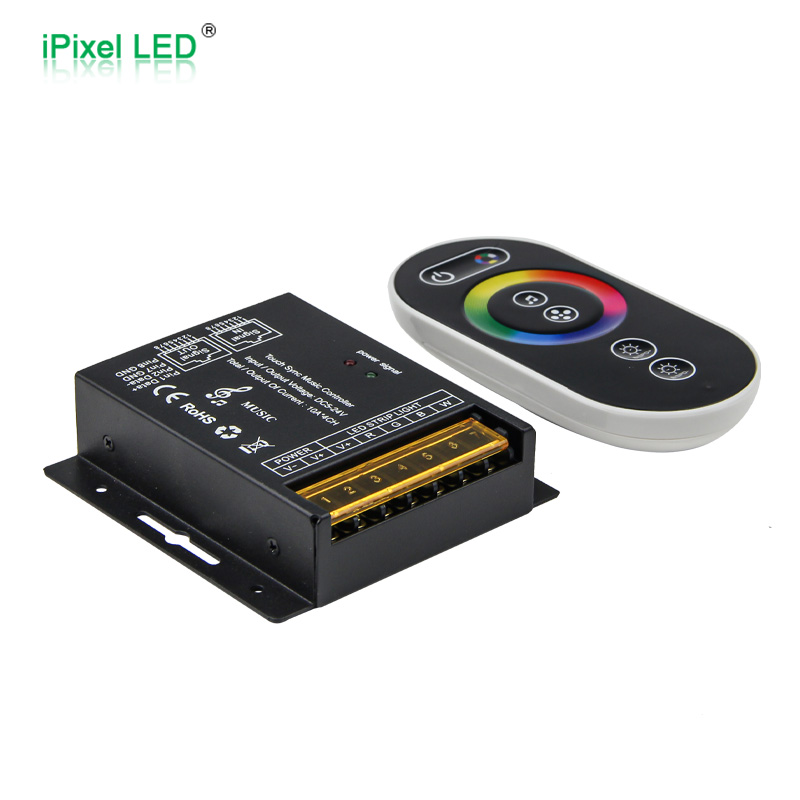

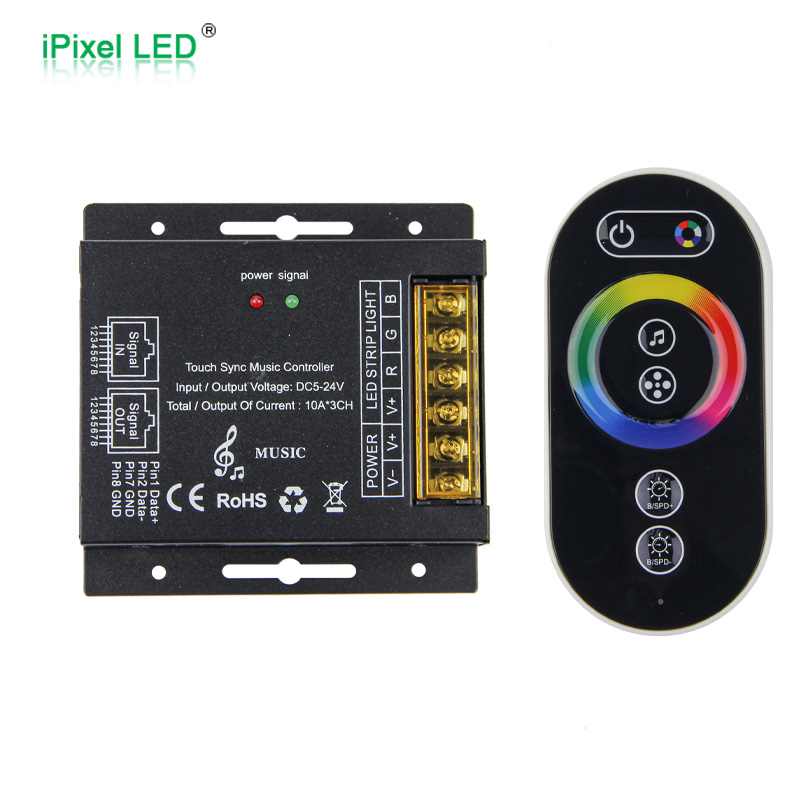

| XS-92-03 | 3CH | RGB LED Strip | DC5–24V | 15A × 3CH; 5V <150W; 12V <480W; 24V <960W | 91 × 91 × 24mm | 270g |
| XS-92-04 | 4CH | RGBW LED Strip | DC5–24V | 6A/C15A × 4CH; 5V <200W; 12V <480W; 24V <960Whannel, 24A Total | 91 × 91 × 24mm | 275g |

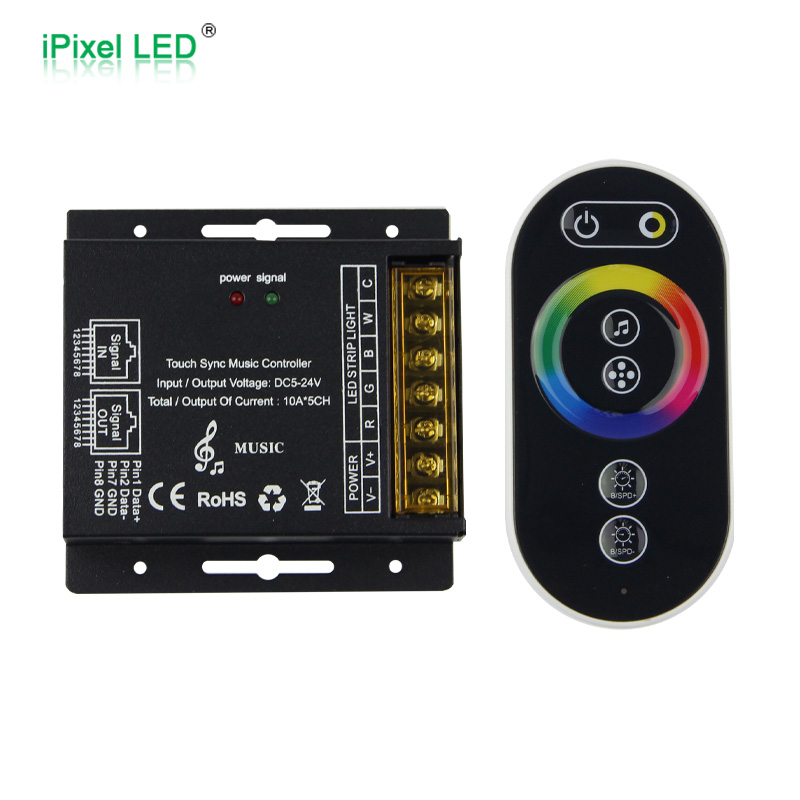

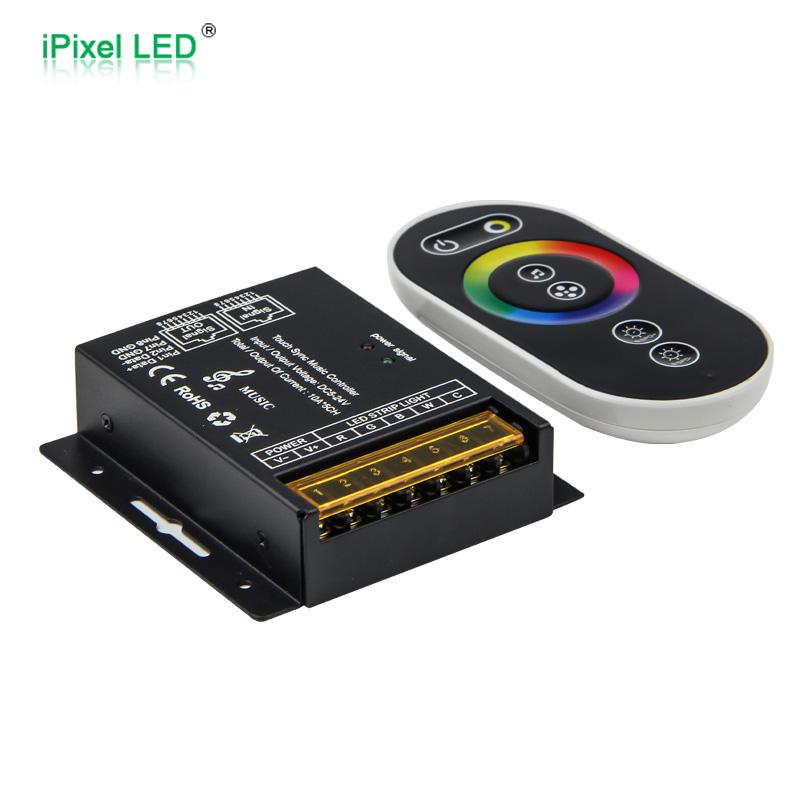

| XS-92-05 | 5CH | RGB+CCT LED Strip | DC5–24V | 10A × 5CH; 5V <250W; 12V <600W; 24V <1200W | 91 × 91 × 24mm | 275g |
Common Specifications
| Parameter | Specification |
|---|---|
| Controller Type | Constant-Voltage PWM LED Controller |
| Control Method | RF Wireless Full-Touch Remote |
| Synchronization | RJ45 Signal IN / Signal OUT Cascade |
| Functions | Static Color, Brightness, Dynamic Modes, Speed and Music Synchronization |
| Dynamic Effects | Gradient, Jump, Flash and Music Modes |
| Brightness Adjustment | 10 Levels |
| Speed Adjustment | 10 Levels |
| Music Sensitivity | 5 Levels |
| Operating Temperature | -20°C to +60°C |
| Output Connection | Common Positive |
| Status Indicators | Power and Signal Indicators |
| Package Size | 190 × 125 × 34mm |
| Installation Environment | Dry Indoor Location |
FAQ
The RJ45 Signal IN and Signal OUT ports allow several XS-92 receivers to be connected in a cascade so that separate LED lighting groups can change color and effects synchronously.
No. The RJ45 connector is used for the controller’s proprietary synchronization signal. It should not be connected directly to an Ethernet switch, router or standard DMX512 system unless specifically confirmed.
Normally, each high-power receiver and LED load should be connected to a correctly sized constant-voltage power supply. The RJ45 connection is primarily for synchronization signals, not for powering the full LED load.
