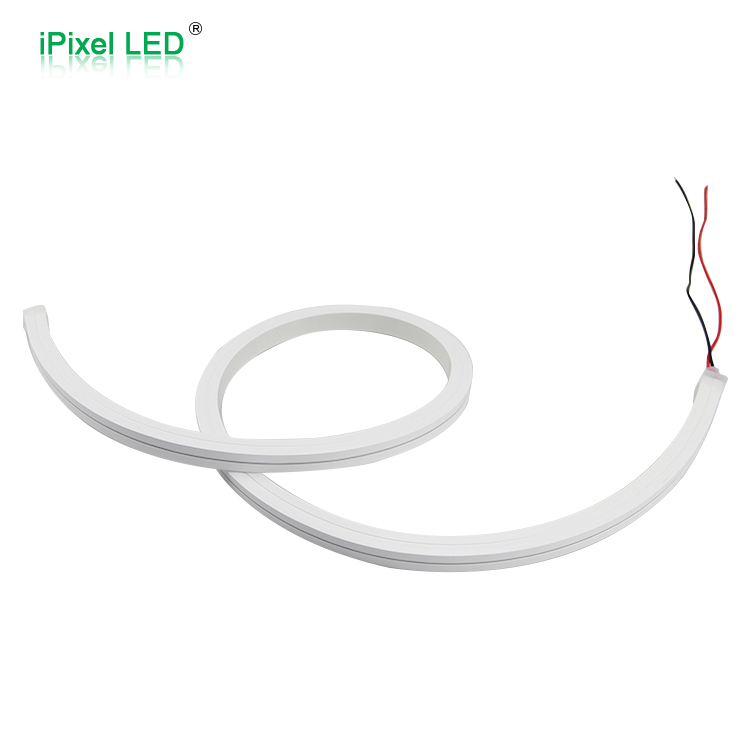

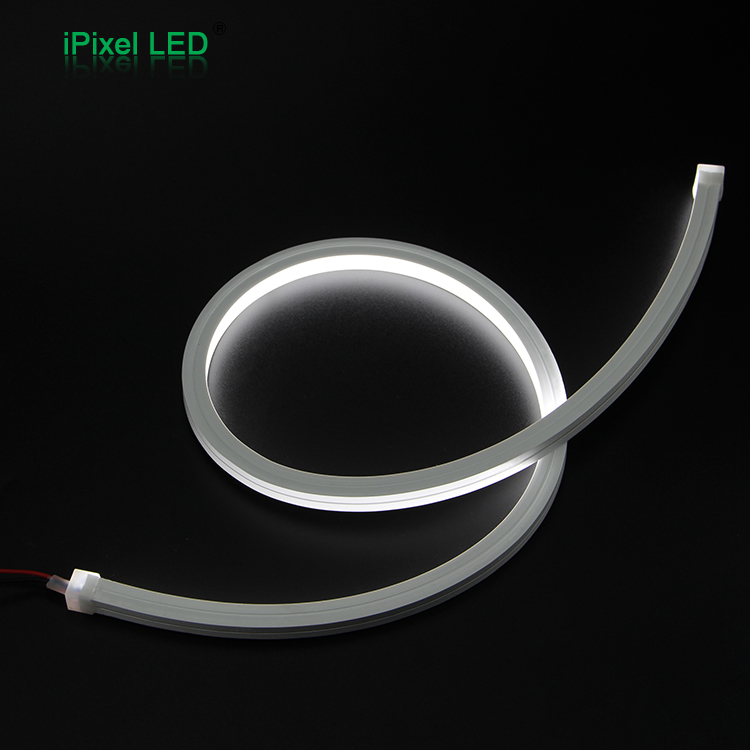

N1212 Single-Sided Neon Flex Series

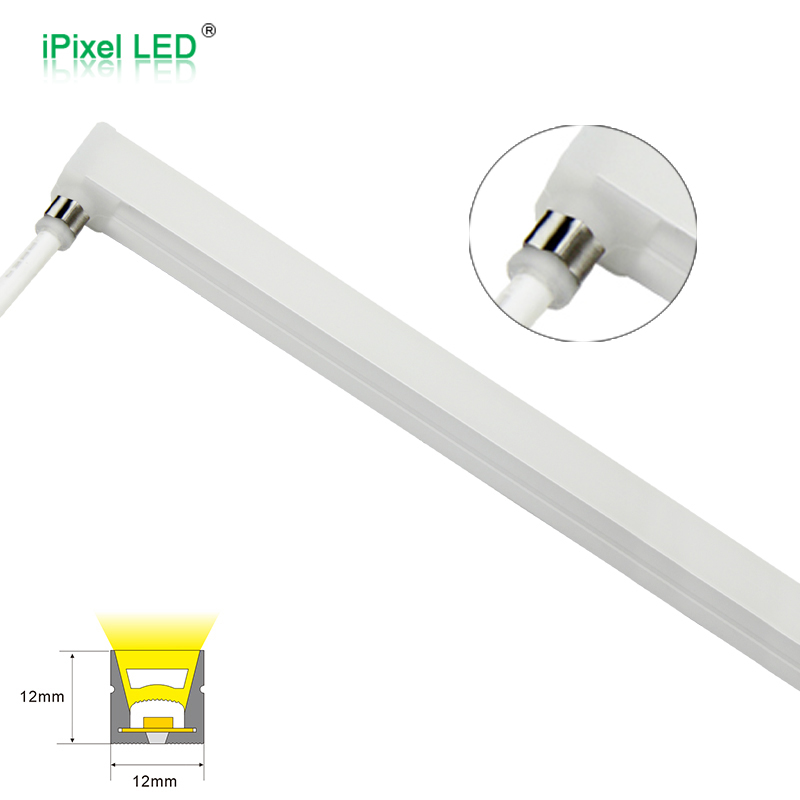

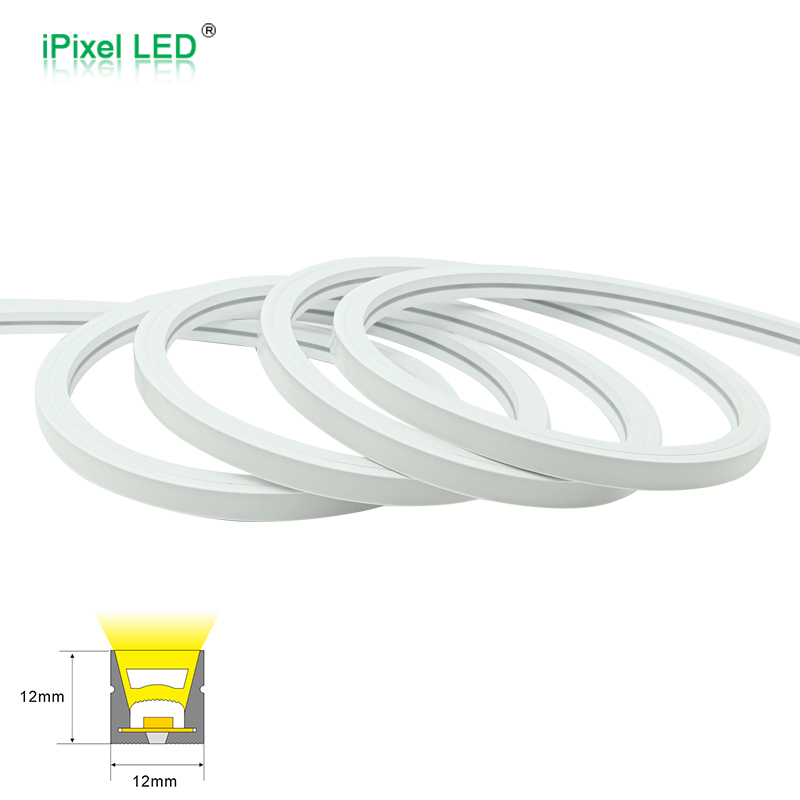

This N1212 Single-Sided Neon Flex Series is designed for compact architectural contour lighting, signboard lighting, indoor/outdoor decorative lighting, and linear outline applications. The series uses a 12×12mm single-sided positive glowing silicone neon structure, with soft dotless surface illumination and up/down bending capability.
The series includes DC12V and DC24V versions. Both models use SMD2835 LEDs, 120 LEDs/m, 10W/m, CRI ≥90, IP67 protection, and white CCT options of 3000K / 4000K / 6500K. The main difference is voltage, cutting length, and maximum run length.
DC24V120EDs/m12mm WdichSingle ColorIP67
Overview & Key Features
Series Overview
The N012120BB1LZ(N1212) is the DC12V version, with 25mm cutting length and 10m maximum length. It is suitable for projects that require shorter cutting intervals, compact installation, or existing DC12V power systems.
The N012120BC1LZ(N1212) is the DC24V version, with 50mm cutting length and 15m maximum length. It is more suitable for longer runs, lower current, and better voltage-drop control in architectural or signage applications.
Key Features
- 12×12mm single-sided neon flex series
- Positive glowing top-view structure
- DC12V / DC24V options
- SMD2835 LED source
- 120 LEDs/m high-density layout
- 10W/m power rating
- CRI ≥90
- W: 540lm/m listed brightness
- 3000K / 4000K / 6500K CCT options
- IP67 protection for indoor/outdoor use
- UL / CE / RoHS listed in the specification
- Soft silicone diffuser, uniform light output, no visible spots
- Up/down bending structure
- Recommended bending radius shown as R ≥50mm in installation page
- 5m standard length, custom length available

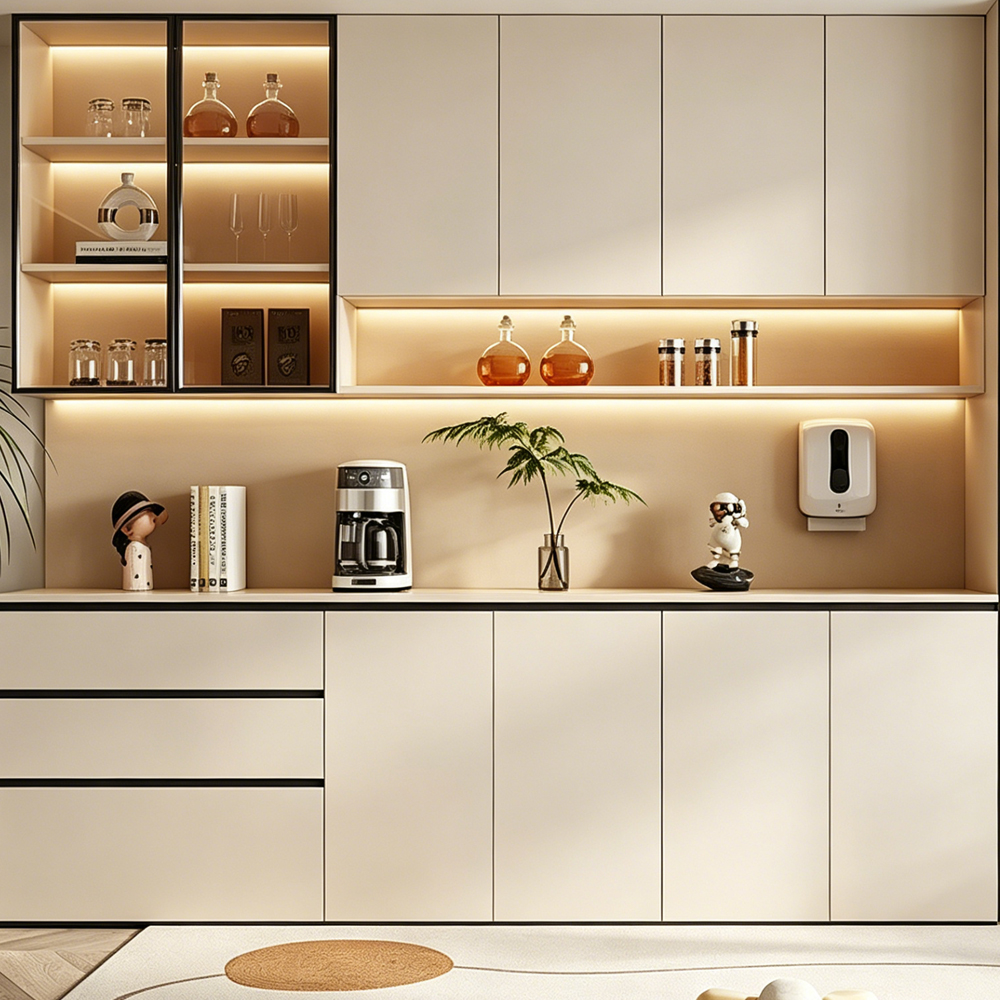

- Suitable for signboard lighting, architectural contour lighting, indoor/outdoor decorative lighting
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Control | PCB Width | CCT | Cut | Lumen/m | Version |
|---|---|---|---|---|---|---|---|---|---|
| N012120BB1LZ(N1212) | 120 | DC12V | 10W/m | Constant Voltage | 12×12mm profile | 3000K / 4000K / 6500K | 25mm | W: 540lm/m | N1212 Single-Sided Neon, DC12V, max 10m |
| N012120BC1LZ(N1212) | 120 | DC24V | 10W/m | Constant Voltage | 12×12mm profile | 3000K / 4000K / 6500K | 50mm | W: 540lm/m | N1212 Single-Sided Neon, DC24V, max 15m |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need DC12V system compatibility | N012120BB1LZ(N1212) |
| Need DC24V system compatibility | N012120BC1LZ(N1212) |
| Need shorter cutting length | N012120BB1LZ(N1212) — 25mm cut |
| Need longer maximum run length | N012120BC1LZ(N1212) — max 15m |
| Need lower current and better voltage-drop control | N012120BC1LZ(N1212) |
| Need compact 12×12mm neon profile | Both models |
| Need IP67 indoor/outdoor use | Both models |
| Need 3000K / 4000K / 6500K white CCT | Both models |
| Need architectural contour or signage lighting | Both models |
| Need lengths over 5m | Use power feeding from both ends; DC24V is preferred for longer layouts |

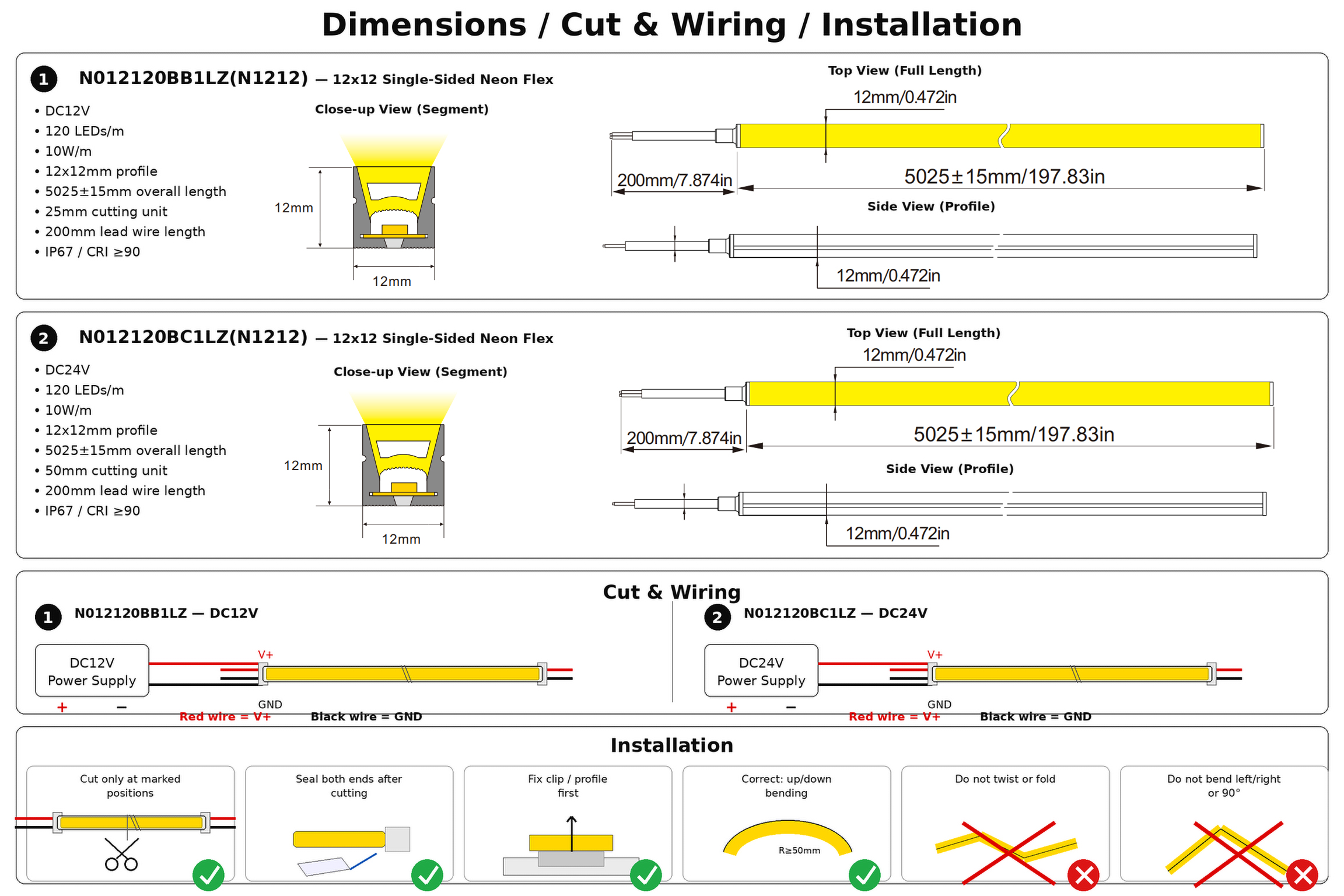

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC12V / DC24V | DC12V: N012120BB1LZ; DC24V: N012120BC1LZ |
| LED Type | SMD2835 | 120 LEDs/m |
| ColorType | Single color white | White CCT options |
| Color Range | 3000K / 4000K / 6500K | Final CCT should be confirmed before order |
| PCB Width | 12×12mm profile | For neon products, this refers to the silicone profile size |
| Power | 10W/m | Same for both models |
| Control | Constant voltage | Compatible with DC constant-voltage power supply or dimmer |
| IPRating | IP67 | Suitable for indoor/outdoor wet locations, not for immersion |
| Length | 5025±15mm standard / custom length | Max length: DC12V 10m; DC24V 15m |
| Connector | Straight outlet / side outlet / bottom outlet / 2PIN connector | Different end-cap outlet structures are shown in the specification |
| Mounting | Buckle / aluminum profile / shapable mounting slot | Buckle size L30×W14.2×H14mm; aluminum profile L1000×W14.2×H14mm |
| Packing | Carton / wooden case / custom packing | Packaging table shows 20m and 80m carton options; wooden case can be customized |
Related Items
Outdoor Shade Lighting – UV/Waterproof Reliability & Fast Assembly
Range Hood Lighting – Heat/Grease/Chemical Resistance & Safe Integration
Slot Machine Lighting – EMI/Signal Integrity, Serviceable Mounting & Long-Run Stability
Arcade & Gaming Machine Lighting – SPI RGB/Addressable Strips, Robust Solder Pads & UL + CE Compliance
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
Yes. Both models use a 12×12mm profile, 120 LEDs/m, 10W/m, and W:540lm/m brightness.
N012120BB1LZ(N1212), because it has a 25mm cutting length.
N012120BC1LZ(N1212), because the DC24V version supports up to 15m maximum length according to the specification.
