DE2003 is suitable for LED strips up to 20mm width, including wide LED strips or double-row LED strips for high-brightness lighting applications.

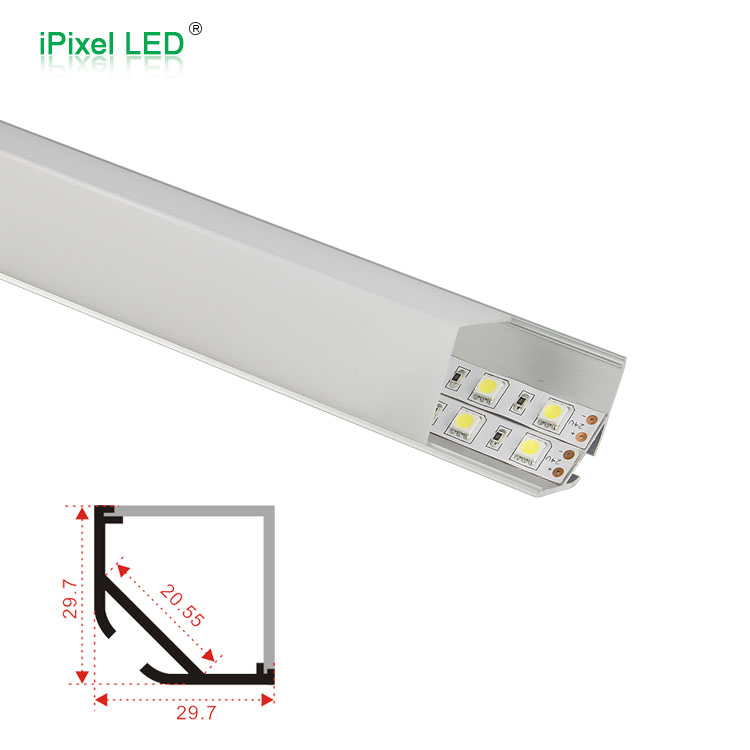

DE2003 Aluminum LED Profile
Material: AL6063-T5
Surface: Anodized
PC Cover: Diffuser/Transparent
LED Strip width: 20mm(Max)
Recommend LED Strip type: 2x60leds/m (5050) 2x120leds/m(3528)

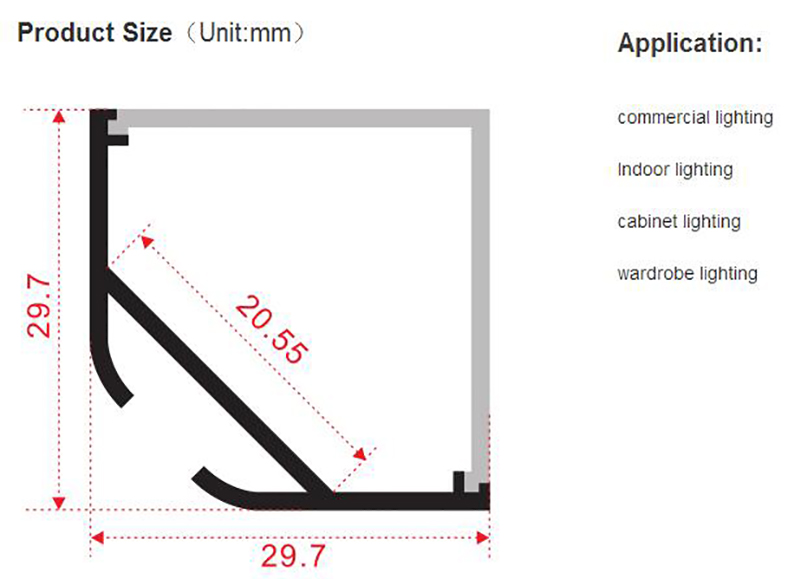

Bar Size: W 30xH 30mm
Bar Length: 100-3000mm
Product Description
1. This LED Channel System includes our high quality aluminum channel and compatible frosted diffuser.
2. Suitable for custom high brightness fixtures.
3. Creating a professional LED strip light installation has never been easier.
4. Comes in 100cm segments and can be cut to any length.
5. 30 mm wide by 30 mm high.
6. Includes aluminum channel and diffuser.
7. Perfect for mounting LED Strip Light up to 20 mm in width.
8. The frosted diffuser protects LED strip light from the elements and softens lighting effects.

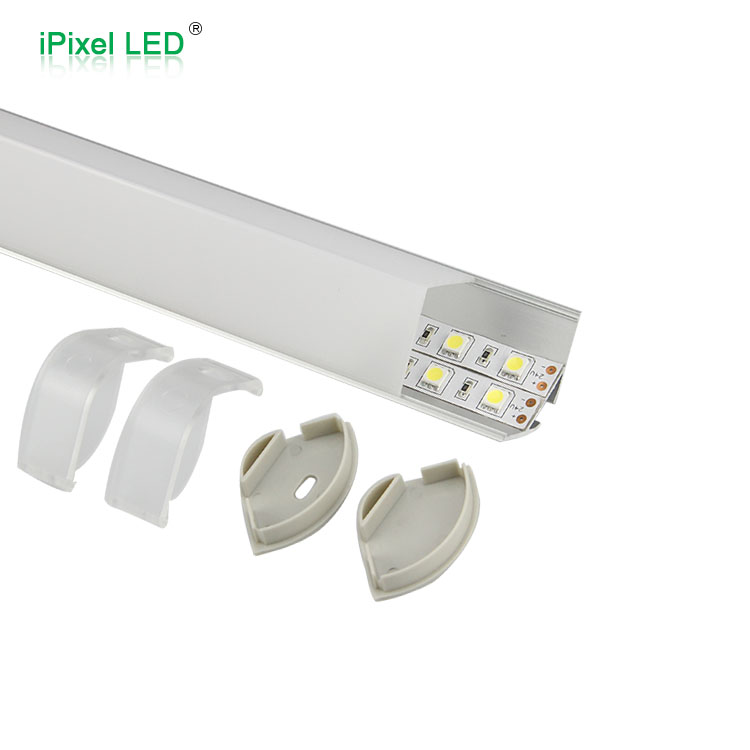

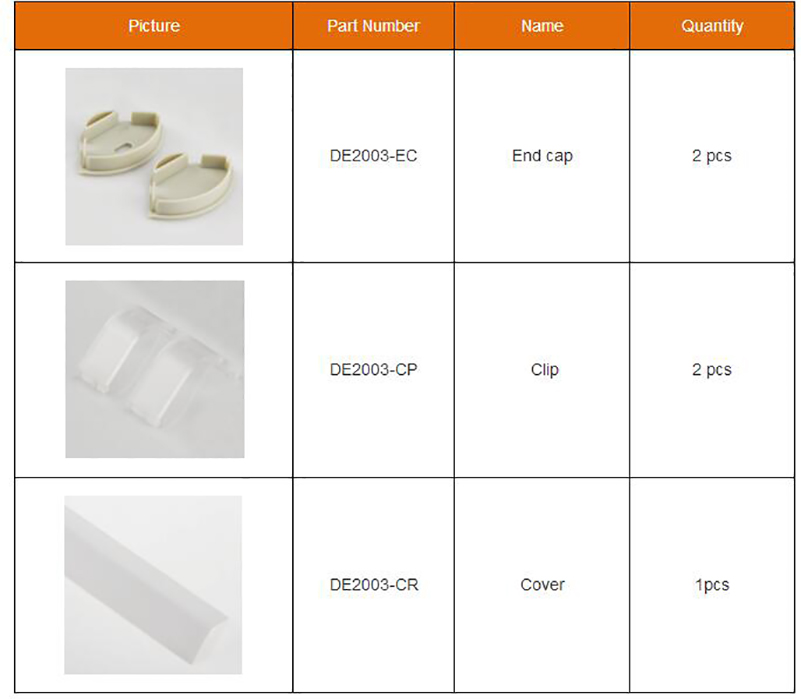

Accessories：
Related Items
Cabinet & Furniture Lighting – Dotless, Tight Tolerance & Easy Installation
Industrial Cabinet Lighting – High-Temp, Oil/Solvent Resistance & Flicker-Free Operation
Slot Machine Lighting – EMI/Signal Integrity, Serviceable Mounting & Long-Run Stability
Refrigeration Lighting – Low-temp, Condensation & Cleaning Reliability
FAQ
DE2003 uses a 30 × 30mm corner / angled structure, which helps direct the light outward and create a clean linear lighting effect for corner installations.
Yes. DE2003 can be matched with frosted, diffused, or transparent PC covers to protect the LED strip and soften the lighting effect.
DE2003 is commonly used for cabinet lighting, display lighting, commercial lighting, indoor corner lighting, and high-brightness linear lighting, especially where angled light output is required.
