It is used for equipment wiring, terminal block connection, control box wiring, and customized LED assembly.
Terminal Cable Series
Terminal Cable Series
The Terminal Cable Series is designed for equipment internal wiring, terminal connection, control box wiring, cabinet lighting wiring, and customized LED assembly.

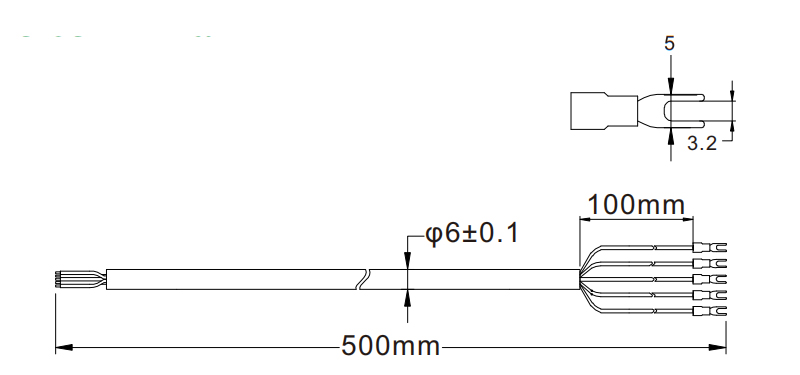

The listed product is an Insulated Female Spade Terminal Cable with PVC insulation, naked copper conductor, 22AWG wire, and crimp terminal tab 3.2mm. The line order is Black, Green, Red, Blue, White.
Product Series Specification Matrix
| Product Name | Core | Type | Plug Model | P/N | Wire Gauge | Length | Line Order | Notes |
|---|---|---|---|---|---|---|---|---|
| Insulated Female Spade Terminal Cable | 5-core | Terminal Cable | Crimp Terminal, Tab 3.2mm | DLLJ-00500-V5 | 22AWG | 500mm | Black, Green, Red, Blue, White | For equipment internal wiring |
FAQ
Yes. Terminal size, wire length, wire gauge, wire color, and terminal type can be customized.
No. It is mainly for internal or protected wiring.
Because it is a finished cable assembly with a crimped terminal.
