RT1809 versions are positioned for improved reliability and voltage-drop performance. WS2811 versions are common SPI RGB engineering strips with DC12V and DC24V options.

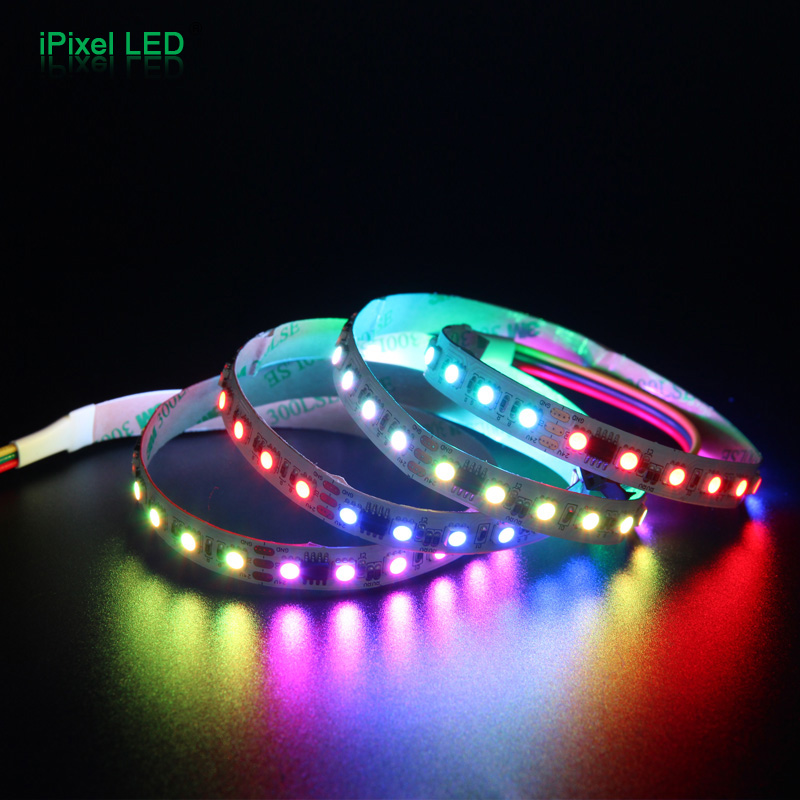

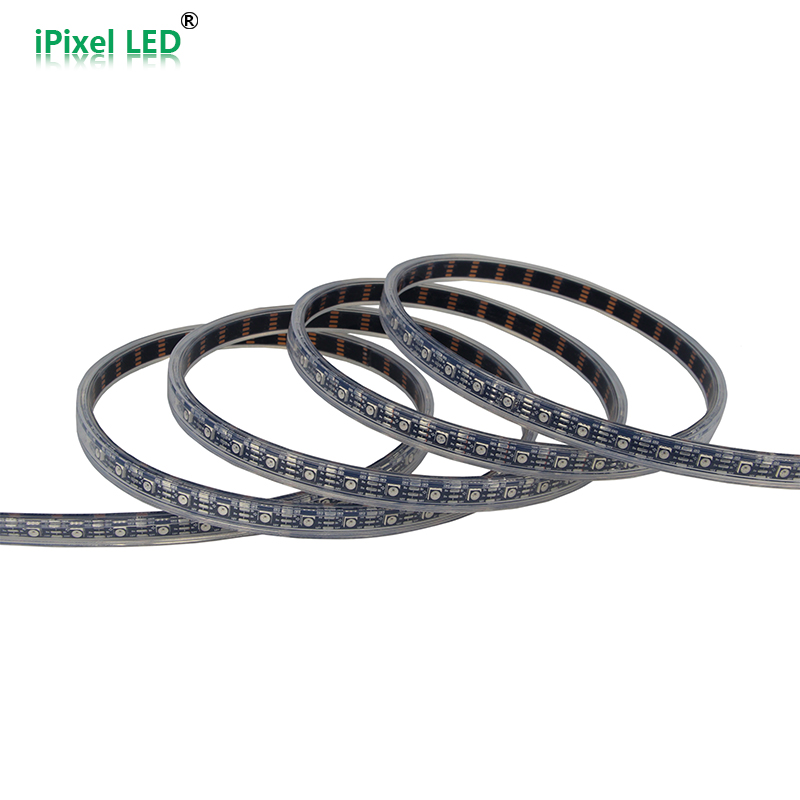

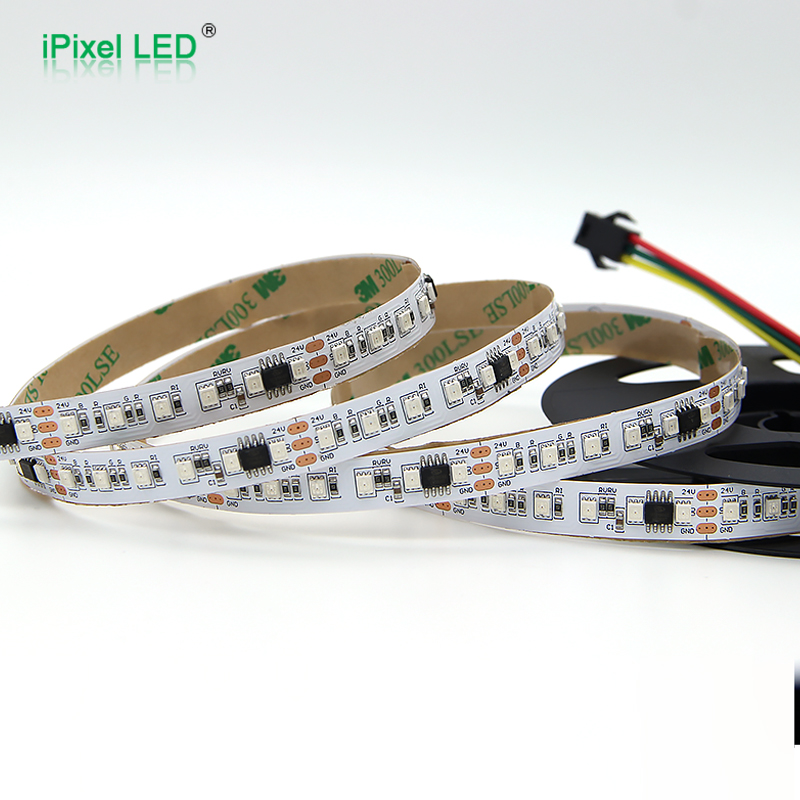

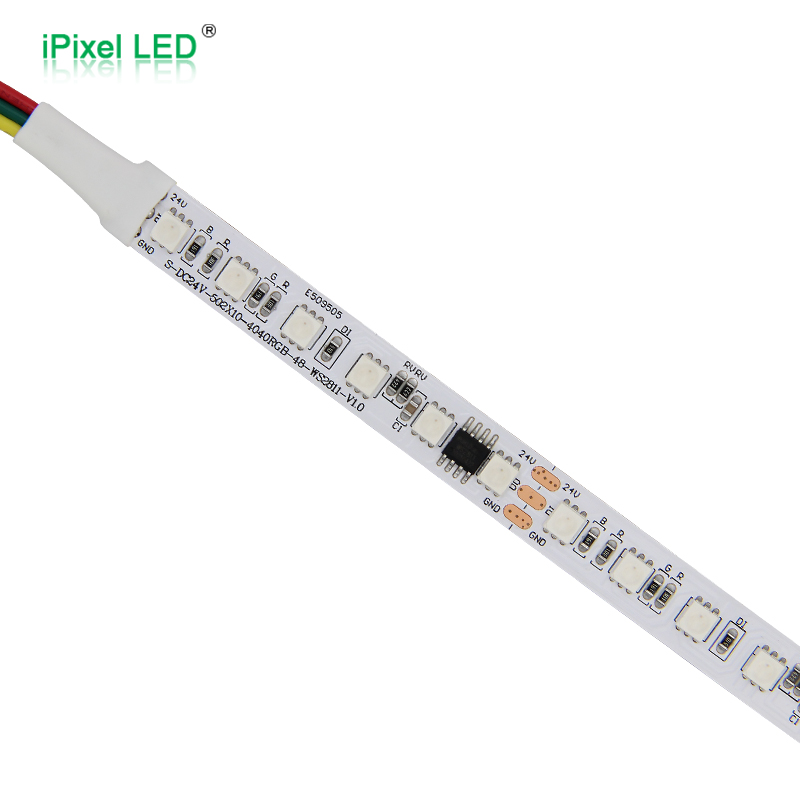

DC12V / DC24V SPI Addressable RGB LED Strip Series
This SPI Addressable RGB LED Strip Series is designed for programmable RGB lighting effects using digital control protocols such as RT1809, WS2811, TM1804 and SK6851. The series covers DC12V and DC24V options, with 30, 60, 96, 120 and 144 LEDs per meter versions.
The series is suitable for signage, commercial decoration, gaming equipment, amusement machines, display fixtures, entertainment lighting, architectural linear effects and OEM dynamic RGB lighting systems.
DC12V/DC24V30/60/96/120/144LEDs/m10/12mm WidthRGBIP20/IP65
Overview & Key Features
Series Overview
This series provides multiple SPI digital RGB solutions for different project requirements.
The RT1809 versions are suitable for projects requiring higher reliability and voltage-drop improvement. The WS2811 versions are common engineering-type SPI RGB strips for DC12V / DC24V systems. The 4040 RGB and 2835 RGB versions provide alternative LED packages for different brightness and optical layouts. The SK6851 version provides a DC24V 5050 RGB addressable option with 12mm PCB width.
Key Features
- SPI addressable RGB LED strip series
- DC12V / DC24V voltage options
- RT1809 / WS2811 / TM1804 / SK6851 control options
- 5050 / 4040 / 2835 RGB LED package options
- 30 / 60 / 96 / 120 / 144 LEDs per meter
- 10mm / 12mm PCB width options
- 10 / 16 / 20 / 30 / 60 / 144 pixels per meter options
- Cuttable from 6.94mm to 100mm depending on model
- White PCB and black PCB options on selected models
- 3M adhesive backing
- IP20 / IP64 / IP65 / IP67 options depending on model
- 5m standard roll for most models
- Suitable for dynamic color effects, signage, display and OEM lighting systems
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Control | PCB Width | CCT | Cut | Lumen/m | Version |
|---|---|---|---|---|---|---|---|---|---|
| S010030CB3SD2 | 30 | DC12V | 4.5W | SPI / RT1809 | 10mm | RGB | 33.33mm / 1LED | R:29 / G:110 / B:29lm | RT1809 5050 RGB, 30 pixels/m |
| S010060CB3SD2 | 60 | DC12V | 9W | SPI / RT1809 | 10mm | RGB | 16.66mm / 1LED | R:37 / G:138 / B:40lm | RT1809 5050 RGB, 60 pixels/m |
| S012144CB3SD2 | 144 | DC12V | 22W | SPI / RT1809 | 12mm | RGB | 6.94mm / 1LED | R:102 / G:362 / B:102lm | RT1809 5050 RGB, 144 pixels/m |
| S010060CB3SF | 60 | DC12V | 12W | SPI / WS2811 | 10mm | RGB | 50mm / 3LED | R:114 / G:275 / B:65lm | WS2811 5050 RGB, 20 pixels/m |
| S010060CC3SF | 60 | DC24V | 12W | SPI / WS2811 | 10mm | RGB | 100mm / 6LED | R:95 / G:254 / B:44lm | WS2811 5050 RGB, 10 pixels/m |
| S010096TC3SF | 96 | DC24V | 17.5W | SPI / WS2811 | 10mm | RGB | 62.5mm / 6LED | R:885 / G:2085 / B:475lm | WS2811 4040 RGB, 16 pixels/m |
| S010120BC3SM | 120 | DC24V | 14.8W | SPI / TM1804 | 10mm | RGB | 50mm / 6LED | R:78 / G:334 / B:64lm | TM1804 2835 RGB, 20 pixels/m |
| S012060CC3SE8 | 60 | DC24V | 7.2W | SPI / SK6851 | 12mm | RGB | 100mm / 6LED | R:50 / G:145 / B:34lm | SK6851 5050 RGB, 60 pixels/m |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need DC12V RT1809 addressable RGB strip | Choose S010030CB3SD2 / S010060CB3SD2 / S012144CB3SD2 according to density. |
| Need low power and wider pixel spacing | Choose S010030CB3SD2 — 30 LEDs/m, 4.5W/m, 30 pixels/m. |
| Need balanced DC12V RT1809 option | Choose S010060CB3SD2 — 60 LEDs/m, 9W/m, 60 pixels/m. |
| Need high-density RT1809 effect | Choose S012144CB3SD2 — 144 LEDs/m, 12mm PCB, shortest cutting unit. |
| Need standard WS2811 DC12V project strip | Choose S010060CB3SF — DC12V, 60 LEDs/m, 50mm cut, 20 pixels/m. |
| Need WS2811 DC24V for lower current | Choose S010060CC3SF — DC24V, 60 LEDs/m, 100mm cut, 10 pixels/m. |
| Need higher brightness with 4040 RGB package | Choose S010096TC3SF — 96 LEDs/m, SMD4040 RGB, DC24V. |
| Need 2835 RGB digital strip | Choose S010120BC3SM — 120 LEDs/m, SMD2835 RGB, TM1804 control. |
| Need DC24V 5050 RGB with SK6851 control | Choose S012060CC3SE8 — 60 LEDs/m, 12mm PCB, SK6851 control. |
| Need shorter cutting length | Choose S012144CB3SD2 — 6.94mm / 1LED. |
| Need IP67 option | Choose S010060CB3SF / S010060CC3SF if IP67 is required. |
| Need common 10mm PCB installation | Choose S010030CB3SD2, S010060CB3SD2, S010060CB3SF, S010060CC3SF, S010096TC3SF or S010120BC3SM. |

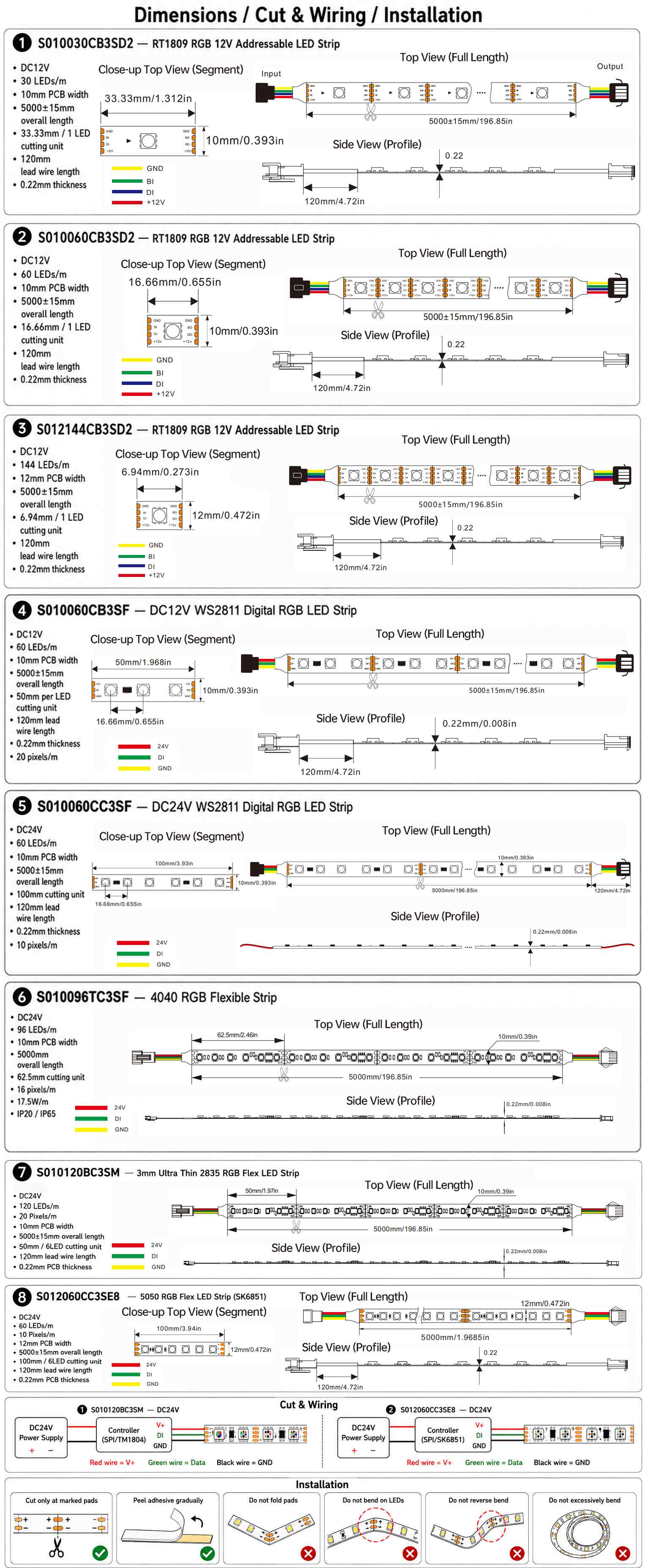

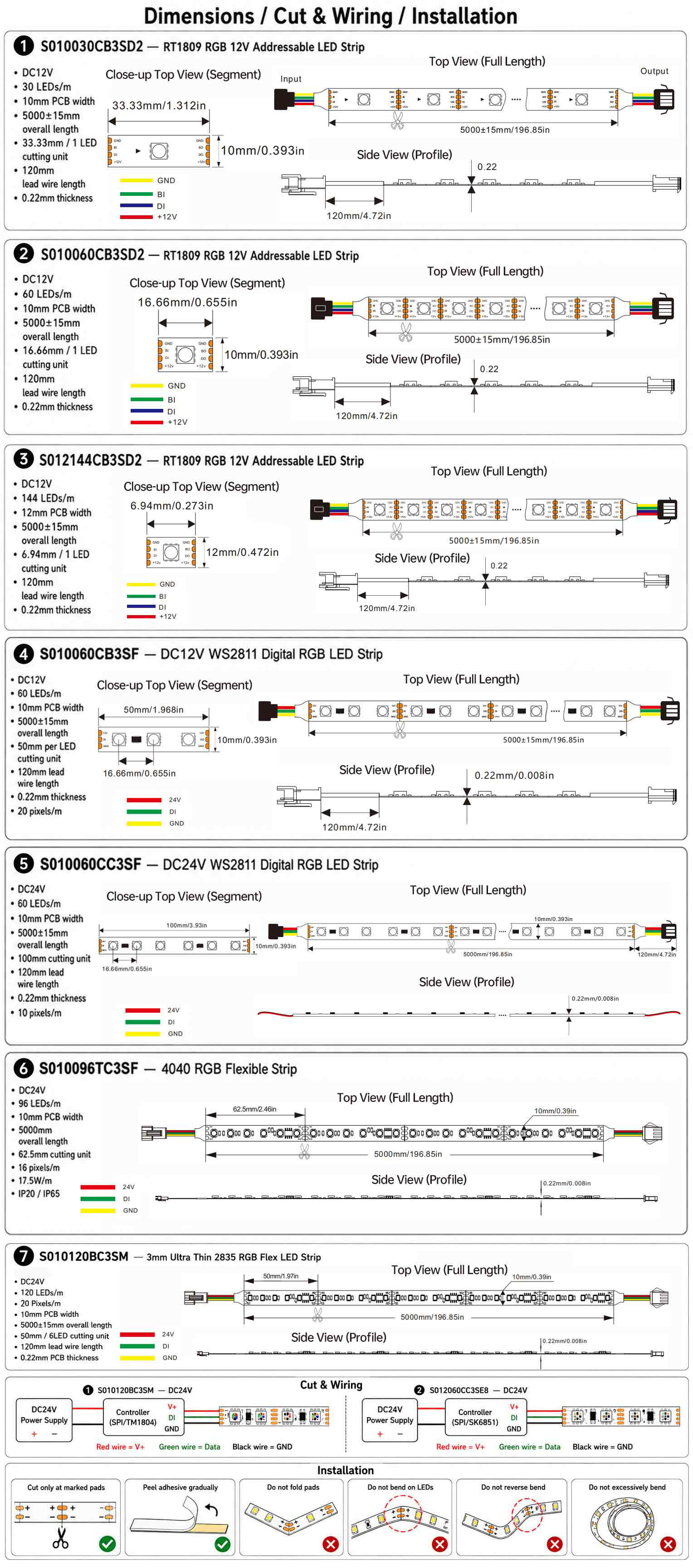

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC12V / DC24V | Select according to power system, wiring distance and voltage-drop requirement. |
| LED Type | SMD5050 / SMD4040 / SMD2835 RGB | 5050 for common RGB; 4040 and 2835 for specific optical or layout requirements. |
| ColorType | RGB | Red, green and blue programmable color mixing. |
| Color Range | RGB wavelength range | Typical range: R 615–630 / 620–625nm, G 520–535 / 520–525nm, B 450–460 / 460–465nm depending on model. |
| PCB Width | 10mm / 12mm | 10mm for most models; 12mm for S012144CB3SD2 and S012060CC3SE8. |
| Power | 4.5W/m / 7.2W/m / 9W/m / 12W/m / 14.8W/m / 17.5W/m / 22W/m | Select according to LED density, brightness and thermal requirement. |
| Control | SPI / RT1809 / WS2811 / TM1804 / SK6851 | Controller must match IC type, voltage and pixel quantity. |
| IPRating | IP20 / IP64 / IP65 / IP67 | Availability depends on model. IP process may affect size, color and luminous output. |
| Length | 5m standard / custom length | Most models are shown as 5m per roll; high-density versions should be confirmed before order. |
| Connector | JST SM connector / bare wire / custom connector | Select based on wiring method, controller and installation structure. |
| Mounting | 3M adhesive tape / aluminum profile / silicone clip / screw / end cap | Aluminum profile is recommended for heat dissipation and mechanical protection. |
| Packing | Reel / antistatic bag / carton / OEM packing | Standard reel and carton packing; OEM packing can be discussed. |
Related Items
Range Hood Lighting – Heat/Grease/Chemical Resistance & Safe Integration
Arcade & Gaming Machine Lighting – SPI RGB/Addressable Strips, Robust Solder Pads & UL + CE Compliance
Electric Fireplace Lighting – High-Temp Stability, Long Life & Safe Integration
Slot Machine Lighting – EMI/Signal Integrity, Serviceable Mounting & Long-Run Stability
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
S010030CB3SD2, S010060CB3SD2, S012144CB3SD2 and S010060CB3SF are DC12V models.
S010060CC3SF, S010096TC3SF, S010120BC3SM and S012060CC3SE8 are DC24V models.
S012144CB3SD2 has the highest LED density in this group, with 144 LEDs/m.
