DuPont Cable Connector Series
DuPont Cable Connector Series

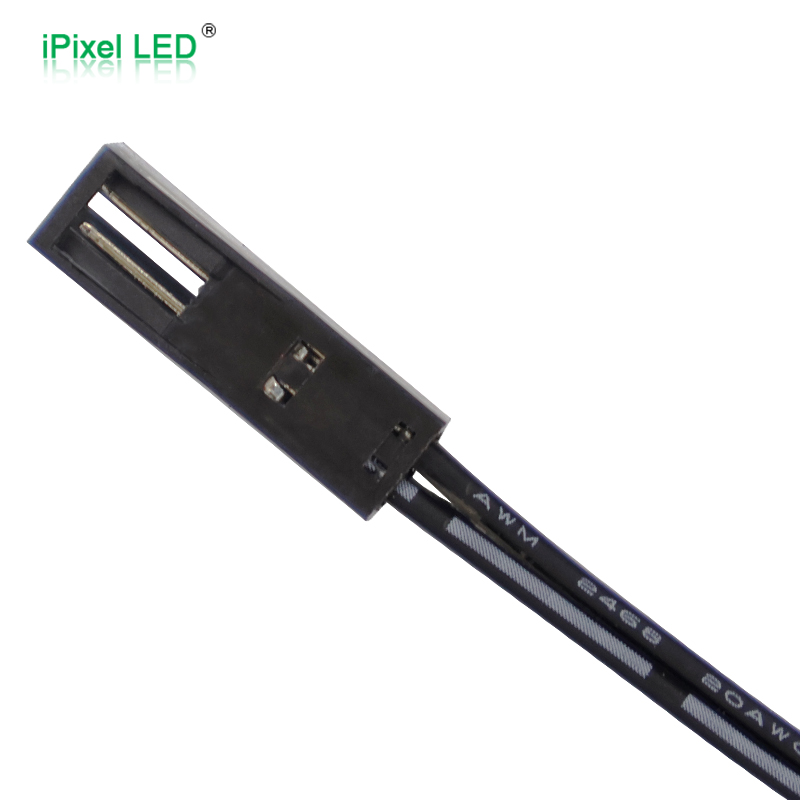

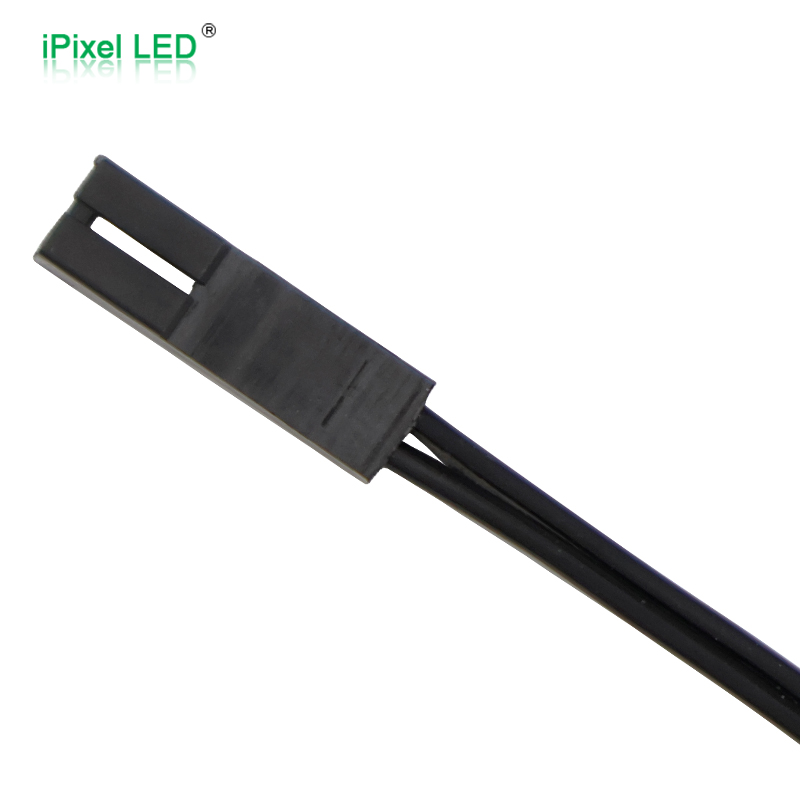

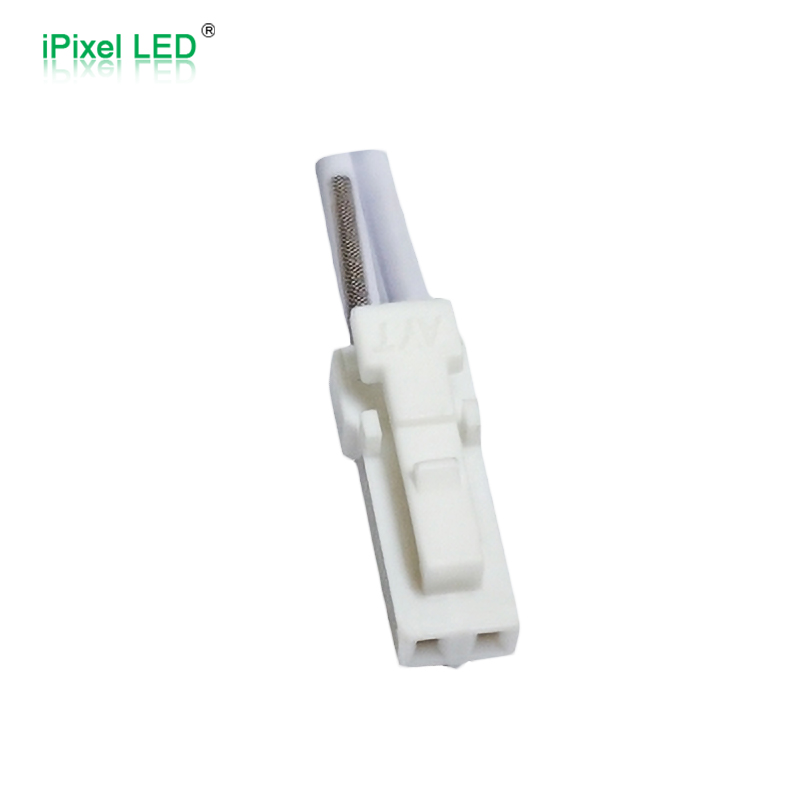

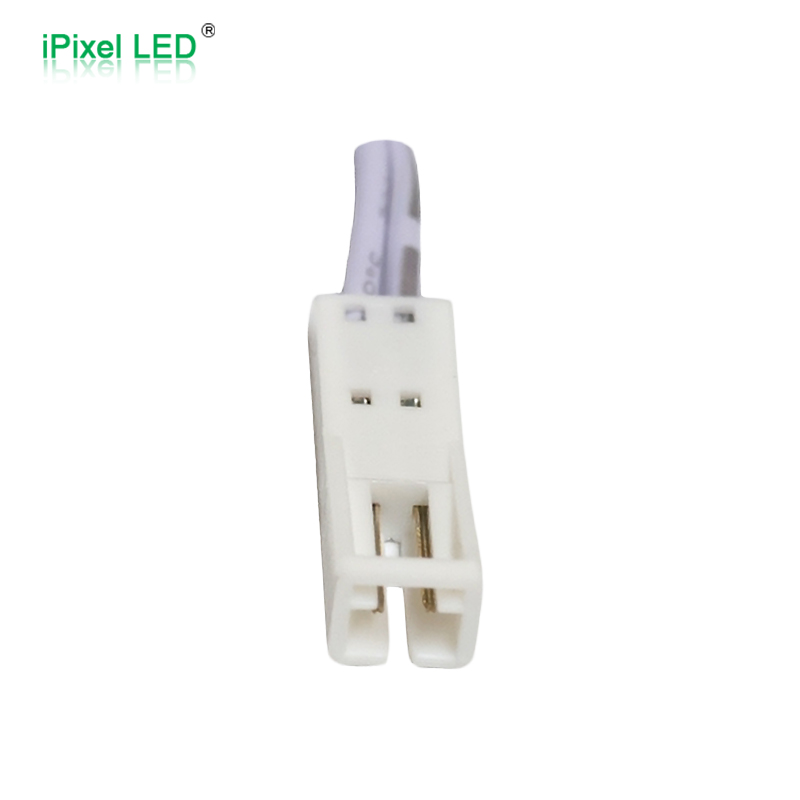

The DuPont Cable Connector Series is designed for control board wiring, LED module connection, sensor wiring, testing, and low-current internal wiring.
This series includes 2Pin DuPont female pigtail cable, 2Pin DuPont male pigtail cable, and 2Pin DuPont extension cable. The listed products use PVC insulation, tinned copper conductor, 22AWG wire, and white / white-with-black-stripe wire colors.
Product Series Specification Matrix

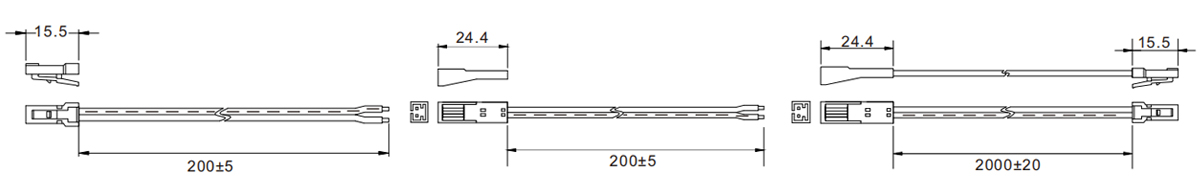

| Product Name | Pin | Type | Plug Model | P/N | Wire Gauge | Length | Wire Color | Notes |
|---|---|---|---|---|---|---|---|---|
| 2Pin DuPont Female Pigtail Cable | 2Pin | Female Pigtail | 2Pin DuPont Female | DZMT-00200-V2 | 22AWG | 200±5mm | White with Black Stripe, White | For PCB pin header wiring |
| 2Pin DuPont Male Pigtail Cable | 2Pin | Male Pigtail | 2Pin DuPont Male | DZGT-00200-V2 | 22AWG | 200±5mm | White, White with Black Stripe | For board / signal wiring |

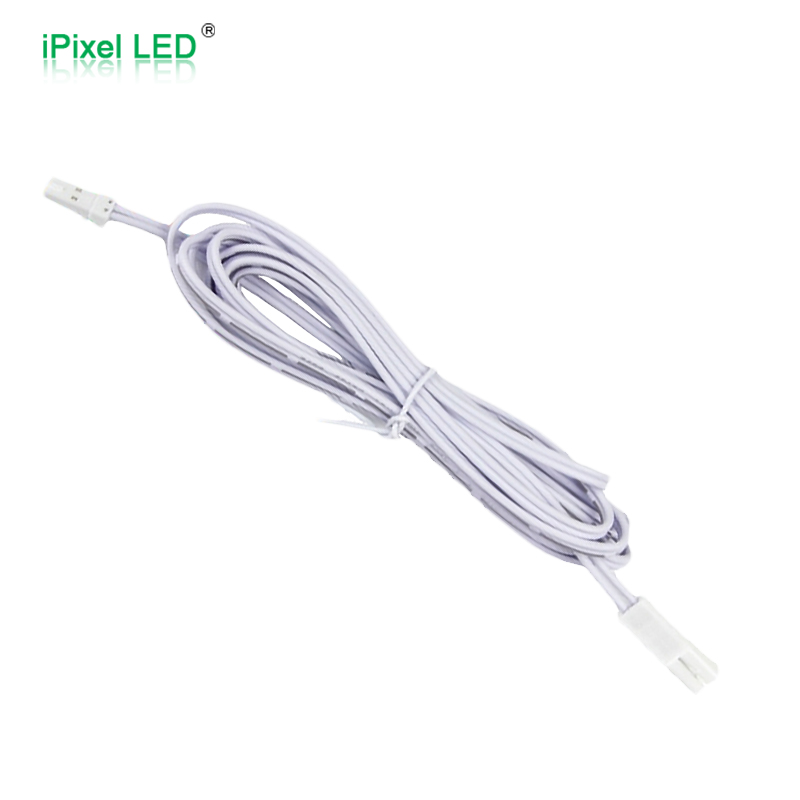

| 2Pin DuPont Extension Cable | 2Pin | Extension Cable | 2Pin DuPont Connection | DZLJ-02000-V2 | 22AWG | 2000±20mm | White, White with Black Stripe | For low-current extension |
FAQ
Usually no. It is better for low-current signal and internal wiring.
Yes. Length, pin number, connector gender, wire color, and wire gauge can be customized.
One series page is better because the main difference is male / female / extension type.
