A single-color strip produces one fixed color or CCT. A tunable-white strip contains warm-white and cool-white channels, allowing the white-light color temperature to be adjusted.
Custom Single Color, CCT & Special LED Lighting Series
Custom Single-Color & Tunable White LED Strip Series
Flexible LED strips for fixed-color illumination and adjustable white-light applications, available in standard single-color, conventional tunable-white and compact 2-wire CCT configurations.
This series covers single-color and tunable-white flexible LED strips developed for cabinet, furniture, refrigerated display, retail shelving and OEM equipment lighting.
Available configurations include fixed white or colored light, conventional warm-white plus cool-white channel control, and special 2-wire CCT solutions for installations with limited wiring space.
The models shown below include standard products and previous custom projects. Final CCT, CRI, voltage, LED density, PCB width, cutting length and wiring structure should be confirmed for each application.
Series Overview
This series covers single-color and tunable-white flexible LED strips developed for cabinet, furniture, refrigerated display, retail shelving and OEM equipment lighting.
Available configurations include fixed white or colored light, conventional warm-white plus cool-white channel control, and special 2-wire CCT solutions for installations with limited wiring space.
The models shown below include standard products and previous custom projects. Final CCT, CRI, voltage, LED density, PCB width, cutting length and wiring structure should be confirmed for each application.
Key Features
- Single-color and tunable-white configurations
- Conventional and 2-wire CCT options
- DC12V and DC24V platforms
- Ultra-narrow and high-density designs
- Multiple CCT and visible-color options
- CRI 80, CRI 90 and CRI 95 options
- Color consistency down to 1 SDCM
- Custom PCB, cable, connector and protection structures
1. Single-Color LED Strips
Fixed-color LED strips for applications requiring one stable white-light CCT or one specific visible color.
The current source list does not provide a reliably confirmed single-color model number. The table below therefore presents available development directions without assigning unverified product specifications.
| Light Color / CCT | Product Direction | Typical Control |
|---|---|---|
| Warm White | Fixed warm ambient lighting | On/Off / PWM Dimming |
| Neutral White | Balanced task and display lighting | On/Off / PWM Dimming |
| Cool White | Commercial display and equipment lighting | On/Off / PWM Dimming |
| Red / Green / Blue / Amber | Fixed visible-color lighting | On/Off / PWM Dimming |
| Special Wavelength | OEM or application-specific spectral output | Project-Specific |

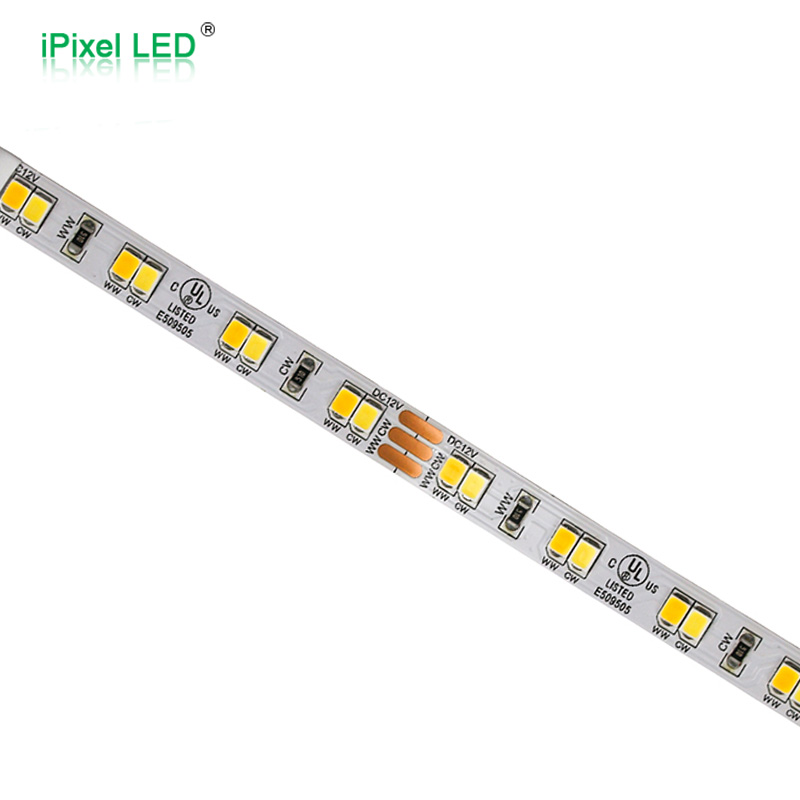

2. Tunable White LED Strips
Dual-white LED strips with independent warm-white and cool-white channels for adjustable color-temperature lighting.
| Model No. | LED Structure | Voltage | LEDs/m | PCB Width | Standard Length | Control | Key Feature |
|---|---|---|---|---|---|---|---|
| S008120AC2PZ | SMD3528 2-in-1 Tunable White | DC24V | 120 | 8mm | 5m | PWM CCT Control | Compact 2-in-1 LED package |
| S008128BB2PZ | Tunable White, exact LED type to be confirmed | DC12V | 128 | 8mm | 5m | PWM CCT Control | High-density CCT design |
*PCB width and control structure must be verified against the original specification. Do not treat information inferred from the model number as a final published parameter.

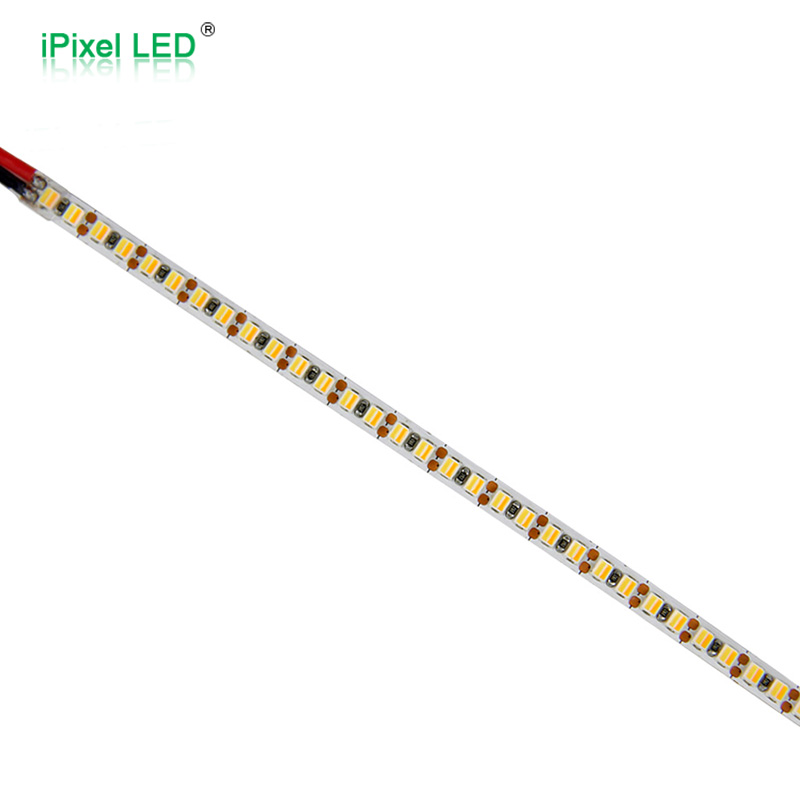

3. 2-Wire CCT & Special Custom LED Strips
Compact tunable-white solutions developed for applications where the available cable quantity, PCB width or installation space is restricted.
| Reference Product | Structure | Voltage | PCB Width | LED Density | Control Requirement | Key Feature |
|---|---|---|---|---|---|---|
| S004280YC2PZ | Ultra-Narrow 2-Wire CCT Strip | DC24V | 4mm | 280LED | Matching 2-Wire CCT Controller | Reduced wiring and compact installation |
| S006304XC1LZ | Newest Mini CUT | DC24V | 6mm | 304LED | Wired control | Reduced wiring and compact installation |
A 2-wire CCT strip requires a compatible 2-wire controller and should not be connected as a conventional 3-wire common-positive tunable-white strip.
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| One fixed white-light CCT | Single-Color White Strip |
| One fixed visible color | Single-Color Strip |
| Adjustable warm-to-cool white | Tunable White Strip |
| Standard controller and separate white channels | Conventional CCT Version |
| Limited cable quantity | 2-Wire CCT Version |
| Very narrow mounting groove | Ultra-Narrow Version |
| Reduced visible LED dots | High-Density Version |
| Accurate merchandise or food presentation | CRI 90 / CRI 95 Version |
| Strict batch color consistency | 1–3 SDCM LED Binning |
| Long equipment installation | DC24V Version |
| Individual white-light pixel control | Use an Addressable CCT Strip instead |
Customization Options
| Customization Item | Available Options |
|---|---|
| Light Type | Single Color / Tunable White / 2-Wire CCT |
| White CCT | 2200K–6500K, project-dependent |
| Visible Color | Red / Green / Blue / Amber / Custom Wavelength |
| Voltage | DC12V / DC24V |
| LED Package | 2835 / 3014 / 3527 / 3528 2-in-1 / Project-Specific |
| LED Density | Project-Specific |
| PCB Width | Ultra-Narrow / 5mm / 8mm / 10mm / Custom |
| CRI | 80 / 90 / 95 |
| Color Consistency | Down to 1 SDCM |
| PCB Color | White / Black |
| Control | On/Off / PWM Dimming / CCT Control |
| Protection | IP20 / Coating / Silicone / Extrusion |
| Cable | 2-Wire / 3-Wire / Customized Length |
| Connector | Bare Wire / Solder-Free / Custom Connector |
| Reel Length | Standard or Customized |
Not every LED package, voltage, PCB width and control structure can be combined freely. Final feasibility should be confirmed through circuit and thermal review.
FAQ
A conventional CCT strip normally uses separate channel connections for warm and cool white. A 2-wire CCT strip uses a dedicated wiring and control structure and requires a matching controller.
No. The controller must match the strip voltage, wiring method, channel structure and maximum load.
Warm-white and cool-white dies are integrated into one LED package, which can provide more uniform LED spacing and a compact PCB layout.
