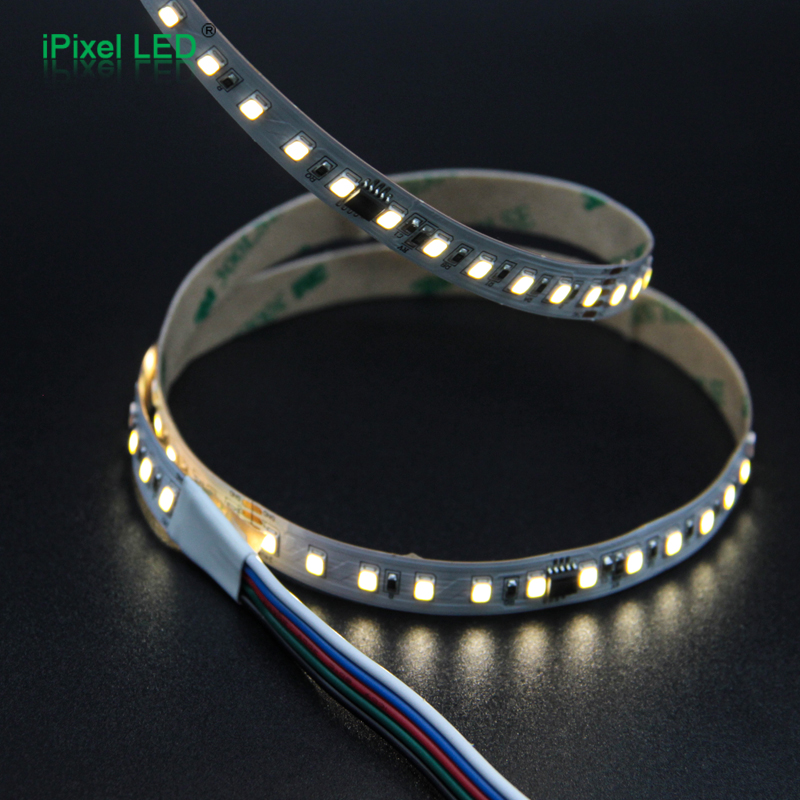

They belong to the same DMX 2835 single color LED strip series, but the LED density, PCB width, power and brightness are different.
DMX 2835 Single Color LED Strip Series
- 2835 LED chip, 120/240LEDs/m
- DMX IC chip and controlled by DMX controller
- Input voltage is DC24V
- Flexible PCB, FPC color is white
- PCB with 1+2 Oz copper, 10/20mm width
- Standard 5m/roll, length can be customized
DC24V120/240LEDs/m10/20mm Widchsingle colorDMX/TM512AC/HI512E
Overview & Key Features
Series Overview
This DMX 2835 single color LED strip series is designed for projects that require DMX-controlled white light output with stable dimming and segmented control. Both versions operate at DC24V, use SMD2835 LEDs, support DMX / TM512AC / HI512E control, and provide 10 pixels per meter with a 100mm cutting unit.

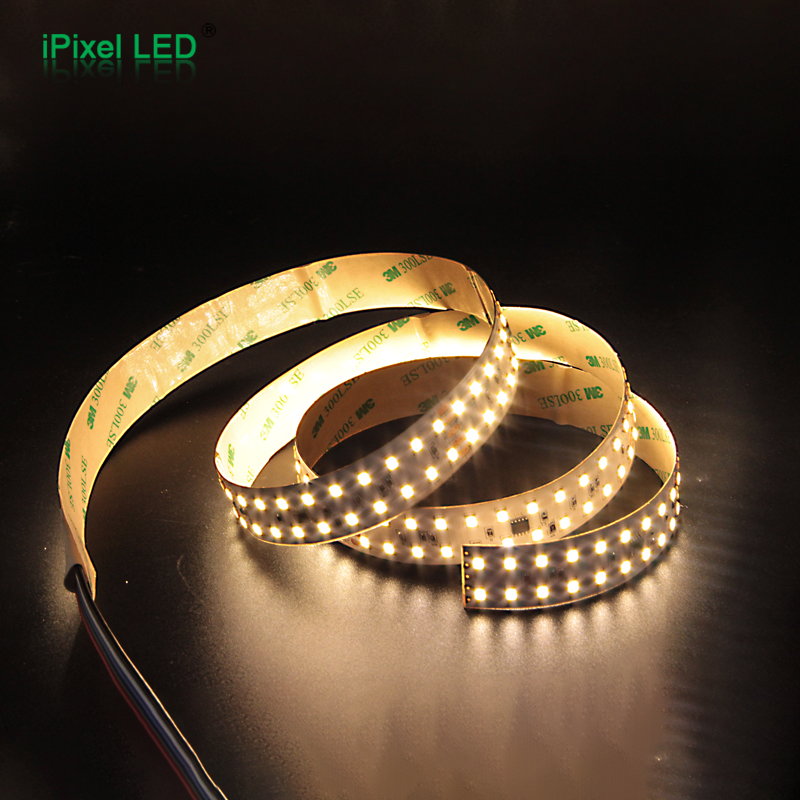

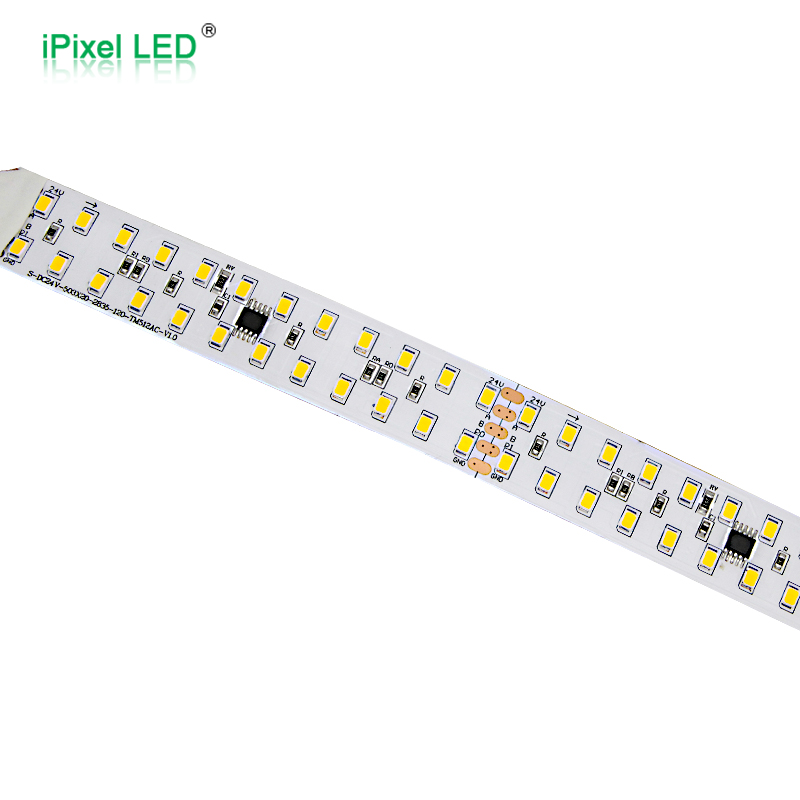

The series includes a 10mm / 120 LEDs/m version and a 20mm / 240 LEDs/m double-row version. The 120 LEDs/m version is suitable for standard linear lighting applications, while the 240 LEDs/m double-row version is better for projects requiring higher brightness and wider PCB layout.
Key Features
- SMD2835 single color LED strip for white light applications.
- DMX controlled, suitable for DMX lighting systems.
- DC24V constant voltage operation.
- 120 LEDs/m and 240 LEDs/m options.
- 10 pixels/m for both versions.
- 100mm cutting length.
- Ra ≥90, suitable for projects requiring better color rendering.
- 10mm PCB version for standard installation.
- 20mm double-row version for higher brightness.
- 1+2 oz copper FPC mentioned in both datasheets.
- Standard 5m per roll, custom length available.
- IP20 / IP64 / IP65 / IP67 options, depending on final waterproof process.
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Lumen/m | PCB Width | Cutting Length | Control | Pixel Density | Color |
|---|---|---|---|---|---|---|---|---|---|
| S010120BC1DC0 / S010120BC1DE1 | SMD2835 120LEDs/m | DC24V | 15W/m | W: 1280 lm/m | 10mm | 100mm | DMX / TM512AC / HI512E | 10 Pixels/m | W: 3000K / 4000K / 6500K |
| S020240BC1DC0 / S020240BC1DE1 | SMD2835 240LEDs/m | DC24V | 19.2W/m | W: 1790 lm/m | 20mm | 100mm | DMX / TM512AC / HI512E | 10 Pixels/m | W: 3000K / 4000K / 6500K |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Standard DMX single‑color linear light strip | S010120BC1DC0 / DE1 |
| Need narrower PCB installation space | S010120BC1DC0 / DE1, 10mm PCB |
| Need higher brightness | S020240BC1DC0 / DE1, 240 LEDs/m |
| Need dual‑row structure | S020240BC1DC0 / DE1 |
| Need Ra≥90 white light | Both models are suitable |
| Need DMX segment control | Both models are suitable, 10 Pixels/m |
| Need 100mm cutting pitch | Both models are suitable |
| Need an IP‑rated version | Confirm the specific IP process and end sealing treatment first |
| Installation space is narrow or profile is small | Prefer the 10mm version |
| Need a wider light‑emitting surface | Prefer the 20mm dual‑row version |

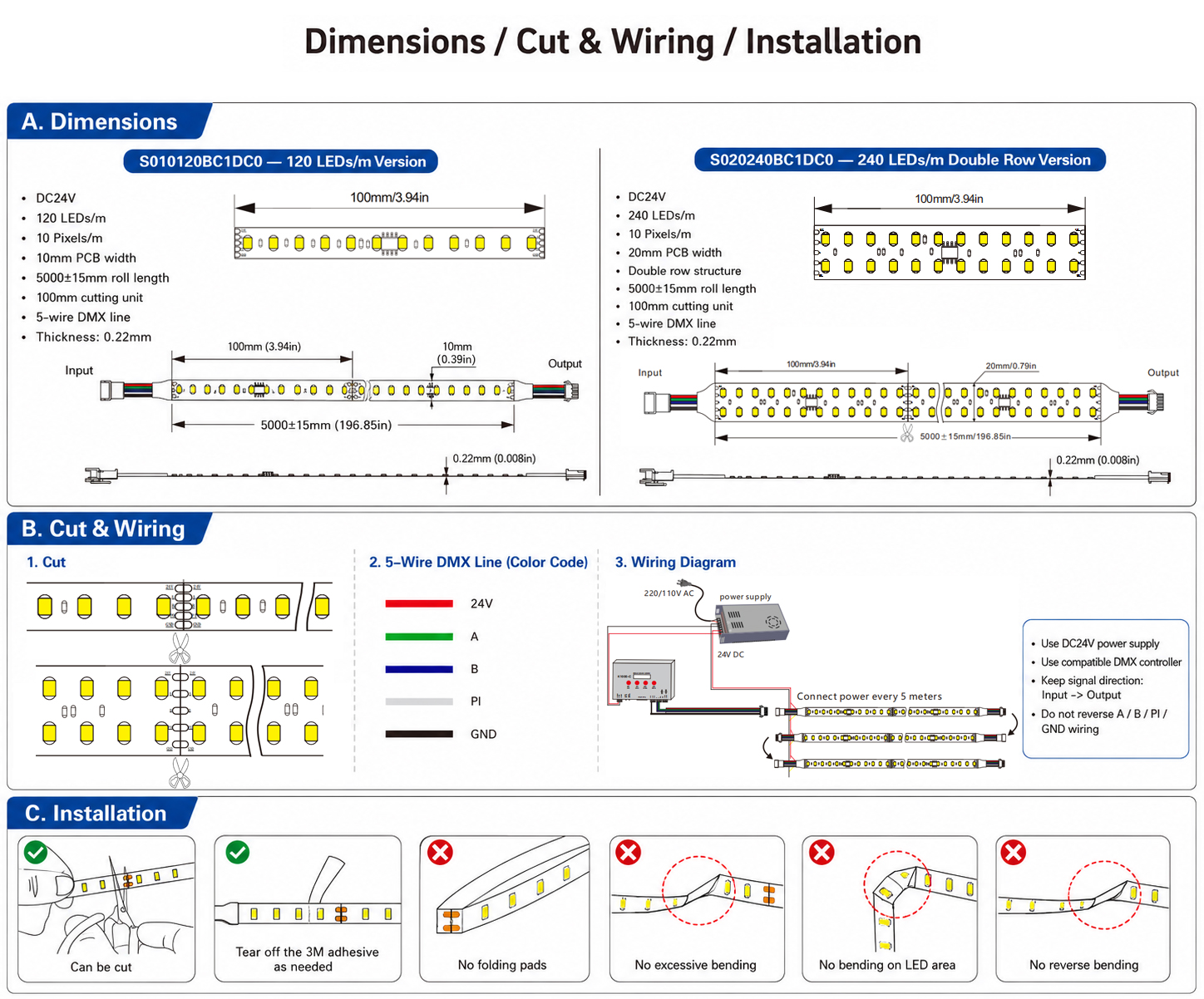

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC24V | Standard input |
| LED Type | SMD2835 | Single color white |
| LED Density | 120 / 240 LEDs/m | Select by brightness and PCB width |
| PCB Width | 10mm / 20mm | 20mm version is double row |
| Control | DMX / TM512AC / HI512E | DMX controller required |
| Pixel Density | 10 Pixels/m | Both versions |
| Cutting Length | 100mm | Both versions |
| CCT | 3000K / 4000K / 6000K or 6500K | Confirm final CCT before order |
| CRI | Ra ≥90 | Both versions |
| IP Rating | IP20 / IP64 / IP65 / IP67 | Final availability depends on model and waterproof process |
| Length | 5m standard / custom length | Custom length available |

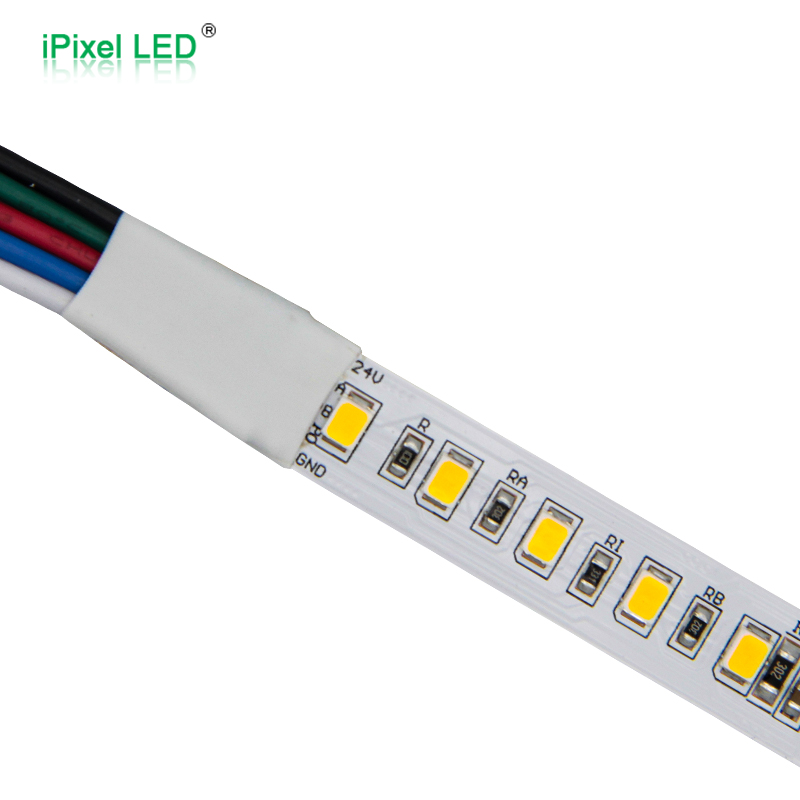

| Cable | 5-wire DMX input/output | 24V / A / B / PI / GND |
| Mounting | 3M tape / aluminum profile / clips | Profile recommended for better heat dissipation |
| Accessories | DC24V power supply, DMX controller, aluminum profile | Select according to project requirement |
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
The 120 LEDs/m version uses a 10mm PCB and 15W/m power. The 240 LEDs/m version uses a 20mm double-row PCB, with higher brightness and 19.2W/m power.
Use a compatible DMX controller. The datasheets list DMX / TM512AC / HI512E control.
Both versions use a 100mm cutting length.
