The controller is designed for SPI, TTL and selected DMX512 addressable LED strips, pixel modules, digital neon flex and other pixel lighting products.

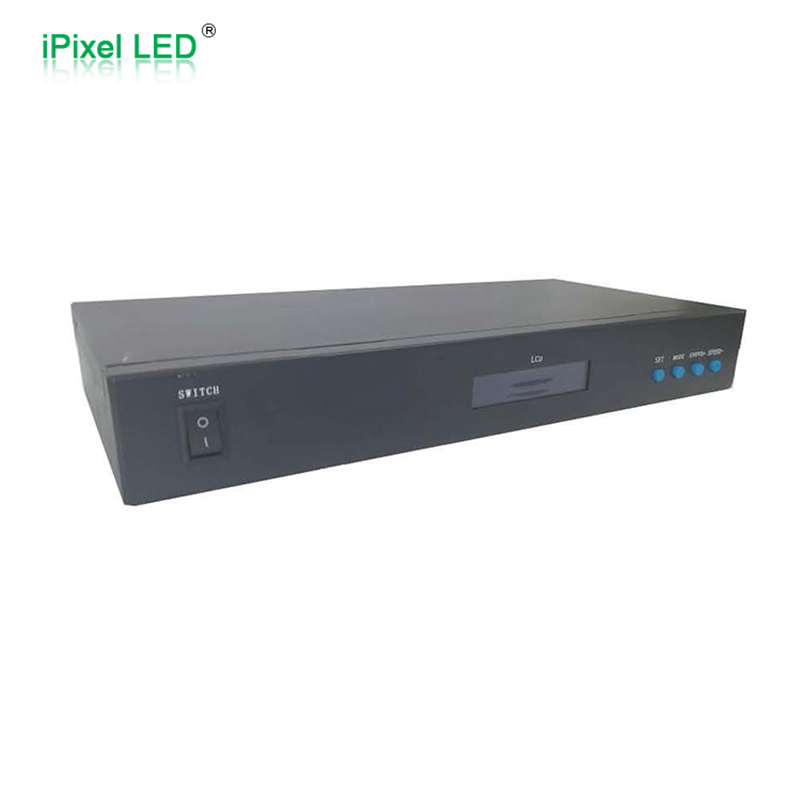

T-790K 8-Port Online & Offline Addressable LED Controller
T-790K 8-Port Online & Offline Addressable LED Controller
The T-790K is an 8-port professional controller designed for medium and large addressable LED lighting systems. It supports conventional SPI/TTL pixel protocols, standard and extended DMX512 protocols, and online control through TCP/IP networks.
The controller can operate with LedPlayer software, selected MADRIX systems and built-in offline effects. When the online control signal is interrupted, the controller can automatically switch to its offline operating mode. It also supports controller ID numbering, DMX512 address writing, lamp-address testing and RGB/RGBW test effects.
Product Specification Table
| Model No | Controller Type | Power Input | Output Ports | Output Protocols | Maximum SPI Capacity | Network Protocol |
|---|---|---|---|---|---|---|
| T-790K | Networked Addressable LED Controller | 100–240V AC | 8 | SPI / TTL / Standard DMX512 / Extended DMX512 | Up to 6144 pixels total | TCP/IP |
FAQ
Yes. It supports online and offline integrated operation. When the online signal is unavailable, it can switch to its configured offline effects.
For supported SPI protocols, the manual lists up to 6144 pixels, with approximately 4096 pixels recommended for normal project use. DMX512 capacity is lower and depends on the IC, channels and frame-rate requirements.
No. The exact IC protocol must be supported by the controller software and firmware. Confirm the LED IC before ordering.
