XB-808-A Large-Scale Addressable LED Master Controller
XB-808-A Large-Scale Addressable LED Master Controller
The XB-808-A is a central master controller designed for large addressable LED installations that require multiple sub-controllers, synchronized playback and remote system management.
It combines offline SD-card playback, controller numbering, timing control, BTS/GPS time synchronization, TCP/IP networking and remote communication functions. The master controller can manage up to 60 compatible sub-controllers or approximately 160,000 pixels, depending on the final system configuration.
Product Specification Table
| Parameter | Specification |
|---|---|
| Product Name | Large-Scale Addressable LED Master Controller |
| Model No | XB-808-A |
| Product Type | Master Controller |
| Power Input | 110–240V AC |
| Maximum Sub-Controllers | Up to 60 |
| Maximum System Capacity | Up to 160,000 pixels |
| Compatible Sub-Controllers | T-500 / T-700K / T-800K |
| Network Protocol | TCP/IP |
| Network Rate | 100 Mbps / Gigabit, selectable |
| Offline Storage | SD Card |
| SD Card Capacity | 4GB–32GB |
| Maximum Effect Files | Up to 32 |
| Playback Modes | Single Effect / Effect Loop / Speed Adjustment |
| Remote Control Options | Bluetooth / RF / 4G / PC / Mobile App |
| Time Functions | Scheduled and Holiday Playback |
| Synchronization | BTS Base-Station Timing / GPS Satellite Timing |
| Controller Numbering | Automatic or Manual Sub-Controller ID Numbering |
| DMX Functions | Address Writing and Lamp-Address Testing |
| Third-Party Control | Modbus / RS-485, project-dependent |

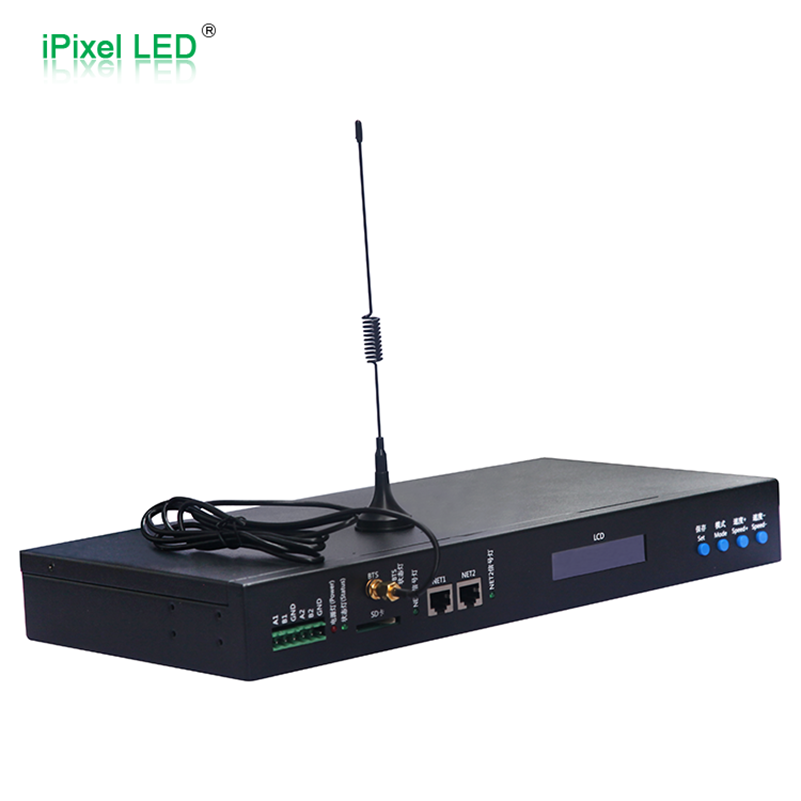

| Network Ports | NET1 / NET2 |
| RS-485 Interfaces | Two Channels |
| Wireless Interfaces | BTS Antenna / SIM Antenna / SIM Card Slot |
| Device Identification | Unique UID |
| Security | Multiple Encryption Options |
| Display | LCD Display |
| Built-In Effects | RGB / RGBW Test Effects |
FAQ
Normally, no. The XB-808-A manages compatible sub-controllers, and the LED products are connected to the output ports of those sub-controllers.
The current manual lists T-500, T-700K and T-800K series controllers. Compatibility with other controller models should be confirmed before ordering.
Yes. Programs can be stored on an SD card for offline playback. It supports single-program playback, loop playback, speed adjustment and scheduled operation.
