It strengthens and regenerates the SPI control signal between the LED controller and addressable LED products, helping improve signal stability in suitable installations.
C-SPI Addressable LED Signal Amplifier
C-SPI Addressable LED Signal Amplifier

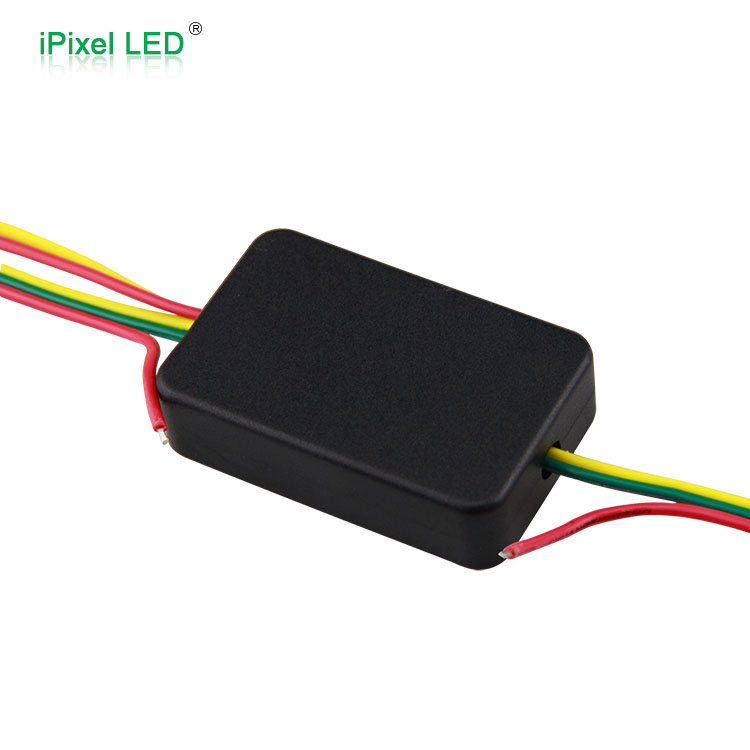

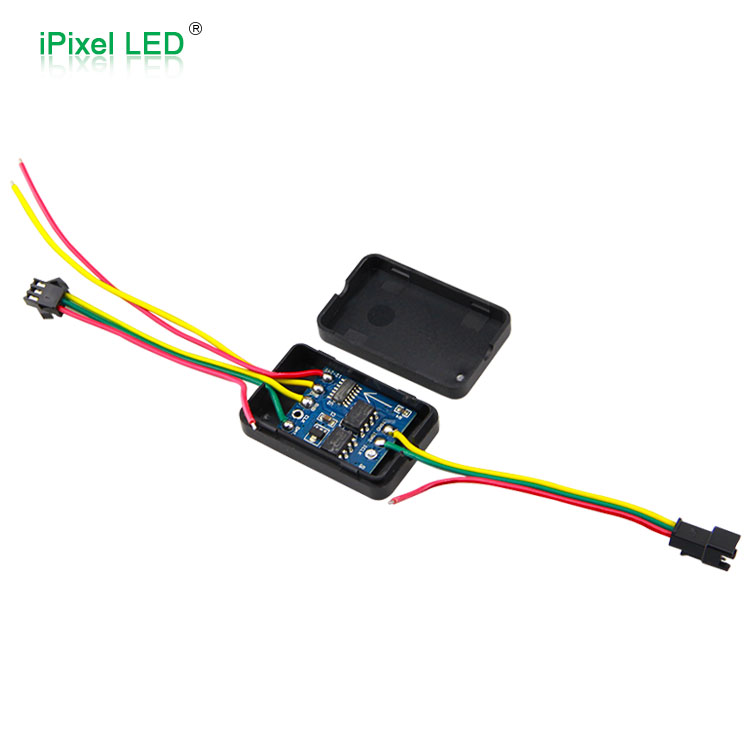

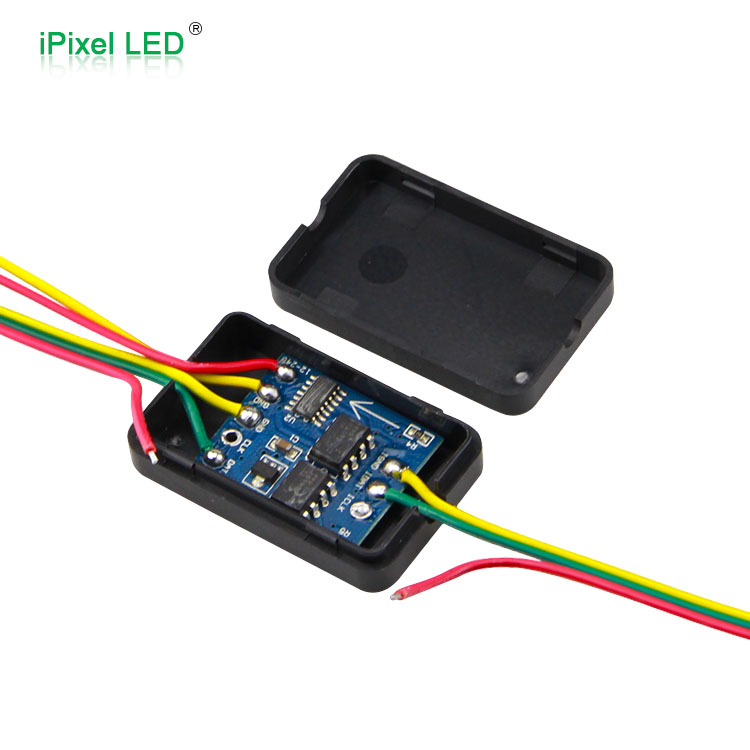

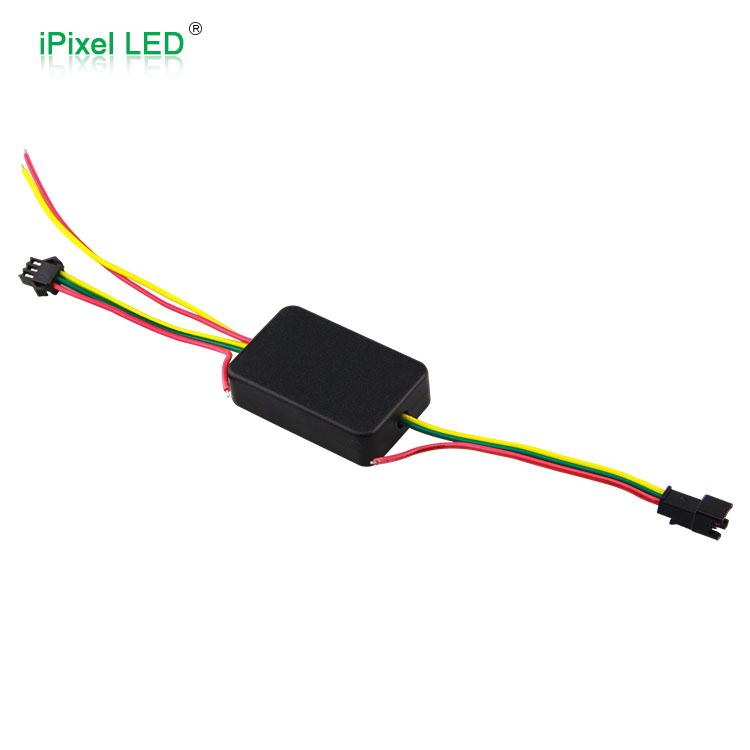

The C-SPI Amplifier is designed to strengthen and regenerate the digital control signal between an addressable LED controller and compatible SPI LED strips, modules or light bars.
Separate versions are available for single-data-line and two-wire data-plus-clock signals. The amplifier receives its own DC power input and only processes the control signal—it does not provide operating power to the connected LED strip or LED fixture.
Product Specification Table
| Parameter | Specification |
|---|---|
| Product Name | SPI Addressable LED Signal Amplifier |
| Product Number | C-SPI-Amplifier |
| Product Type | Digital LED Signal Amplifier |
| Operating Voltage | DC 5V / 12V / 24V |
| Signal Options | SPI Single-Line Signal / SPI Two-Wire Signal |
| Compatible Products | SPI Addressable LED Strips, Modules and Light Bars |
| Interface Type | 3-Pin JST |
| Power Input Wire | 20AWG Red and Yellow Wires |
| Input Signal Connector | JST Male Connector |
| Output Signal Connector | JST Female Connector |
| Signal Wiring | Yellow: GND; Green: DAT; Red: CLK |
| Power Wiring | Red: DC Positive; Yellow: GND |
| Power Consumption | <0.1W |
| IP Rating | IP20 / IP65 Options |
| Operating Temperature | -40°C to +50°C |
| Product Size | 55.5 × 35 × 15mm |
| Net Weight | Approx. 0.02kg |
| Housing | Plastic Enclosure |
| Waterproof Option | Glue-Sealed Version |
FAQ
No. The amplifier only processes the digital signal. The LED strip or LED fixture requires a separate correctly sized power supply.
Choose the version according to the LED IC protocol:
Single-line version for DAT and GND signals
Two-wire version for DAT, CLK and GND signals
The LED controller and LED product must use the same signal protocol.
Yes. Versions are available for DC 5V, 12V and 24V systems. The amplifier voltage should match the project power configuration.
