Choose SP103E for RF remote control, SP105E for standard Bluetooth App control, SP107E for music synchronization, and SP108E for Wi-Fi and customized lighting effects.
SP Series App-Controlled Addressable LED Controllers
SP Series App-Controlled Addressable LED Controllers
The SP Series provides multiple wireless control options for small and medium-sized addressable LED lighting systems. Users can choose a simple RF remote controller, Bluetooth App controller, music-responsive controller or Wi-Fi controller according to the required operating method and lighting effects.
The controllers support multiple commonly used one-wire and two-wire addressable LED IC protocols. The exact LED IC, working voltage, color order, pixel quantity and signal wiring must be confirmed before installation.
Product Series Specification Matrix
| Model No | Control Method | App | Maximum Pixels | Preset Effects | Main Functions | Wireless Range | Spec Sheet |
|---|---|---|---|---|---|---|---|
| SP103E | RF Remote | / | Up to 2048 | Approx. 300 | Brightness, color, speed, mode, pixel setting and RGB order adjustment | To Be Confirmed | Download |
| SP105E | Bluetooth 4.0 | Magic-LED | Up to 2048 | Approx. 200 | Brightness, pattern selection and pixel quantity setting | Up to 20m | Download |
| SP107E | Bluetooth | LED Chord | Up to 960 | 180 standard effects plus music effects | Music synchronization, pixel and segment setting | Up to 20m | Download |
| SP108E | Wi-Fi AP / STA | LED Shop | Up to 2048 | 180 effects plus 8 adjustable-color effects | Wi-Fi control, pixel/segment setting and image-to-effect DIY | Up to 30m | Download |

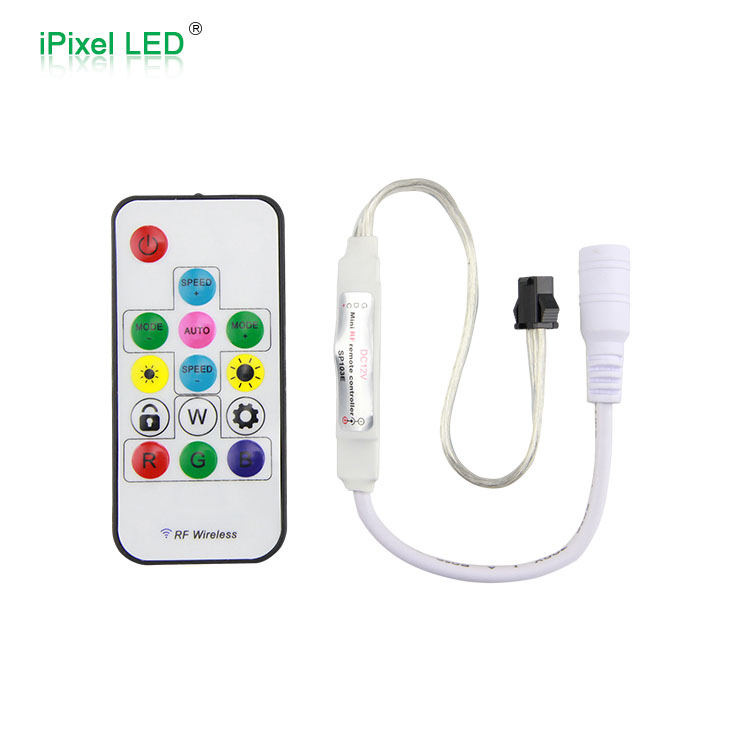

SP103E uses a handheld RF remote and supports brightness, speed, color, mode, RGB sequence and pixel-number adjustment. The manual lists approximately 300 patterns and a maximum of 2048 pixels.

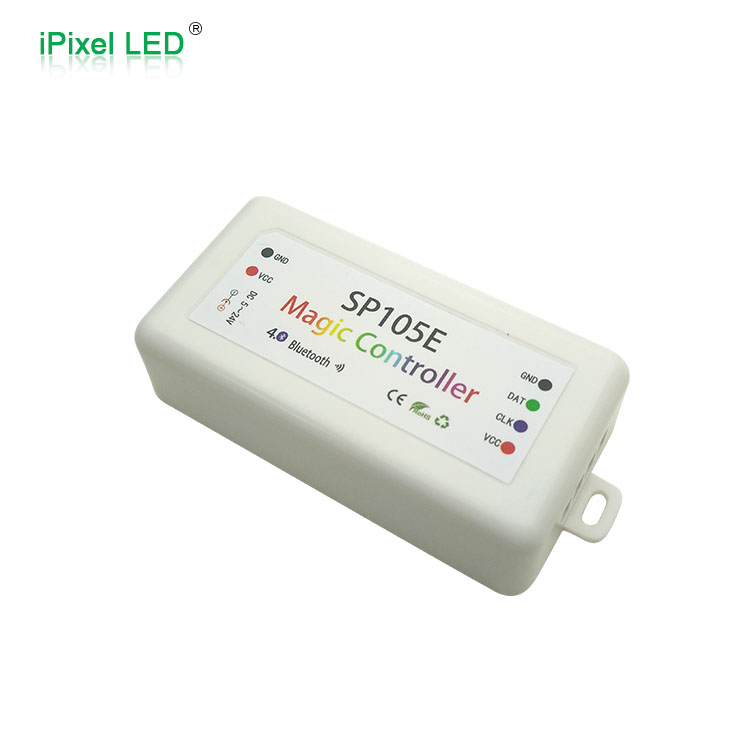

SP105E is the standard Bluetooth model, supporting up to 2048 pixels and approximately 200 patterns through the Magic-LED App.

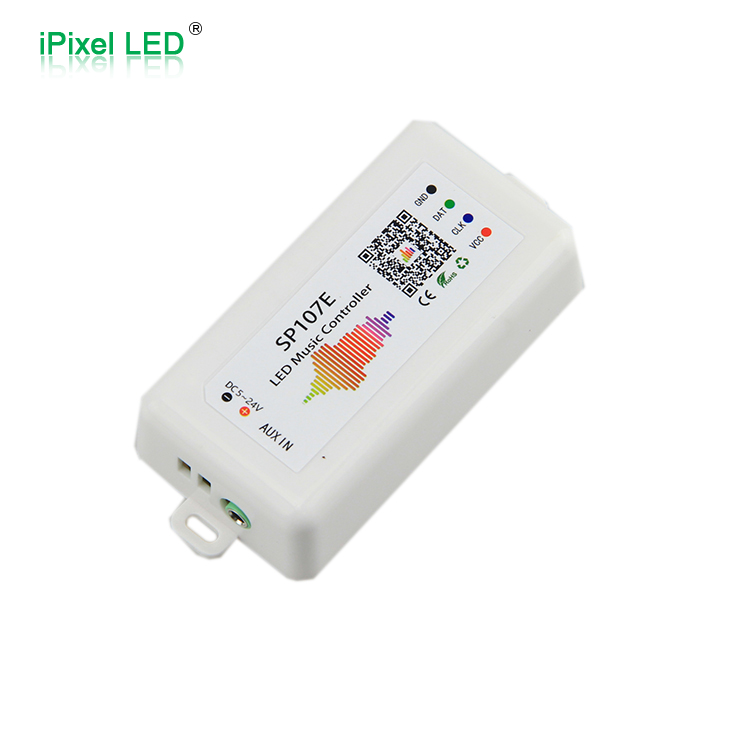

SP107E is designed for music-responsive lighting. It includes 18 LED-strip music effects, 30 LED-matrix music effects and 180 non-music effects, with both built-in microphone and AUX audio input.

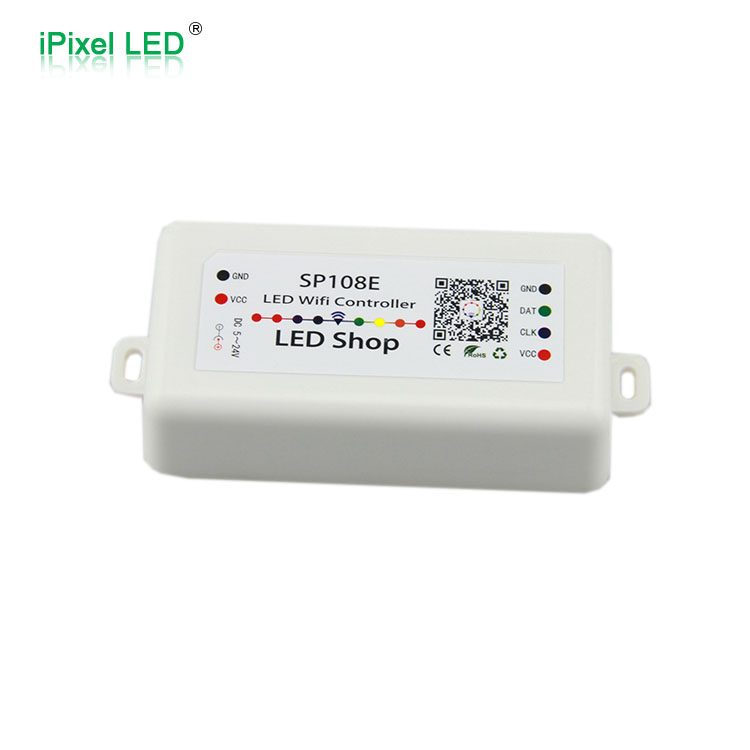

SP108E supports Wi-Fi AP direct connection and STA local-network operation. It provides up to 2048-pixel control and image-based custom-effect creation through the LED Shop App.
How to Choose
| Project Requirement | Recommended Model |
|---|---|
| Simple control without a mobile phone | SP103E |
| RF handheld remote required | SP103E |
| Standard Bluetooth App control | SP105E |
| Up to 2048 pixels through Bluetooth | SP105E |
| Music-responsive LED strip | SP107E |
| Built-in microphone required | SP107E |
| AUX audio input required | SP107E |
| LED matrix music effects | SP107E |
| Wi-Fi direct connection without a router | SP108E AP Mode |
| Control through a local Wi-Fi network | SP108E STA Mode |
| Image-based customized effects | SP108E |
| Up to 2048 pixels through Wi-Fi | SP108E |
FAQ
No. These controllers are intended for addressable LED products containing digital control ICs. Conventional non-addressable RGB, RGBW or RGB+CCT strips require PWM controllers.
No. The series supports multiple commonly used one-wire and two-wire IC protocols, but the exact LED IC must be confirmed before ordering.
Yes. A compatible DC constant-voltage power supply is required. The power-supply voltage must match both the controller and the LED product.
