The WF300 is designed for SPI addressable LED strips using a compatible single-data-line or data-plus-clock IC protocol.
WF300 Wi-Fi & RF Addressable LED Controller
WF300 Wi-Fi & RF Addressable LED Controller

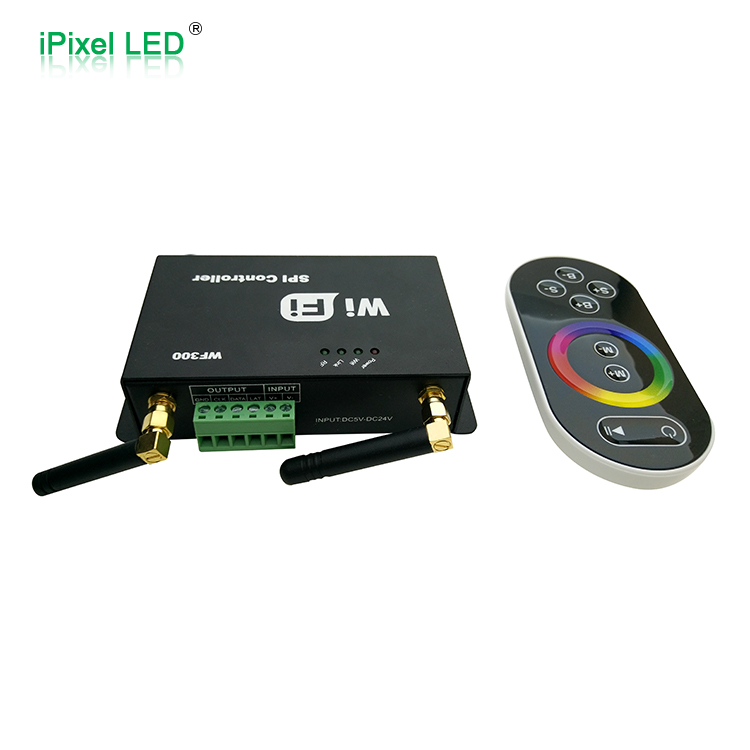

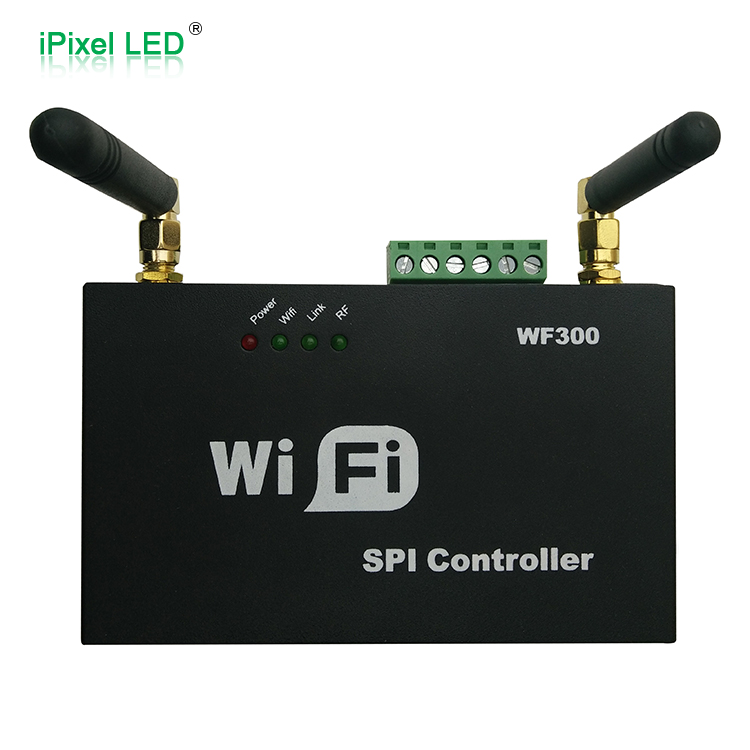

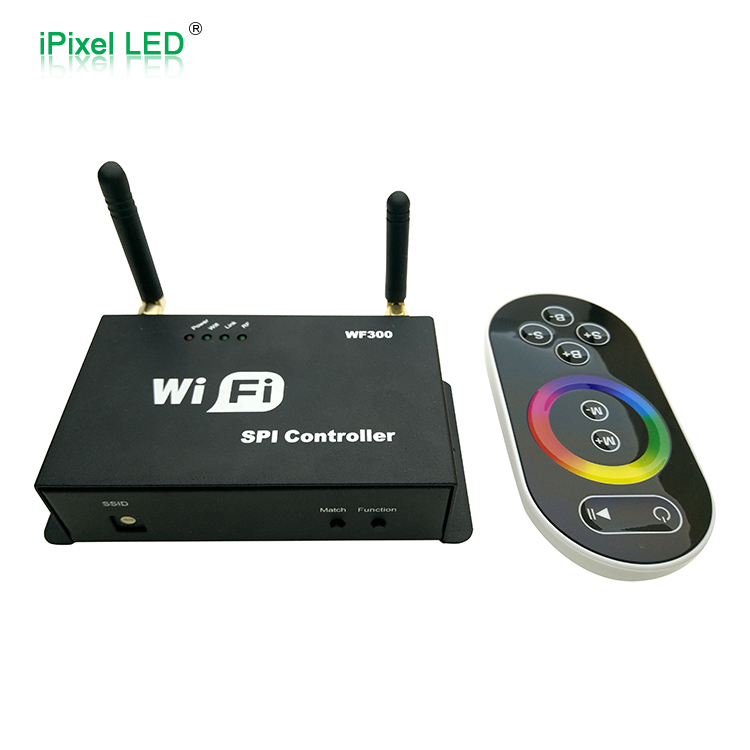

The WF300 is a wireless SPI controller designed for addressable LED strips and pixel lighting products. It can be operated through the Magic Color mobile App or the supplied RF touch remote, allowing users to select colors, effects, brightness and playback speed.
The controller supports both single-data-line and data-plus-clock SPI signals. Pixel quantity, LED IC type and RGB sequence can be configured through the App to match different addressable LED products.
Product Specification Table
| Parameter | Specification |
|---|---|
| Product Name | Wi-Fi & RF Addressable LED Controller |
| Model No | WF300 |
| Controller Type | SPI / Pixel LED Controller |
| Control Methods | Wi-Fi Mobile App / RF Touch Remote |
| Mobile App | Magic Color |
| Working Voltage | DC5–24V |
| Signal Output | SPI Digital Signal |
| Signal Types | Single Data Line / Data + Clock |
| Maximum Pixel Quantity | 1,024 Pixels |
| Pixel Setting Range | Pixel Setting Range |
| Supported IC Options | 10 IC Types Listed in Current Manual |
| Built-In Effects | 83 Modes |
| Static Colors | 7 Basic Static Modes plus Touch Color Selection |
| Brightness Adjustment | 32 Levels |
| Speed Adjustment | 99 Levels |
| Manual-Listed Output Current | 4A × 3 |
| Wi-Fi Control Range | Over 50m Indoors / Over 100m Outdoors, under stated conditions |
| RF Remote Distance | Approx. 30m |
| Working Temperature | -20°C to +60°C |
| Product Size | 107 × 65 × 30mm |
| RF Remote Power | 3 × AAA Batteries |
| Housing | Metal Enclosure |
| Installation Environment | Dry Indoor Location |
FAQ
No. Conventional RGB and RGBW strips without digital ICs require a PWM LED controller.
Yes. The supplied RF touch remote can control power, pause, lighting modes, brightness, speed and static colors.
Select the WF300 model, LED IC type, RGB sequence and total pixel quantity before operating the connected LED strip.
