DE2008 is suitable for LED strips up to 20mm width, including wide LED strips or double-row LED strips for high-brightness linear lighting applications.

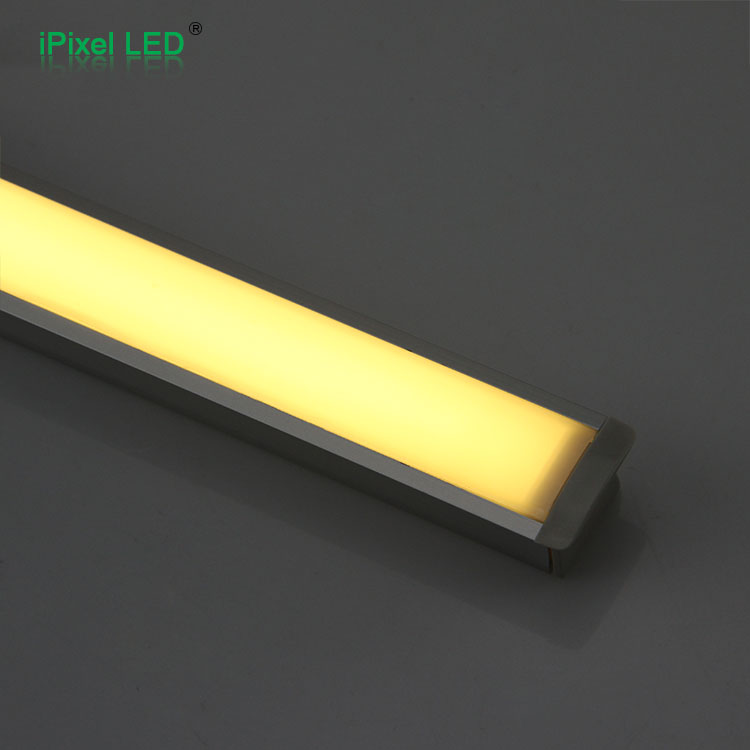

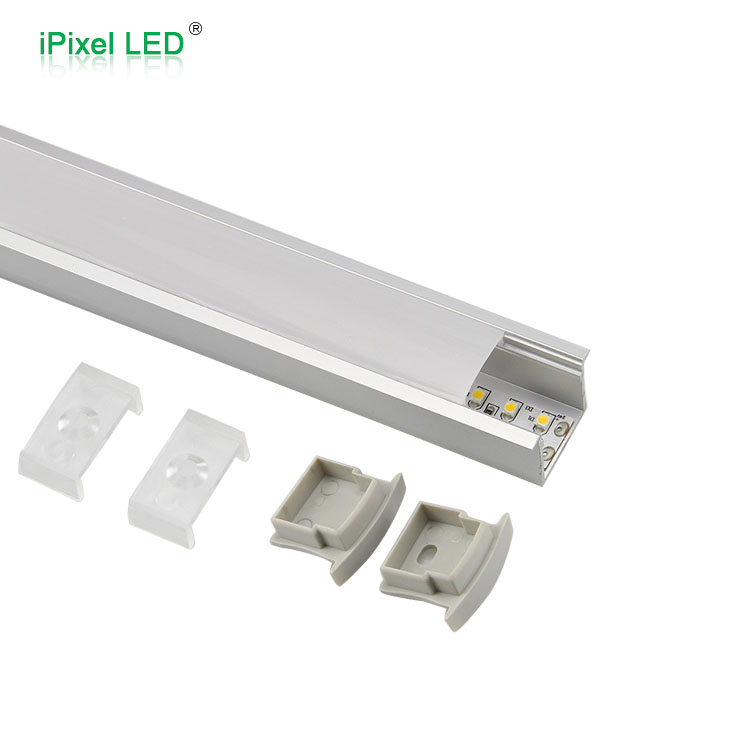

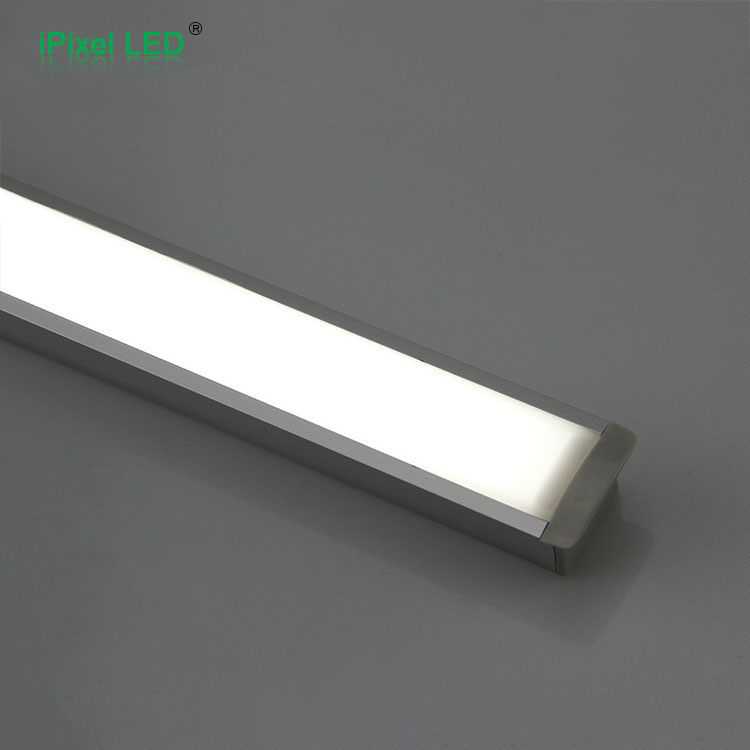

DE2008 Aluminum LED Profile
Material: AL6063-T5
Surface: Anodized
PC Cover: Diffuser/Transparent
LED Strip width: 20mm(Max)
Recommend LED Strip type: 2x60leds/m (5050) 2x120leds/m(3528)

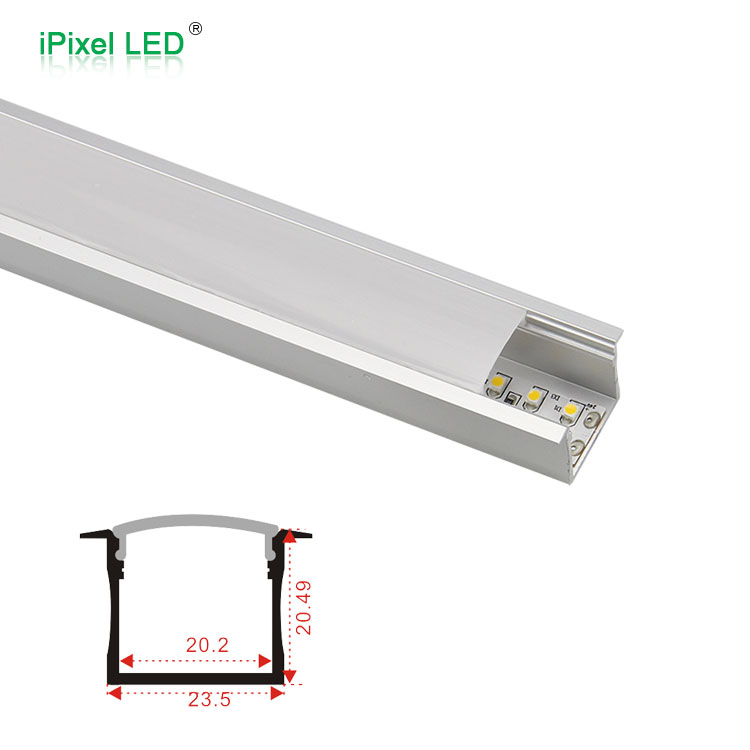

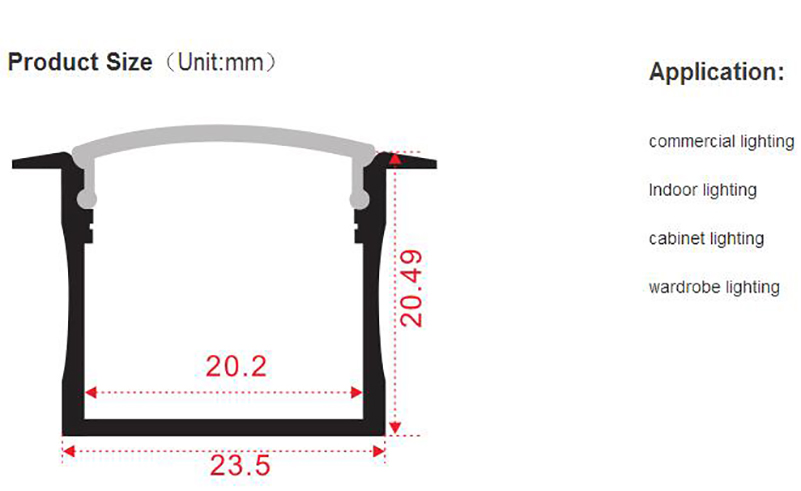

Bar Size: W 23.5xH 20.5mm
Bar Length: 100-3000mm
Product Description
1.These LED aluminum channel and diffuser solutions are perfect for back lighting and edge lighting applications.
2.Aluminum U channel is a versatile way to create the perfect LED light installation for any situation.
3.It is rugged, durable, and also works well as an LED heatsink, thereby extending the life of your LED light strips.
4.We offer a vast array of shapes and sizes for extruded aluminum channel, allowing you to create everything from flush mounted accent lighting to hanging LED fixtures.
5.When combined with the interchangeable accessories and a bit of creativity.
6.And DE2007 is different, this aluminum more than two ears, easy to install, even if the groove is not deep into the deep into the trap.

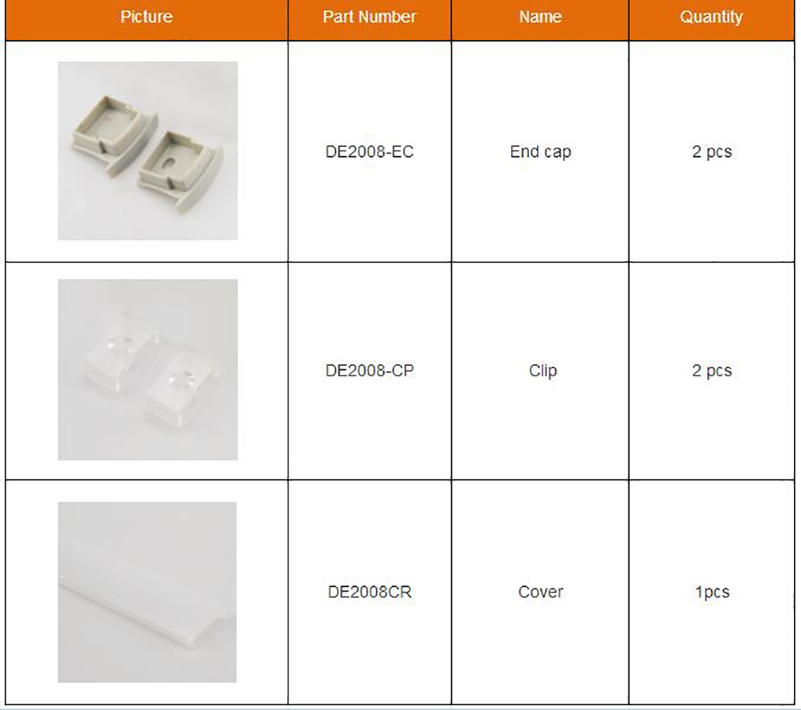

Accessories：
Related Items
Vending & Kiosk Lighting – AC Safety, Anti-Vibration Harness & Serviceability
Sauna & Spa Lighting – High Heat/Humidity, Safe Low Voltage & Sealing
Slot Machine Lighting – EMI/Signal Integrity, Serviceable Mounting & Long-Run Stability
Arcade & Gaming Machine Lighting – SPI RGB/Addressable Strips, Robust Solder Pads & UL + CE Compliance
FAQ
DE2008 has a 23.5 × 20.5mm deep aluminum body with a wider diffuser area, helping create a softer and more uniform lighting effect.
Compared with DE2007, DE2008 has an extended side edge / mounting lip design, which makes it easier to install in shallow grooves or recessed applications.
DE2008 is commonly used for back lighting, edge lighting, cabinet lighting, display lighting, commercial lighting, and indoor recessed linear lighting, especially where a deeper profile and cleaner installation are required.
