DE2009 is suitable for LED strips up to 20mm width, including wide LED strips or double-row LED strips for high-brightness linear lighting applications.

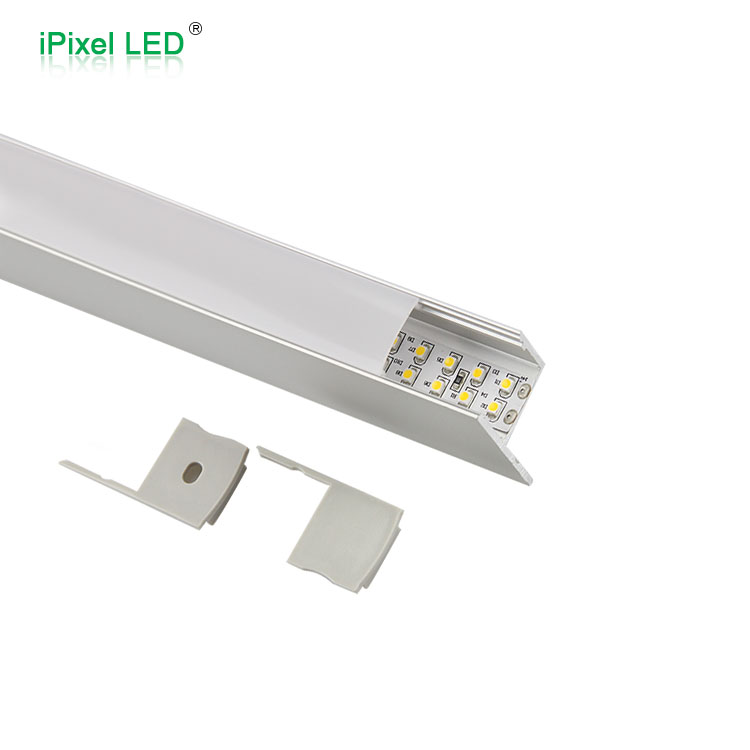

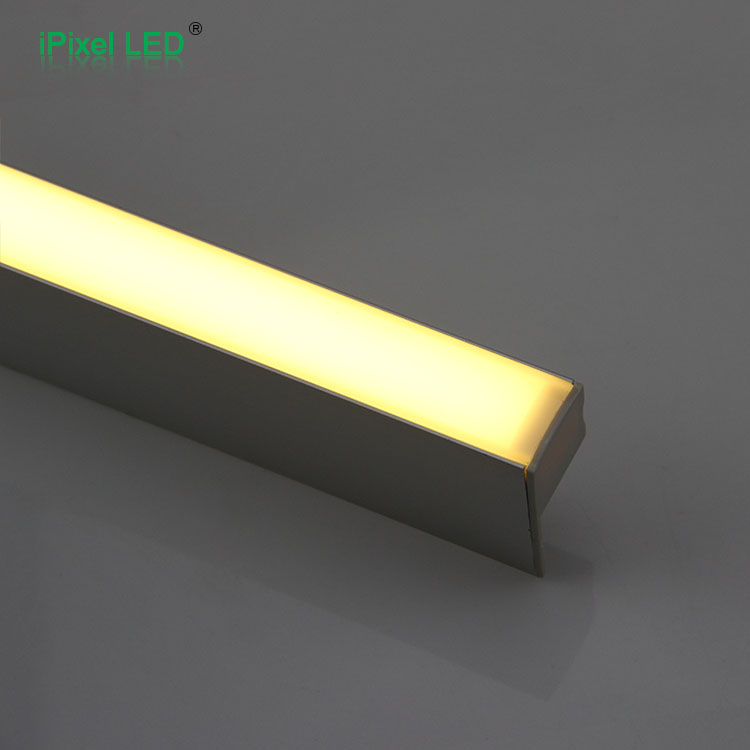

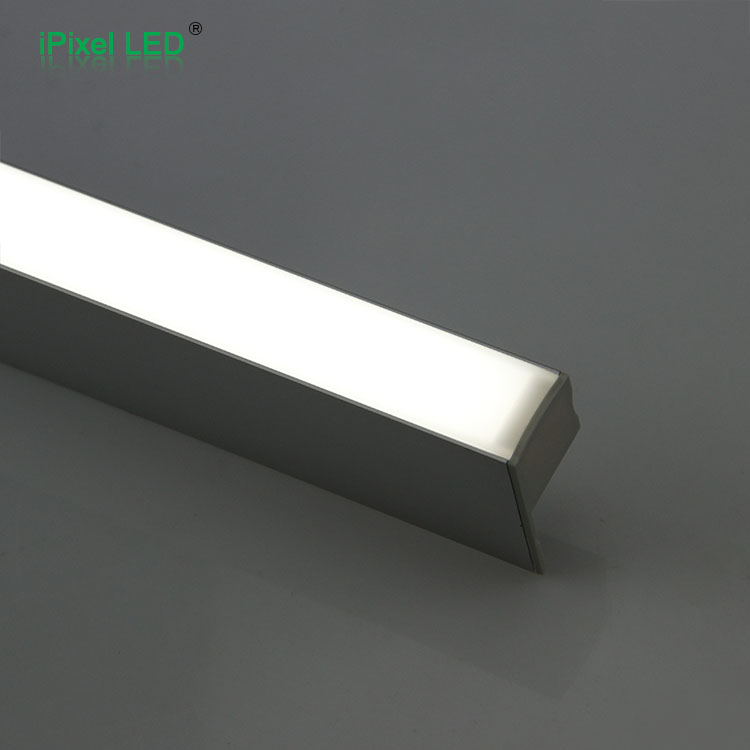

DE2009 Aluminum LED Profile
Material: AL6063-T5
Surface: Anodized
PC Cover: Diffuser/Transparent
LED Strip width: 20mm(Max)
Recommend LED Strip type: 2x60leds/m (5050) 2x120leds/m(3528)

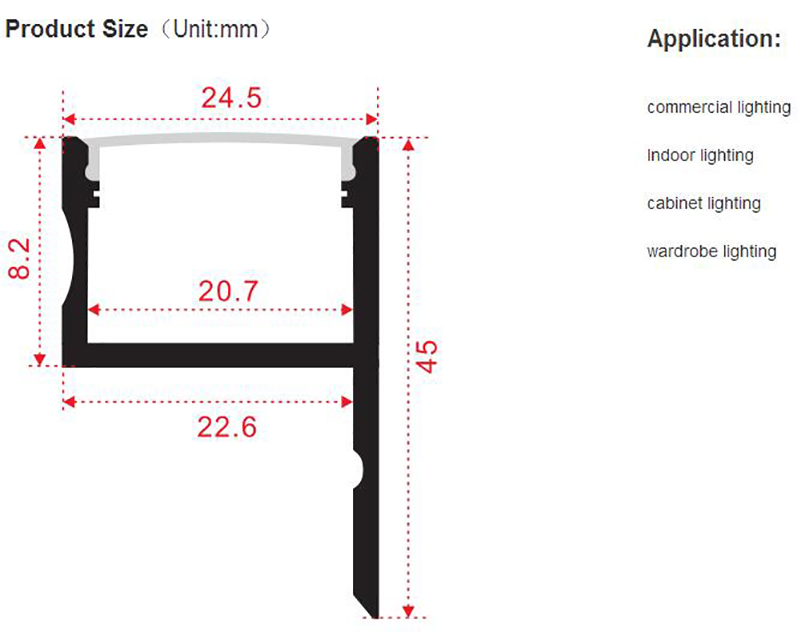

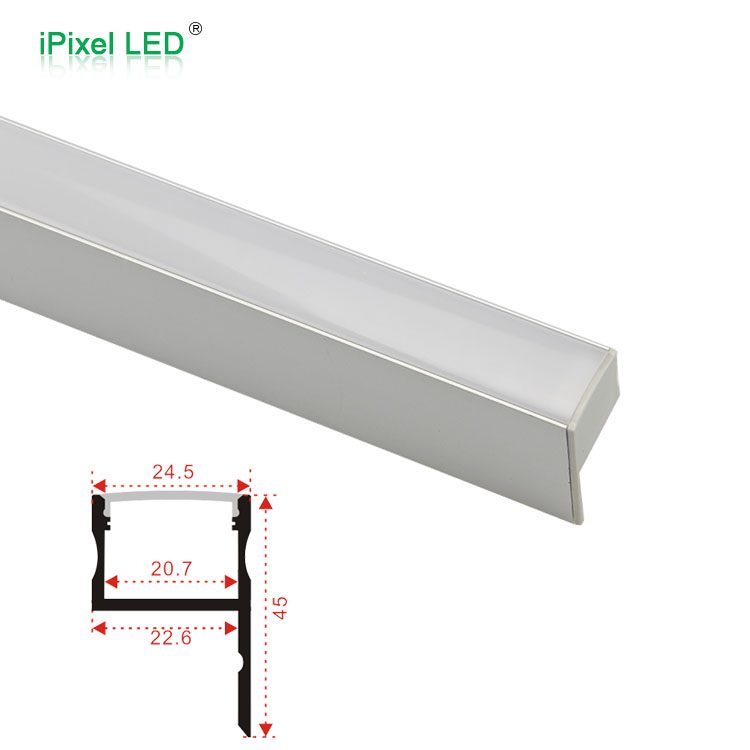

Bar Size: W 24.5xH 45mm
Bar Length: 100-3000mm
Product Description
1.These LED aluminum channel and diffuser solutions are perfect for back lighting and edge lighting applications.
2.Aluminum U channel is a versatile way to create the perfect LED light installation for any situation.
3.It is rugged, durable, and also works well as an LED heatsink, thereby extending the life of your LED light strips.
4.We offer a vast array of shapes and sizes for extruded aluminum channel, allowing you to create everything from flush mounted accent lighting to hanging LED fixtures.
5.When combined with the interchangeable accessories and a bit of creativity.
6.The aluminum profile ends out,Longer than the other end, better fix.

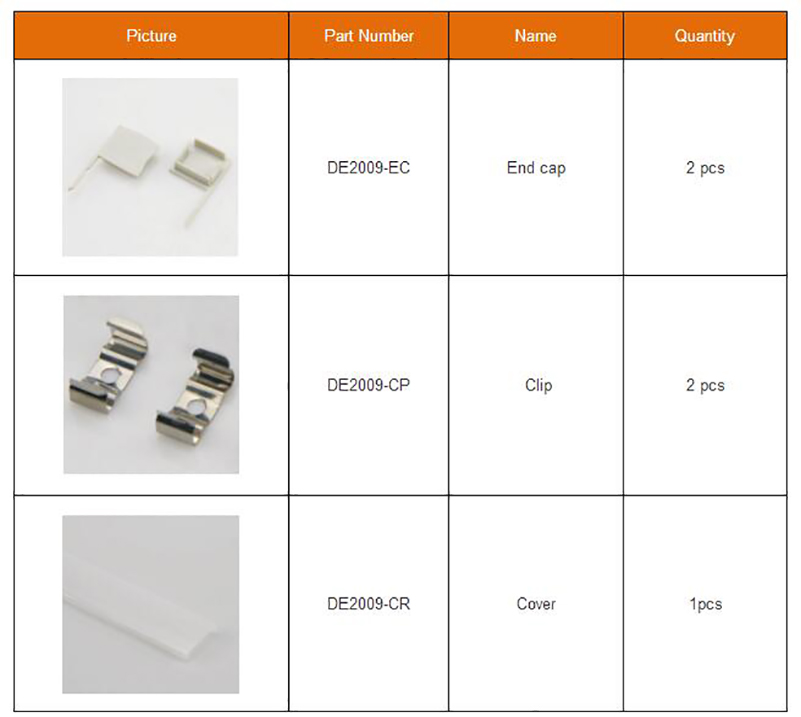

Accessories：
Related Items
Vending & Kiosk Lighting – AC Safety, Anti-Vibration Harness & Serviceability
Industrial Cabinet Lighting – High-Temp, Oil/Solvent Resistance & Flicker-Free Operation
Arcade & Gaming Machine Lighting – SPI RGB/Addressable Strips, Robust Solder Pads & UL + CE Compliance
Refrigeration Lighting – Low-temp, Condensation & Cleaning Reliability
FAQ
DE2009 has a deeper 24.5 × 45mm aluminum body, which provides more space for light diffusion and helps create a cleaner, more uniform illuminated line.
The extended side structure helps improve mounting stability and fixing strength, making it suitable for applications where the profile needs to be installed firmly into a groove or structural edge.
DE2009 is commonly used for back lighting, edge lighting, cabinet lighting, display lighting, commercial lighting, and recessed linear lighting, especially where a deeper profile and strong installation support are required.
