Calculate the total power consumption of all connected LED products and reserve approximately 20% capacity. For example, a 48W LED load should normally use a 60W or higher driver.

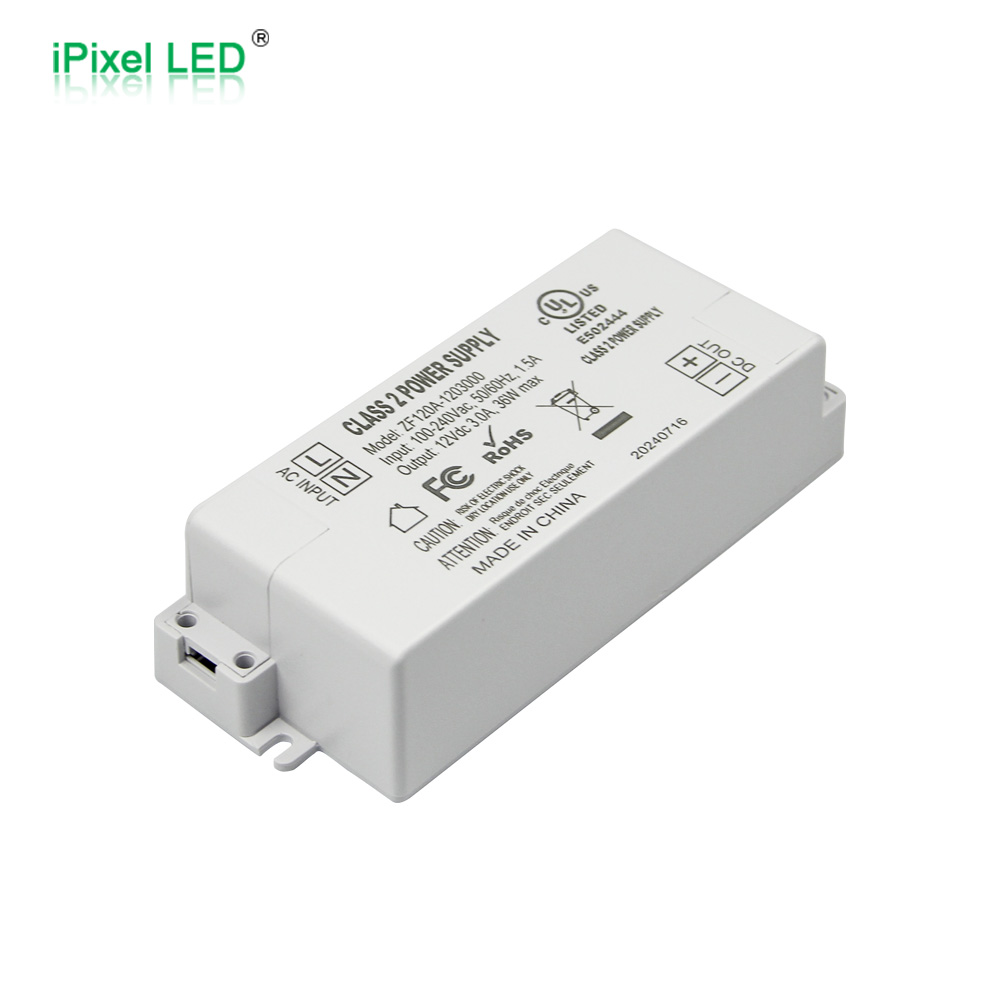

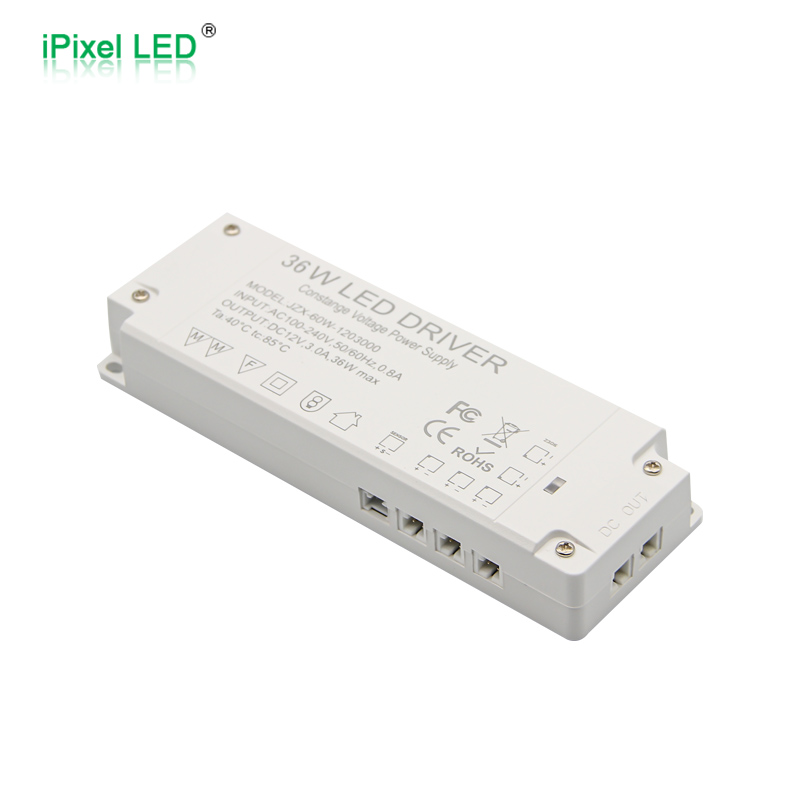

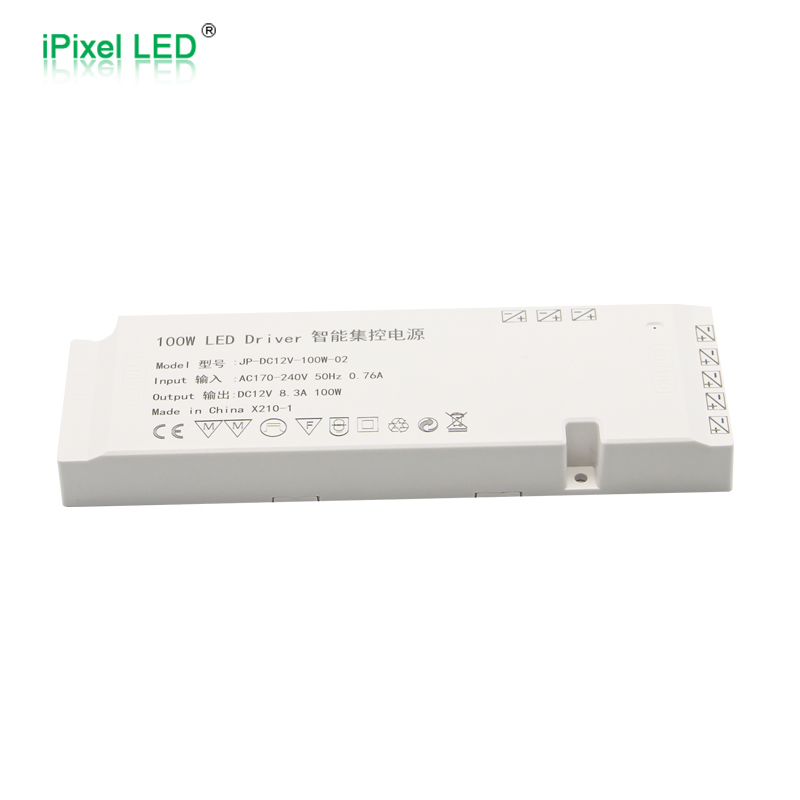

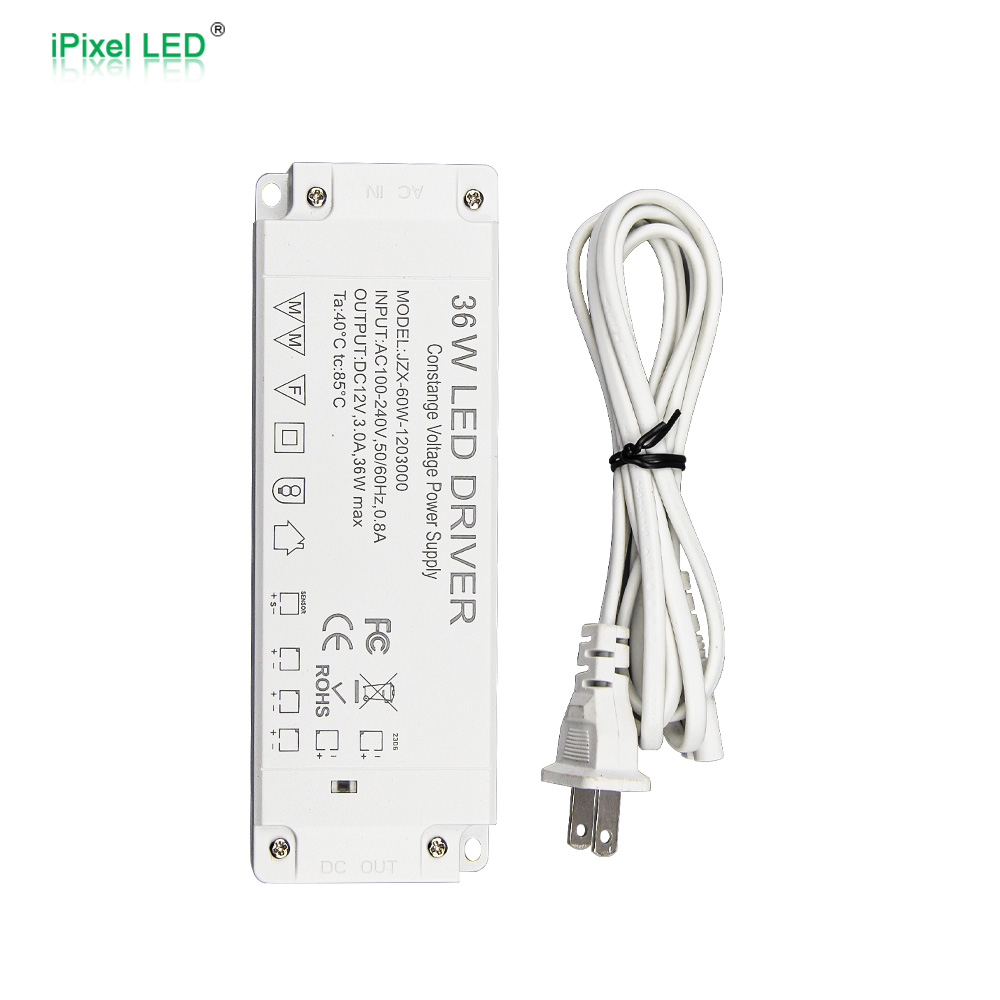

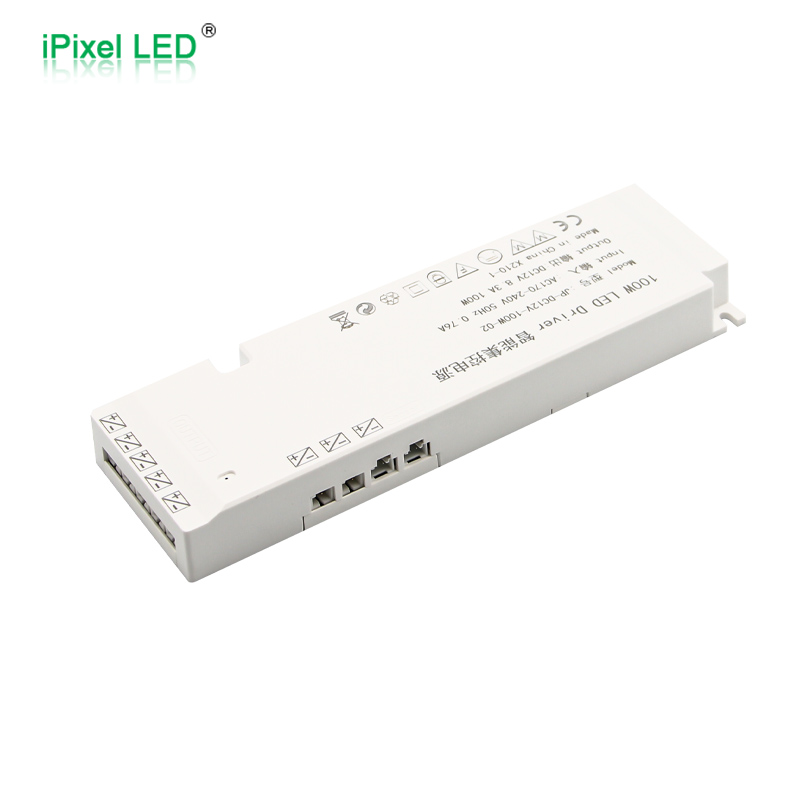

36W/60W/100W/150W Cabinet Driver Series
36W/60W/100W/150W Cabinet Driver Series
This slim constant-voltage LED driver series is designed for indoor LED lighting systems where
installation space is limited. With a housing height of only 16.5mm, the drivers can be concealed
inside cabinets, display fixtures, furniture panels and other compact structures.
The series covers power ratings from 36W to 150W, with both 12V and 24V output options.
High power factor, efficient power conversion and a five-year warranty make the series suitable for
OEM lighting systems and repeated production projects.
Product Series Specification Matrix
| Power | Product Model | Input Volt. | Output Volt. | Output Current | IP grade | PF | Product size （L*W*H） | Unit Weight | Efficiency | Warranty | Certification | Unit Parking | Carton size |
| 36W | PV-12036H-P2C | AC200-240V | DC12V | 3A | IP20 | ≥0.95 | 160*60*16.5mm | 240g | ≥88% | 5Years | CE/CB RoHS | 60pcs/CTN | SIZE: 355*235*215mm |
| PV-24036H-P2C | DC24V | 1.5A | ≥89% | ||||||||||
| 60W | PV-12060H-P2C | AC200-240V | DC12V | 5A | IP20 | ≥0.95 | 200*65*16.5mm | 300g | ≥90% | 5Years | CE/CB RoHS | 40pcs/CTN | SIZE: 435*235*160mm |
| PV-24060H-P2C | DC24V | 2.5A | |||||||||||
| 100W | PV-12100H-P2C | AC200-240V | DC12V | 8.33A | IP20 | ≥0.95 | 200*65*16.5mm | 320g | ≥90% | 5Years | CE/CB RoHS | 40pcs/CTN | SIZE: 435*235*160mm |
| PV-24100H-P2C | DC24V | 4.17A | |||||||||||
| 150W | PV-24150H-P2C | AC200-240V | DC24V | 6.25A | IP20 | ≥0.95 | 200*65*16.5mm | 320g | ≥91% | 5Years | CE/CB RoHS | 50pcs/CTN | SIZE: 365*245*225mm |
FAQ
Yes. Several LED strips or rigid LED bars can share one driver if they use the same voltage and the combined power does not exceed the recommended load.
The voltage must match the LED product. For longer cable runs or larger lighting systems, 24V is generally preferred because it carries lower current for the same power and helps reduce voltage drop.
Yes. Its 16.5mm slim housing is designed for concealed cabinet and furniture installation. Adequate ventilation and access for maintenance should still be provided.
