N006096BA3SF is an SPI addressable RGB version. N006120TB3PZ and N006120TC3PZ are RGB arc versions using differential parallel PWM control.
6×12 RGB LED Neon Flex Series
The 6×12 RGB LED Neon Flex Series is designed for dynamic RGB contour lighting, signage lighting, architectural outline lighting, and indoor/outdoor decorative lighting applications.
This series includes two structure versions: single-sided side-view RGB SPI neon flex and arc side-view RGB PWM neon flex. The single-sided version supports individually addressable SPI control, while the arc version uses a differential parallel PWM signal protocol with enhanced anti-interference performance. Both versions use high-transmittance silicone material to provide uniform, soft, dot-free lighting.
DC5V/DC12V96/120LEDs/m6mm WidthRGBIP65/IP67
Overview & Key Features
Series Overview
This series is based on a compact 6×12mm silicone neon flex structure. It is suitable for projects that require RGB dynamic lighting effects, curved installation, waterproof protection, and customized cable outlet solutions.
The N006096BA3SF version is suitable for pixel-level RGB effects, where each LED can be individually controlled through SPI signal. The N006120TB3PZ / N006120TC3PZ arc versions are more suitable for RGB color-changing applications where differential PWM control and stronger signal stability are required.
Key Features
- 6×12mm compact neon flex profile
- RGB color-changing lighting
- Single-sided version and arc version available
- SPI addressable control option for pixel-level dynamic effects
- Differential parallel PWM control option for stable RGB project lighting
- Uniform dot-free silicone light output
- R≥50mm bending reference shown in the product drawings
- Straight outlet and side outlet options
- Suitable for signage, indoor/outdoor decoration, and architectural contour applications
- UL / CE / RoHS marks shown in original specifications
- IP67 shown on cover pages; final IP label should be confirmed before publishing
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Control | PCB Width | CCT | Cut | Lumen/m | Version |
|---|---|---|---|---|---|---|---|---|---|
| N006096BA3SF | 96 pcs/m | DC5V | 19W/m | SPI / WS2811 addressable RGB | 6mm | RGB: R 620–630nm / G 520–530nm / B 460–470nm | 31.25mm | R: 15.5lm / G: 48lm / B: 10.5lm | N0612 Single-sided |
| N006120TB3PZ | 120pcs/m | DC12V | 14W/m | Differential parallel PWM RGB | 6mm | RGB: R 620–630nm / G 520–530nm / B 460–470nm | 31.25mm | R: 19.6lm / G: 48.2lm / B: 10.6lm | N0612 Arc |
| N006120TC3PZ | 120pcs/m | DC24V | 14W/m | Differential parallel PWM RGB | 6mm | RGB: R 620–630nm / G 520–530nm / B 460–470nm | 62.5mm | R: 19.6lm / G: 48.2lm / B: 10.6lm | N0612 Arc |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Pixel-level RGB animation or addressable effects | N006096BA3SF |
| DC5V SPI control system | N006096BA3SF |
| RGB color-changing effect without pixel-by-pixel control | N006120TB3PZ / N006120TC3PZ |
| Shorter DC12V arc RGB installation | N006120TB3PZ |
| Longer DC24V arc RGB installation with better voltage-drop control | N006120TC3PZ |
| Project requires stronger signal anti-interference ability | N006120TB3PZ / N006120TC3PZ |
| Installation needs left/right side bending | N006096BA3SF Single-sided |
| Installation needs arc-style bending direction | N006120TB3PZ / N006120TC3PZ Arc |
| Architectural outline / signage / decorative contour lighting | Both versions can be selected according to control system |

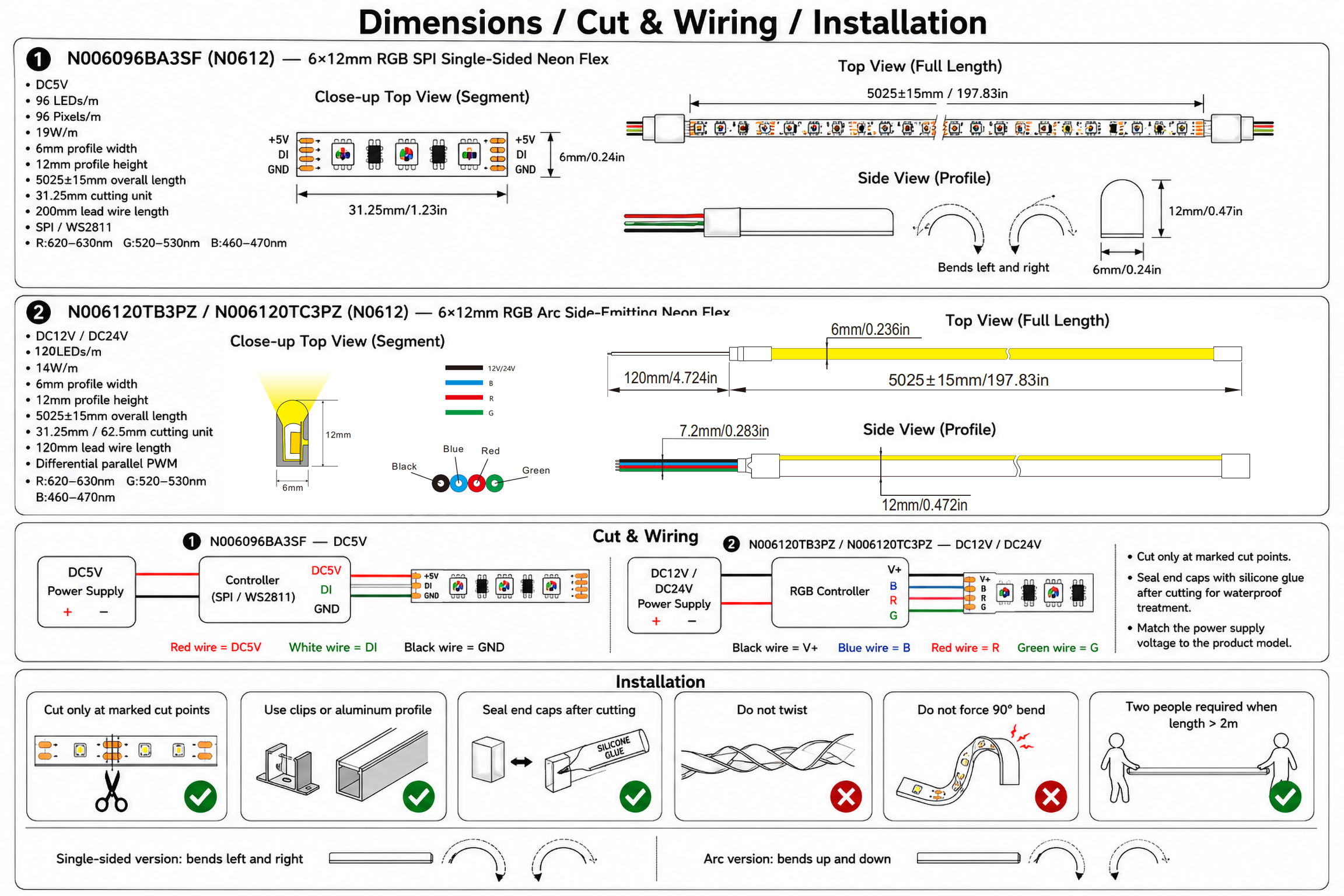

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC5V / DC12V / DC24V | N006096BA3SF is DC5V; N006120TB3PZ is DC12V; N006120TC3PZ is DC24V. |
| LED Type | SMD2835 / SMD4040 | N006096BA3SF uses SMD2835; N006120TB3PZ and N006120TC3PZ use SMD4040. |
| Color Type | RGB | This merged series is positioned as an RGB neon flex family. |
| Color Range | R: 620–630nm / G: 520–530nm / B: 460–470nm | Same RGB wavelength range is shown in the uploaded specifications. |
| PCB Width | 6mm | The product structure is 6×12mm. 建议最终表格写成 PCB / Profile Width，避免客户理解成裸 PCB 宽度。 |
| Power | 14W/m / 19W/m | N006096BA3SF is 19W/m; N006120TB3PZ and N006120TC3PZ are 14W/m. |
| Control | SPI / WS2811 addressable RGB; Differential parallel PWM RGB | N006096BA3SF is SPI addressable; N006120TB3PZ / TC3PZ use differential parallel PWM signal protocol with built-in anti-interference module. |
| IP Rating | IP67 / IP65 label confirmation required | Cover pages show IP67. Some product label/packaging information shows IP65 for the arc version, so the final published IP rating must be confirmed before release. |
| Length | 3025±15mm / 5025±15mm / 5m roll / custom length | N006096BA3SF parameter page shows 3025±15mm standard length and 5m max length; N006120TB3PZ / TC3PZ show 5025±15mm standard length and 10m max length. |
| Connector | 3PIN connector / 4-wire RGB cable / straight outlet / side outlet | N006096BA3SF uses DC5V, DI and GND signal definition; arc RGB version uses 12V/24V, R, G, B wiring. |
| Mounting | Stainless steel clip / aluminum profile / surface mounting / embedded mounting | Use clips or aluminum profiles. For length over 2m, two-person installation is recommended. |
| Packing | Standard carton packing / single carton packing / wooden case packing | Product label, voltage & input line identification label, box label and QC stamp are included in the packaging section. |
Related Items
Range Hood Lighting – Heat/Grease/Chemical Resistance & Safe Integration
Slot Machine Lighting – EMI/Signal Integrity, Serviceable Mounting & Long-Run Stability
Arcade & Gaming Machine Lighting – SPI RGB/Addressable Strips, Robust Solder Pads & UL + CE Compliance
Refrigeration Lighting – Low-temp, Condensation & Cleaning Reliability
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
Choose N006096BA3SF, because it supports SPI signal and individually addressable control.
Choose N006120TC3PZ, because it is the DC24V arc RGB version.
N006096BA3SF is 31.25mm. N006120TB3PZ is 31.25mm. N006120TC3PZ is 62.5mm.
