Calculate the total LED load and reserve approximately 20% capacity. For example, a 48W LED load normally requires a power supply rated at 60W or above.

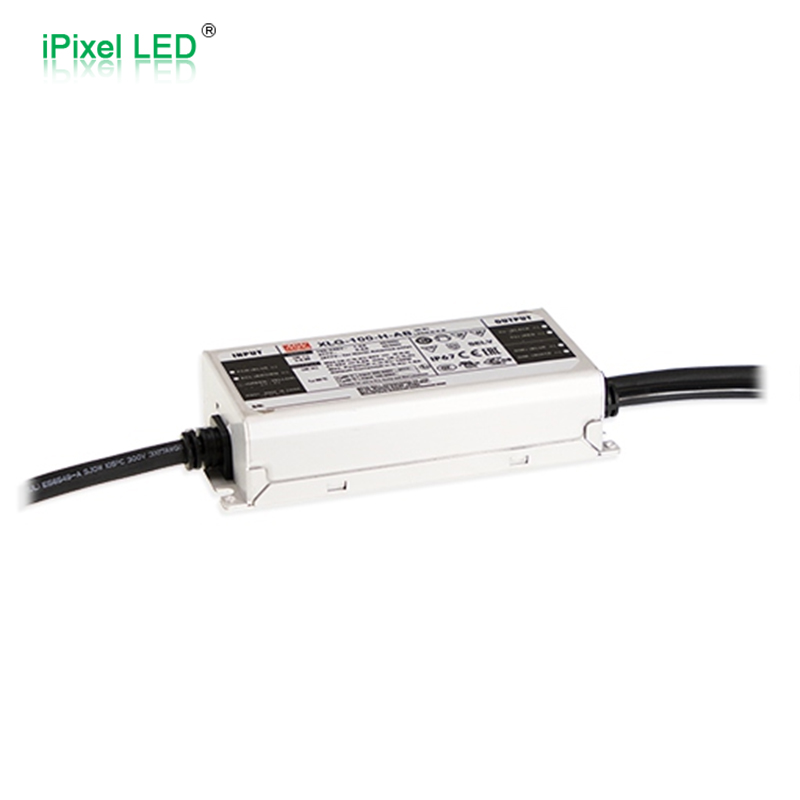

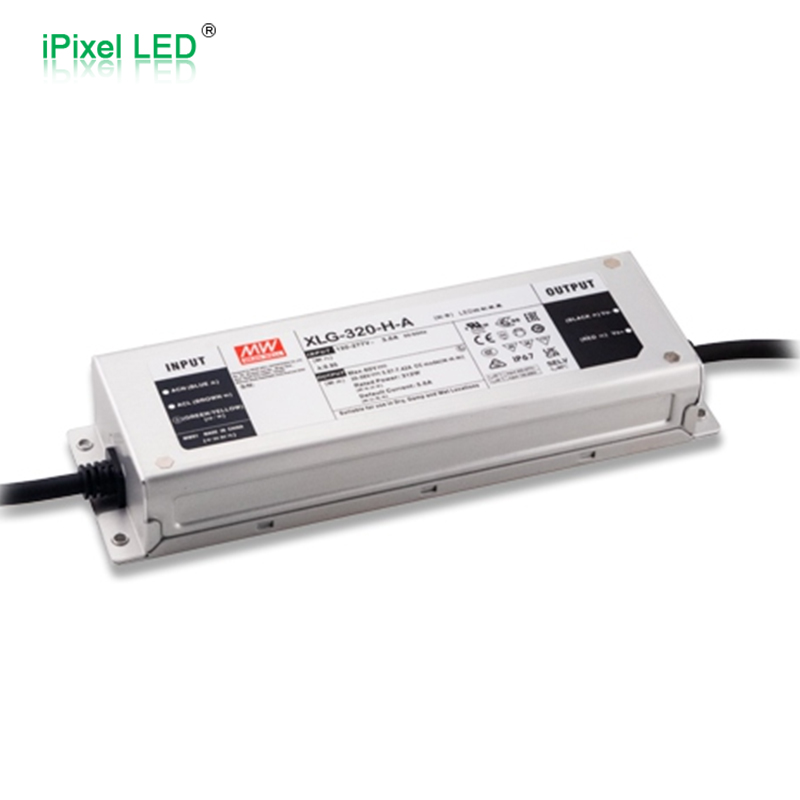

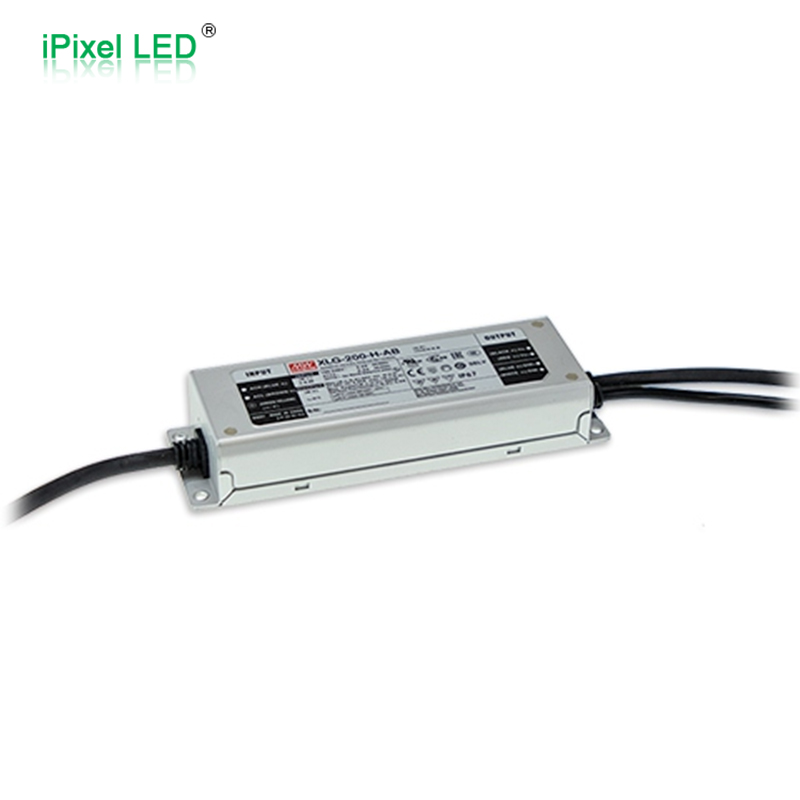

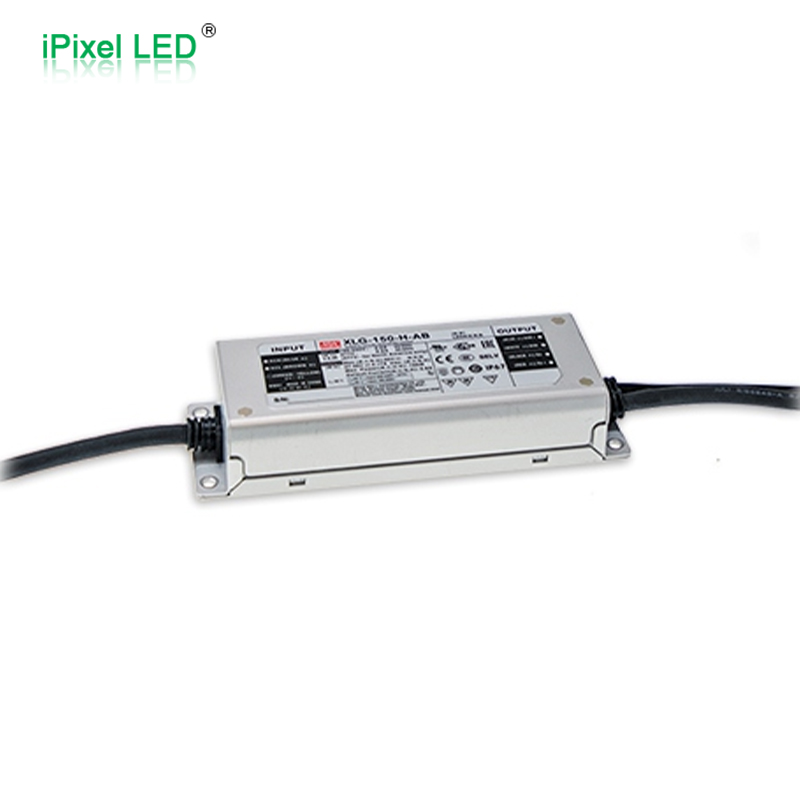

XLG Series 100~320W
XLG Series 100~320W
Wide input range 100~305VAC(Class I)
Full power output at 70~100% Constant power mode operation
Metal case with IP67, suitable for outdoor application
LVLE(H type),Class 2(24V)power unit
Surge protection with 6KV/4KV (10KV/6KV optional)
3 in 1 dimming function (Dim to off and Isolation design)
India (EESL) version with Input Over Voltage Protection can
survive input voltage stress of 440Vac for 48 hours
Protection functions: OVP/SCP/OCP/OTP
Comply with UL Class P
Life time >50,000 hrs. and 5 years warranty
FAQ
Yes. Multiple LED products can share one constant-voltage power supply if their voltage is the same and the combined load does not exceed the recommended capacity. A distribution box or customized wiring harness may be used.
Yes. We can provide regional input plugs, bare-wire input, DC connectors, locking connectors and customized cable assemblies according to the equipment design.
Not necessarily. Certification, input cable, plug, housing and rated output may differ by model. The required market and certification should be confirmed before selection.
